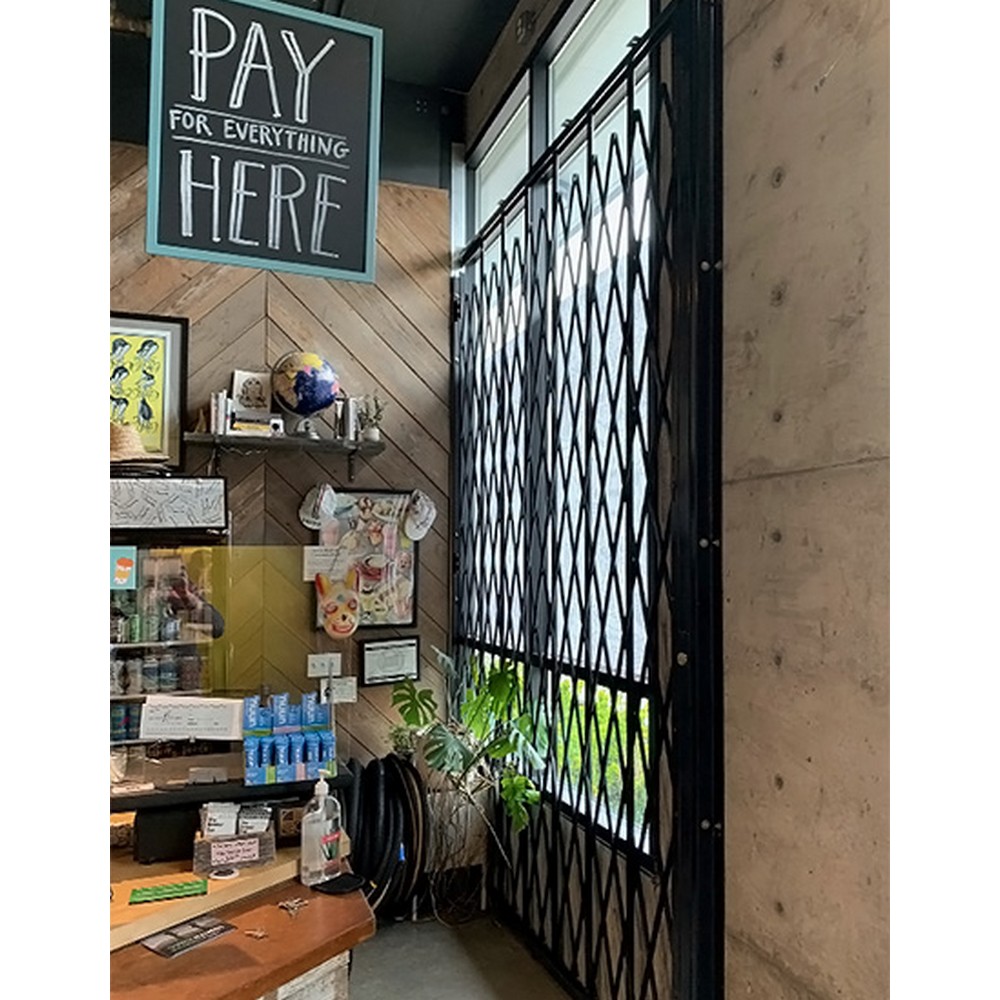

The HYDS670 storefront security gate from Illinois Engineered Products is a full-width, single-gate barrier designed to deter theft and control access in storefronts or warehouse frontages. When deployed, it creates a continuous barrier across the opening, with a folding top frame and a consistent lattice and vertical-bar arrangement that supports quick setup and smooth expansion or retraction. The unit is constructed for rugged service and is suitable for both indoor and outdoor use, with resistance to heat, rain, snow, and common industrial cleaners and chemicals. The folding top frame style and fixed bottom track provide stable alignment as the gate moves, while a combination of vertical bars riding in tracks and a scissor lattice offers broad coverage and an increased deterrent effect. The gate ships unassembled and includes a padlock hasp as a standard locking option, with an integrated cylinder lock available as an option, allowing a chosen level of access control. The HYDS670 uses galvanized steel with a 1-1/4 inch by 5/8 inch C-channel frame and 3/8 inch by 3/4 inch 14-gauge lattice, reinforced by zinc-plated rivets for durable assembly. A 1-7/8 inch by 1-3/8 inch box-channel top and bottom track supports reliable operation, whether the gate is expanded or retracted, and allows the unit to be mounted in place in facilities where perimeter security is needed.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor and outdoor use; resistant to heat, rain, snow, and harsh cleaners
- Top & bottom track styles with 6' W x 7' H dimensions
- Galvanized steel finish; 14 gauge structural components
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for easier handling
- Width:
- 6'
- Height:
- 7'
- Max Width:
- 6'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 105.0 lbs. ea.
- Package Size:
- Each
