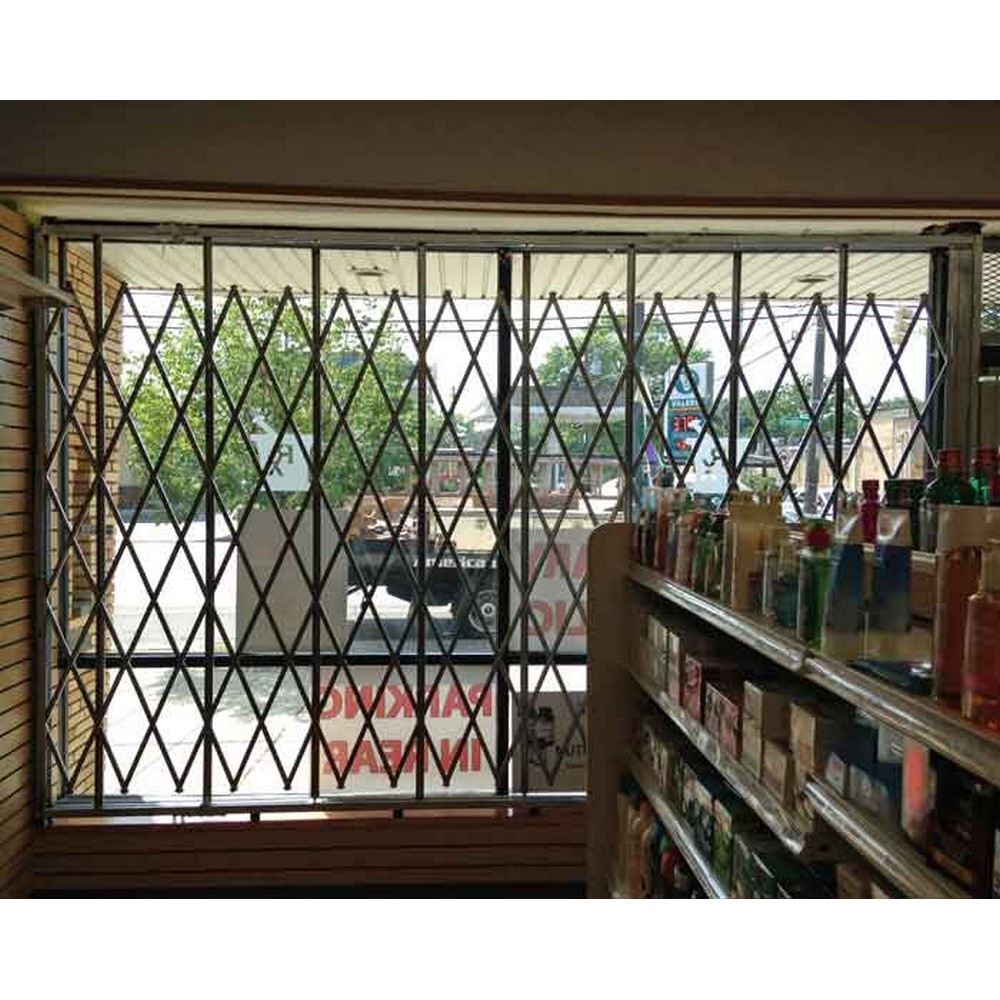

The Illinois Engineered Products HYDP1670 storefront security gate is a full-width, two-sided gate designed to section off warehouse and storefront areas quickly and effectively. With a 16' wide by 7' high footprint, this pair of gates uses a combination of vertical bars that ride in tracks and a folding top/bottom lattice to provide continuous coverage that supports loss prevention across open spaces. The assembly is shipped unassembled but is designed for rapid setup, and once installed, the gate rolls smoothly when expanding or retracting to accommodate changing space needs.
Features:

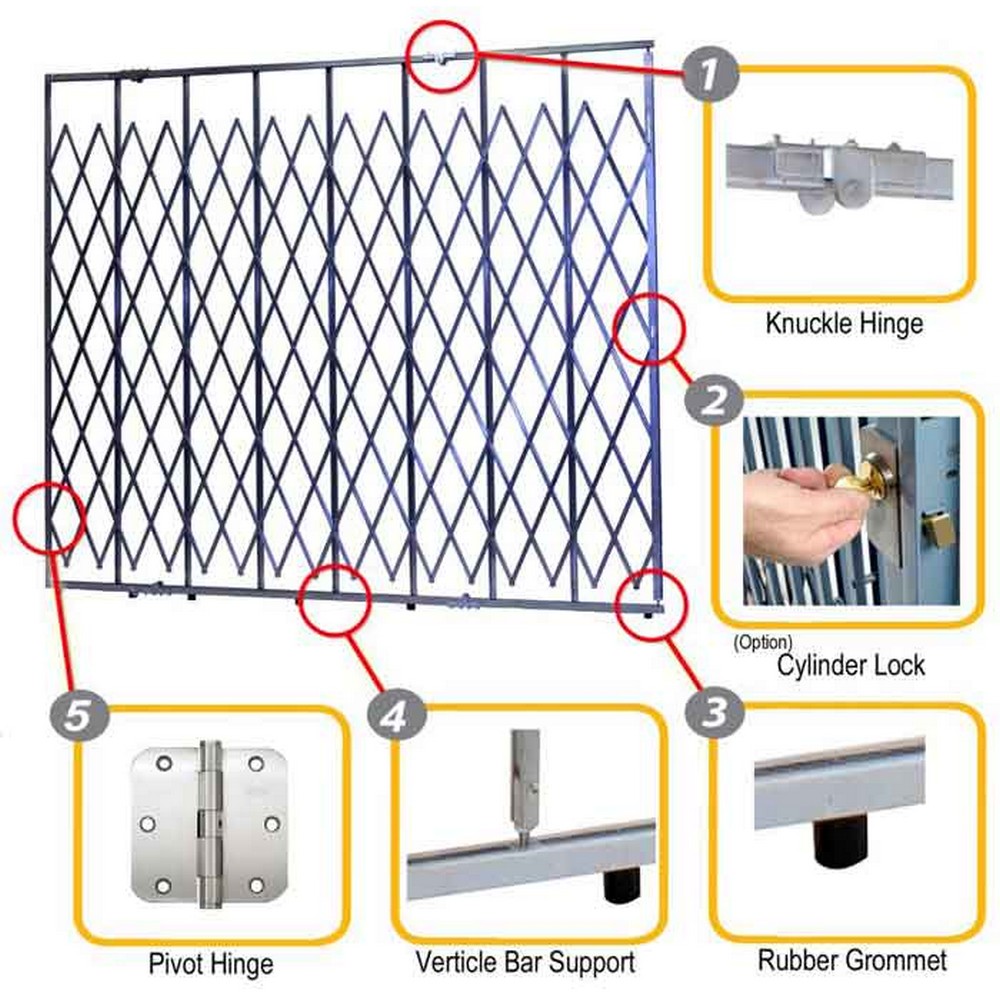

- Combination of vertical bars and scissor gates for total coverage and security
- Stands up to indoor and outdoor conditions, heat, rain, snow, and harsh chemicals
- Top and bottom track styles available
- Powder coat color options available on request
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for transport flexibility
- Width:
- 16'
- Height:
- 7'
- Max Width:
- 16'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 280.0 lbs. ea.
- Package Size:
- Each
