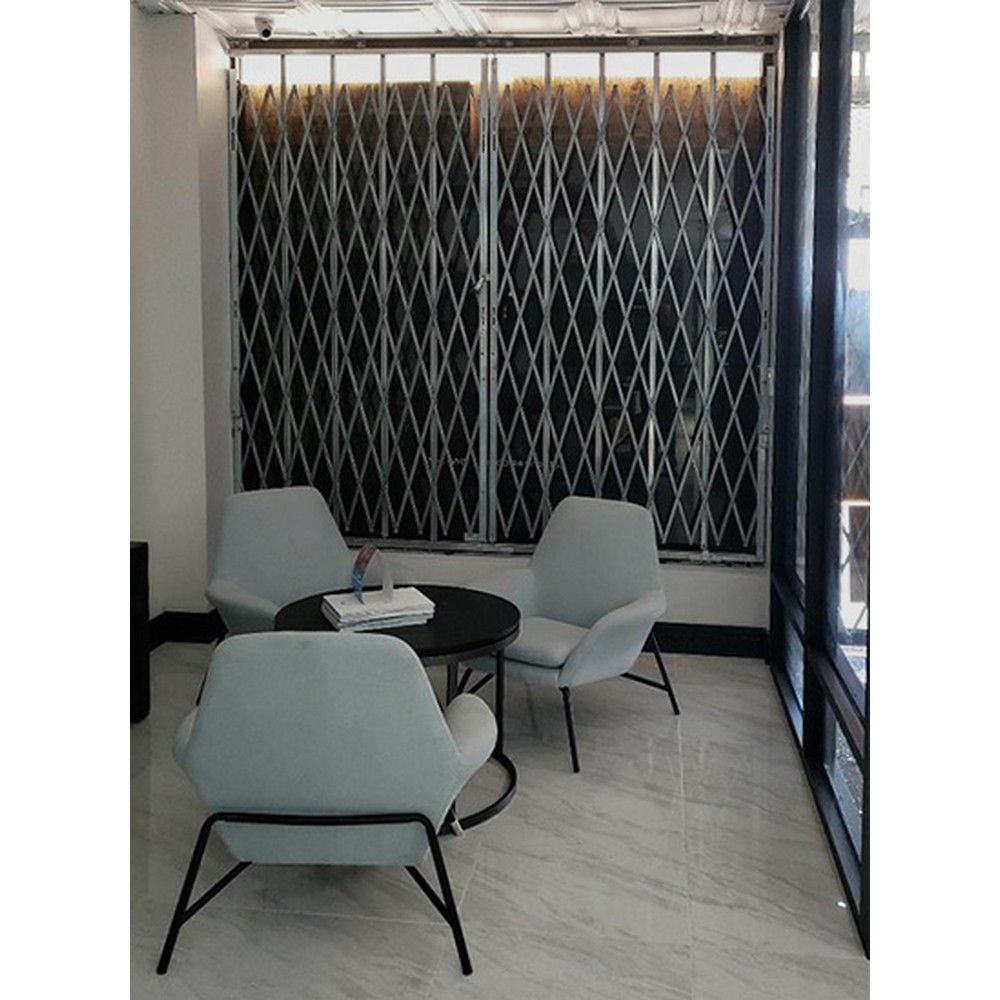

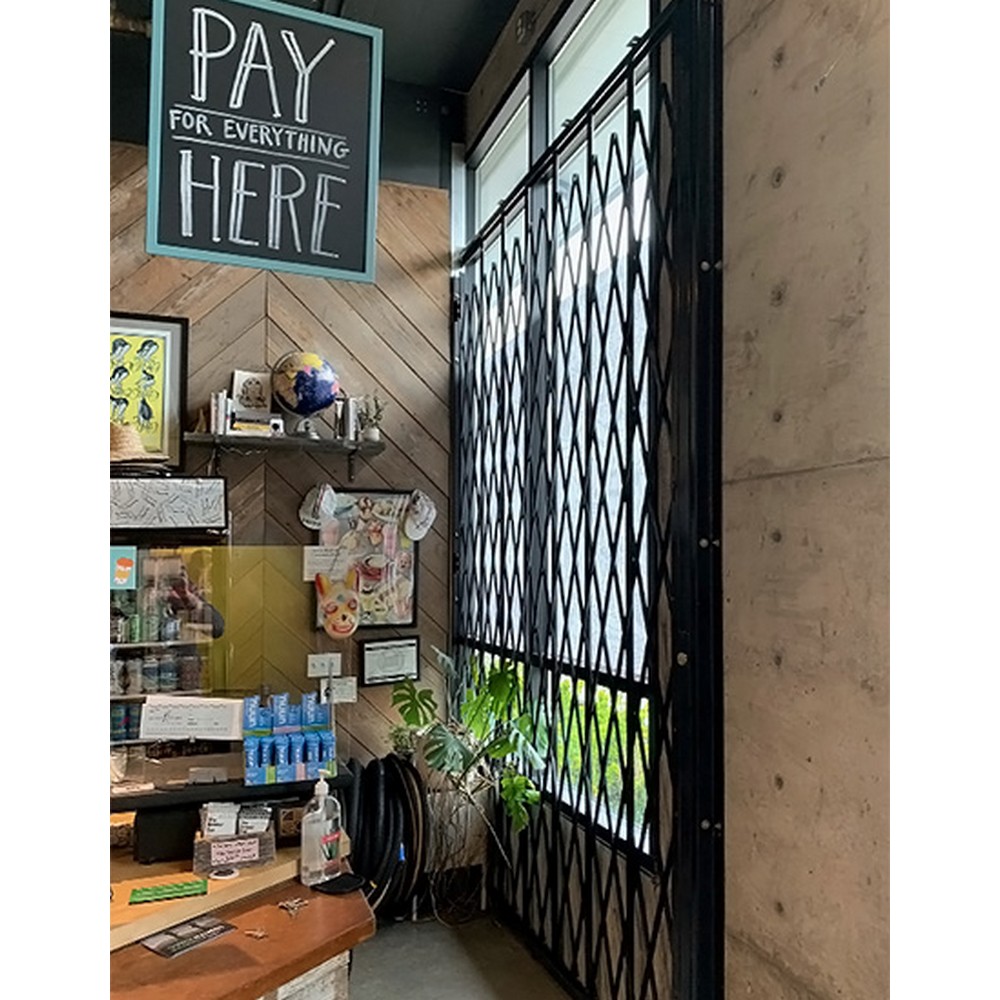

The Illinois Engineered Products HYDS1070 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouses, or interior work areas. It features a combination of vertical bars riding in tracks and traditional scissor lattice, delivering a cohesive security solution that both blocks access and allows for controlled expansion as needed. The gate is designed for rapid setup and straightforward installation, with smooth operation for expanding or retracting the gate to adapt to space requirements.
Constructed with galvanized steel components, the HYDS1070 uses a 1-1/4 inch by 5/8 inch 14-gauge C-channel frame paired with 3/8 inch by 3/4 inch 14-gauge U-channel lattice and reinforced with zinc-plated rivets. This profile supports durability in varied conditions, including indoor, outdoor, and exposure to heat, rain, snow, or industrial cleaners. The top is configured in folding style, with a matching bottom track, and it includes a standard padlock hasp with an optional integrated cylinder lock. Finishing options include a galvanized base with powder-coated colors available on request, enhancing corrosion resistance and appearance.
This single-gate model is intended for installations up to 10 feet wide and 7 feet high, with a folded lattice height of 7 feet and an expanded lattice height of 6.5 feet. Assembly is required, and each unit ships unassembled but is designed for relatively quick on-site assembly. A one-year manufacturer warranty backs the product. This gate is suitable for securing storefront openings or delineating secure zones in facilities where a robust, modular barrier is needed and where fixed-span security is impractical.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Weather-resistant design suitable for indoor and outdoor use
- Top and bottom track options available
- Sturdy galvanized steel construction with durable hardware
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for flexible installation
- Finish options include galvanized or powder coat on request
- Width:
- 10'
- Height:
- 7'
- Max Width:
- 10'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 175.0 lbs. ea.
- Package Size:
- Each
