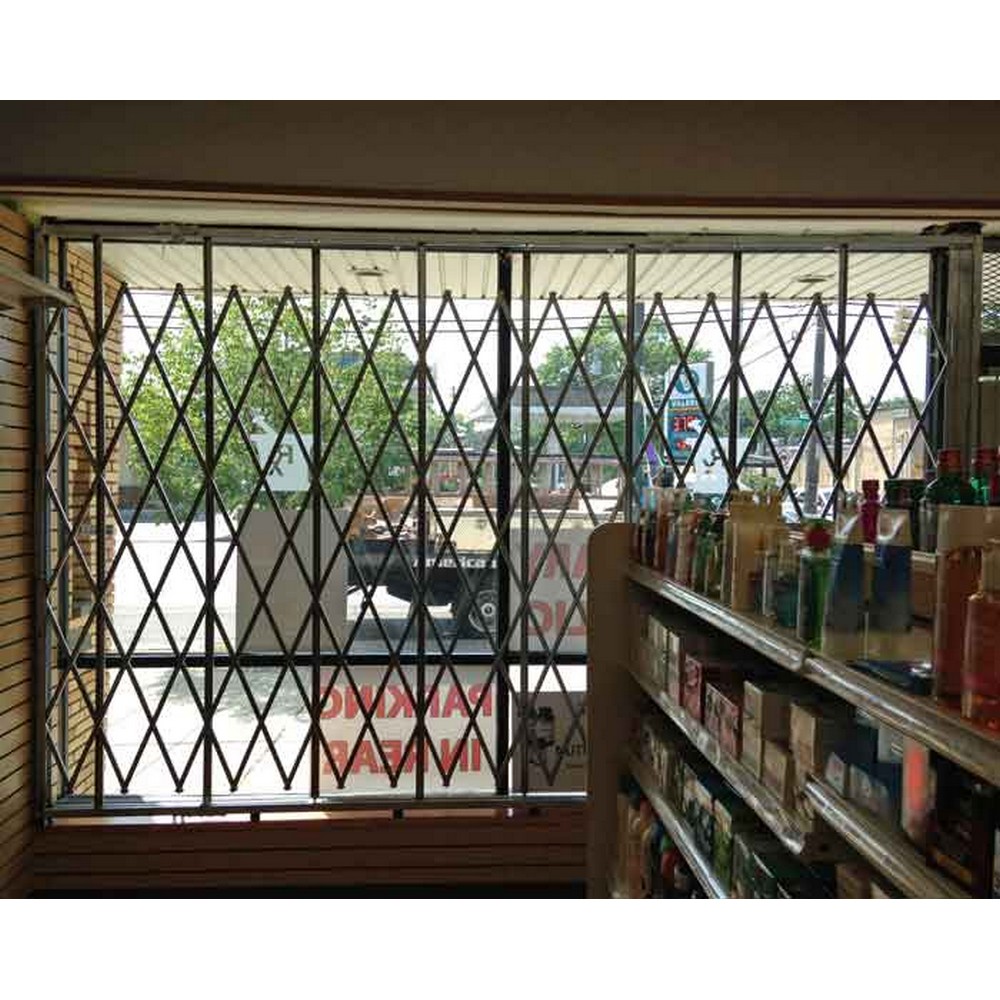

The HYDP1470 storefront security gate from Illinois Engineered Products is a full-width, ready-to-ship barrier designed to secure large storefronts or sections of a facility. It functions as a continuous gate that can be deployed quickly to section off warehouse areas or protect storefront locations, with smooth expansion and retraction to accommodate access needs. The assembly combines vertical bars riding in tracks with a traditional scissor lattice, delivering a robust barrier that supports loss prevention without sacrificing accessibility.
Constructed for durability in varied conditions, the gate features a galvanized steel frame and lattice components that resist indoor and outdoor exposure, including heat, rain, snow, and exposure to harsh industrial cleaners. The top and bottom track options are available in multiple styles, enhancing installation flexibility to fit different storefront configurations. The unit ships unassembled and weighs 245 lbs per gate, indicating a substantial, stable barrier when properly installed. A padlock hasp comes standard for basic security, with an integrated cylinder lock available as an option to increase protection where needed. Finish options include galvanization with powder coat colors available on request to suit site aesthetics.
Typical uses include sectioning off loading docks, protecting entryways, or isolating work zones within warehouses or retail environments. The product is designed as a pair gate with a maximum width of 14 ft and a height of 7 ft, providing a wide, tall barrier across storefront openings. Considerations for use include ensuring compatible mounting tracks and confirming access requirements align with the foldable top/bottom track style chosen during installation. Maintenance should focus on periodic inspection of the frame, lattice rivets, and track alignment to preserve smooth operation over time.
Features:
- Combination of vertical bars and scissor gates for full coverage and security
- Suitable for indoor and outdoor use, resistant to heat, rain, snow, and harsh cleaners
- Top folding frame style with optional bottom track and other size configurations
- Galvanized steel construction with corrosion resistance
- Padlock hasp standard; integrated cylinder lock option available
- Ships unassembled for flexible installation
- Storefront Security Gate – Pair Gate, 14' W x 7' H
- Width:
- 14'
- Height:
- 7'
- Max Width:
- 14'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 245.0 lbs. ea.
- Package Size:
- Each
