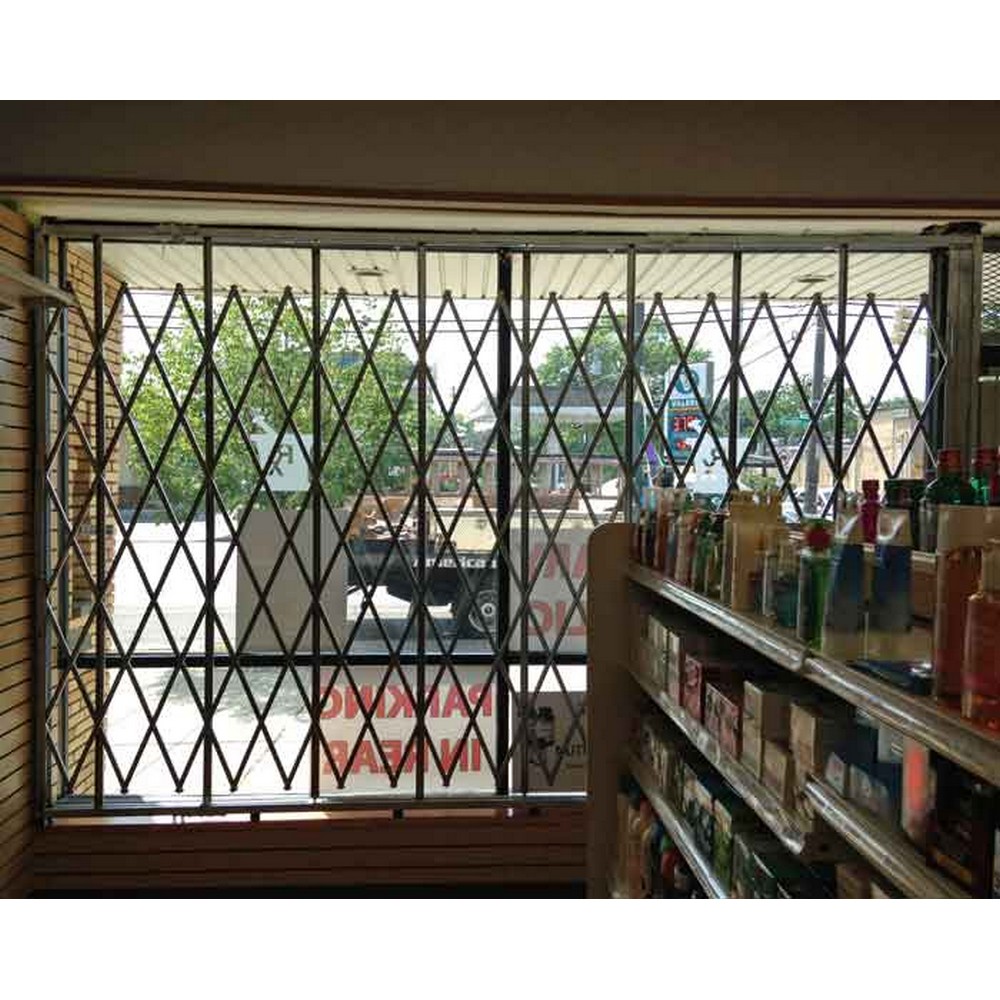

The Illinois Engineered Products HYDP1270 storefront security gate is a full-width, folding gate solution designed to secure storefronts or segregate areas within a facility. Sized to span 12 feet wide and 7 feet high, this gate provides continuous coverage with a combination of vertical bars riding in tracks and a scissor lattice for robust loss prevention. It ships unassembled and weighs 210 lb per unit, reflecting a sturdy, industrial-grade construction suitable for demanding environments. The design accommodates expansion and retraction smoothly, allowing quick setup and easy reconfiguration as access needs change.
Construction details include a framing system of 1-1/4 inch by 5/8 inch 14-gauge C-channel steel with rubber grommet feet, and a lattice comprised of 3/8 inch by 3/4 inch 14-gauge U-channel steel with reinforced rivets. The product is finished in galvanized steel with optional powder-coated colors available on request, offering flexibility for indoor or outdoor use. Top and bottom track styles are available, enabling tailored installation to fit entryways, and the locking options include a standard padlock hasp with an integrated cylinder lock as an optional upgrade. The gate is designed for environments that may involve heat, rain, snow, and exposure to harsh industrial cleaners or chemicals, underscoring its suitability for varied storefront and warehouse applications.
Because this is sold as a storefront security gate pair, it is intended for installations where continuous, secure enclosure is needed along a storefront or similar opening. Assembly is required, and the gate is provided as a non-returnable item. When planning installation, consider the width constraint of 12 feet and the tracked motion needed for smooth expansion or retraction, along with compatible top and bottom track configurations to ensure proper fit and operation. This product is backed by a 1-year manufacturer warranty, reflecting the technician-grade durability typical of Illinois Engineered Products offerings.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Suitable for indoor and outdoor use under harsh conditions
- Top & bottom track styles available, with folding options
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with powder coat options on request
- Ships unassembled for flexible installation
- Pair gate configuration for storefront applications
- Width:
- 12'
- Height:
- 7'
- Max Width:
- 12'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 210.0 lbs. ea.
- Package Size:
- Each
