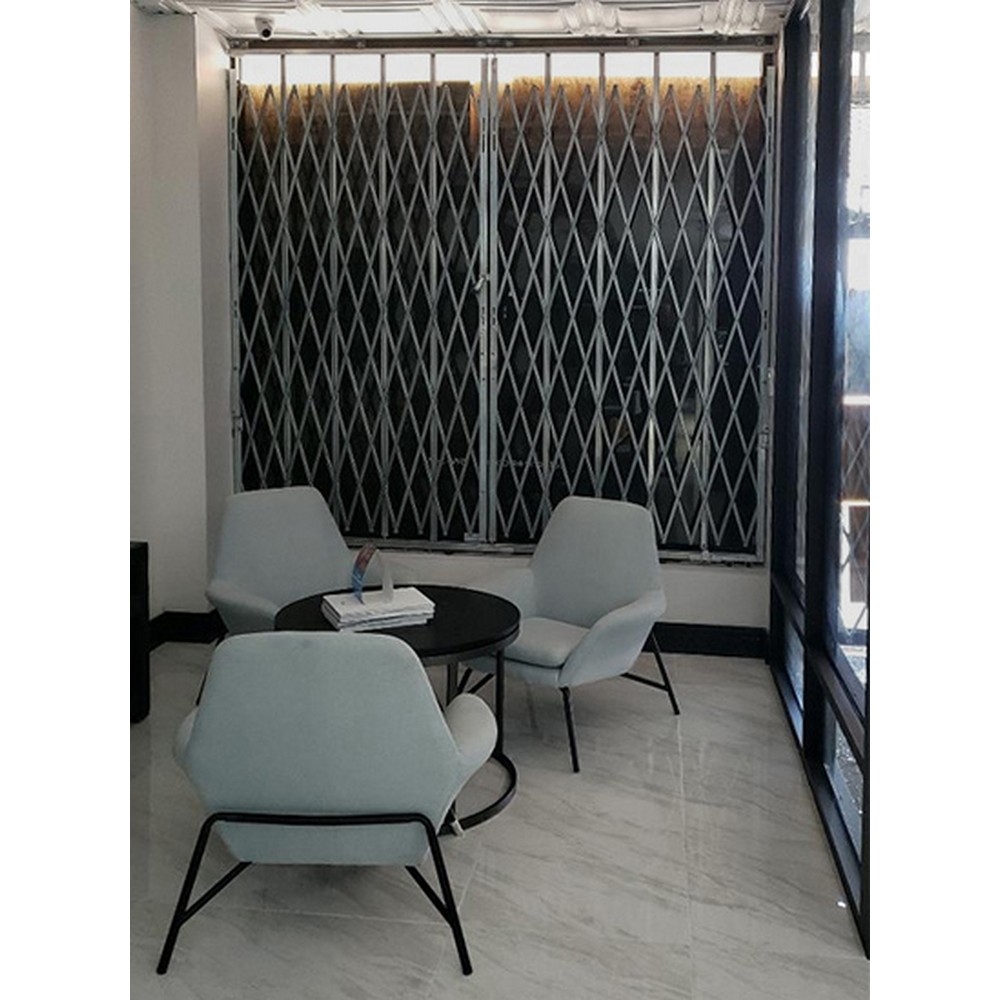

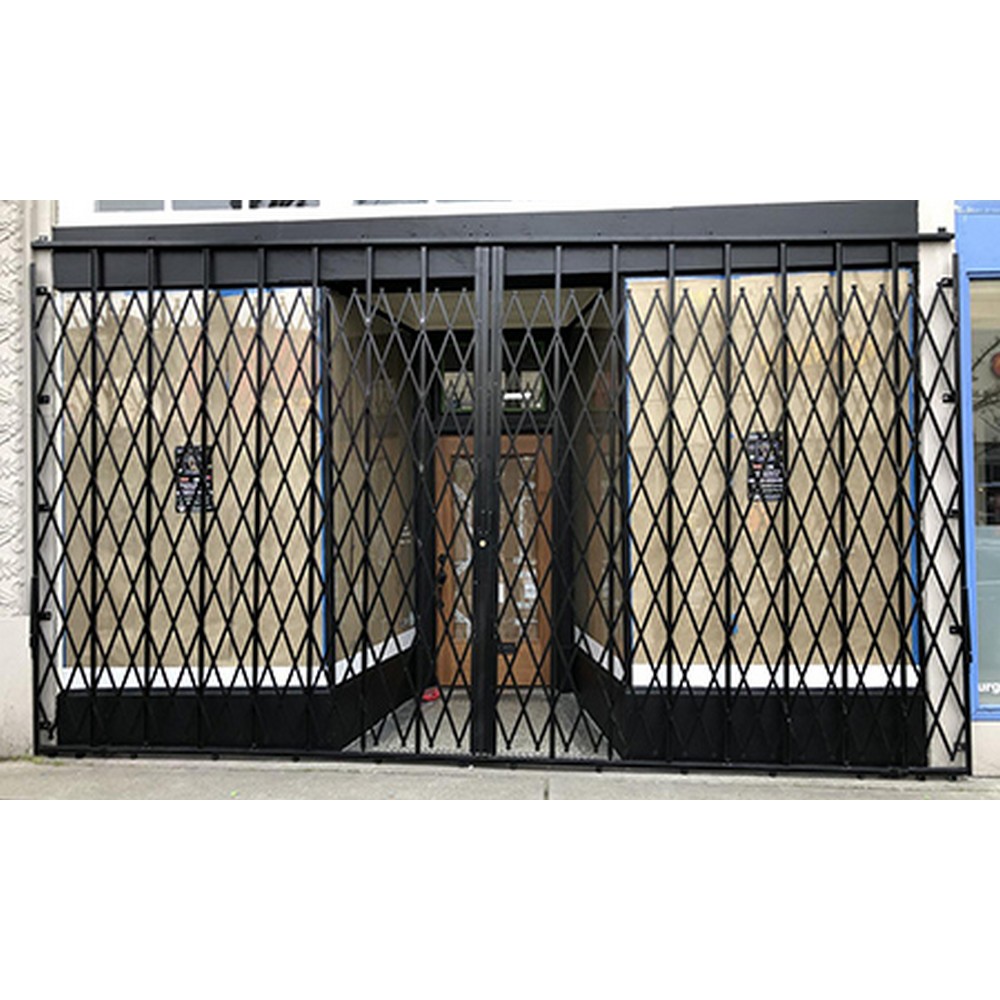

The HYDS570 storefront security gate from Illinois Engineered Products provides a full-width, continuous barrier designed to help secure storefronts, warehouse entrances, and other high-traffic areas. This single-gate system expands or retracts smoothly, enabling quick setup and flexible space division. Constructed from galvanized steel with a combination of vertical bars riding in tracks and a scissor lattice, it delivers a dense, deterrent appearance while allowing visibility and airflow as appropriate for secured zones. The folding top frame and compatible bottom track accommodate easy installation and operation, making it suitable for environments that require reliable access control and rapid reconfiguration.
Key construction details give this gate its durability and versatility. The frame uses 1-1/4 in × 5/8 in 14-gauge C-channel steel, paired with a 3/8 in × 3/4 in 14-gauge U-channel lattice and reinforced with zinc-plated rivets. The top and bottom track system uses 11-gauge box channel steel designed to support the gate’s movement, with rubber grommet feet to protect floors during operation. The unit ships unassembled, is galvanized as standard, and powder coat colors are available on request to suit site aesthetics. A padlock hasp comes standard for basic security, with an integrated cylinder lock option for higher-security installations. The HYDS570 weighs 88 pounds and is designed for indoor or outdoor use where exposure to heat, rain, snow, and industrial chemicals is a consideration. It is sold as a single, non-returnable gate unit with a maximum width of 5 ft and a height of 7 ft, suitable for storefronts and similar restraint needs.
Potential applications include sectioning off inventory corridors, securing storefront entries, or creating controlled zones within a facility. When planning installation, consider alignment with existing tracks and the spacing required for smooth expansion and retraction, as well as the availability of top and bottom track styles and other sizes if future adaptation is needed.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor or outdoor use; resistant to heat, rain, snow and harsh chemicals
- Top & bottom track styles available; other sizes offered
- Galvanized steel construction with 14 gauge components for durability
- Padlock hasp standard; integrated cylinder lock optional
- Folding top frame style with 5' W x 7' H dimensions
- Ships unassembled; 1-year manufacturer warranty
- Width:
- 5'
- Height:
- 7'
- Max Width:
- 5'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 88.0 lbs. ea.
- Package Size:
- Each
