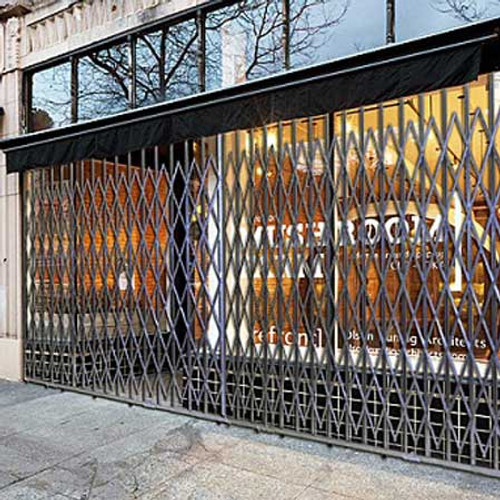

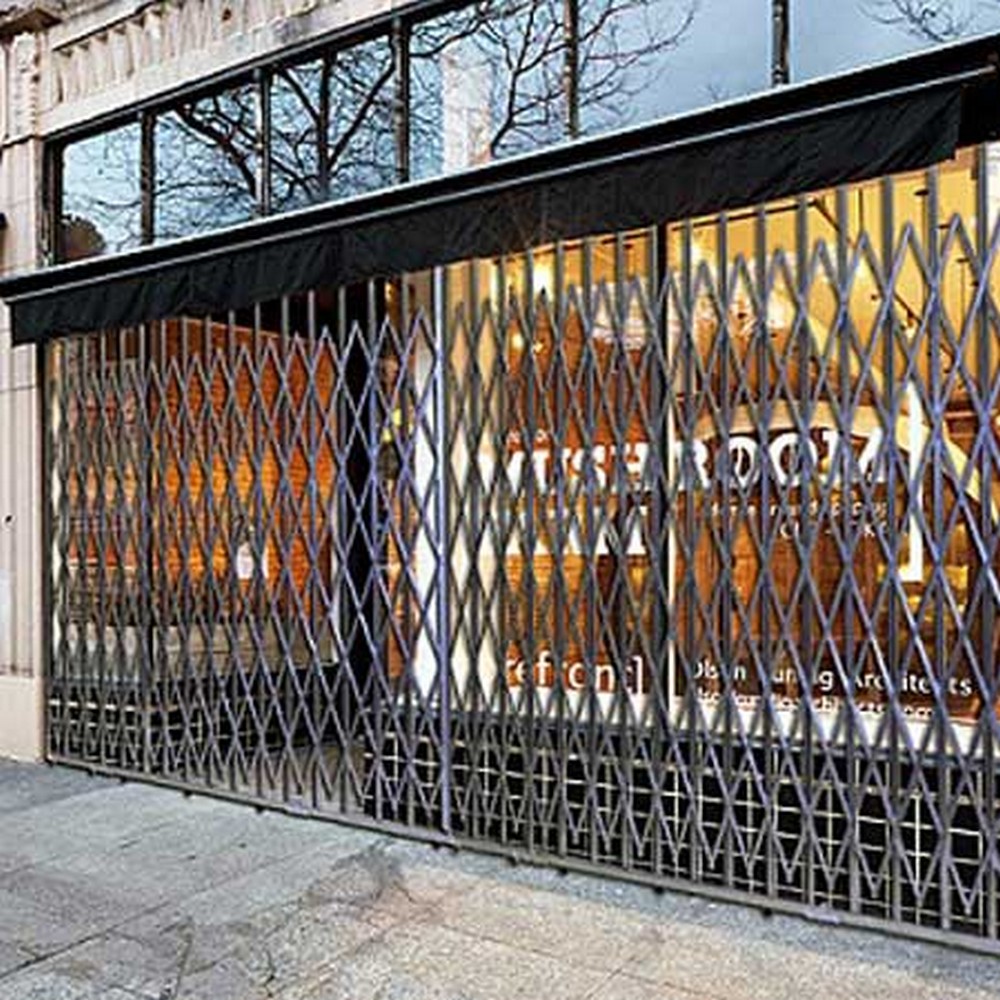

The Illinois Engineered Products HYDS512 storefront security gate is a full-width, single-gate solution designed to secure storefronts, warehouses, and controlled areas. It combines traditional scissor lattice with vertical bars that ride in tracks, delivering continuous coverage across a 5-foot-wide opening and a 12-foot height. The design includes both fixed top and adjustable bottom configurations and ships unassembled for custom installation, with a 1-year manufacturer warranty backing its durability.

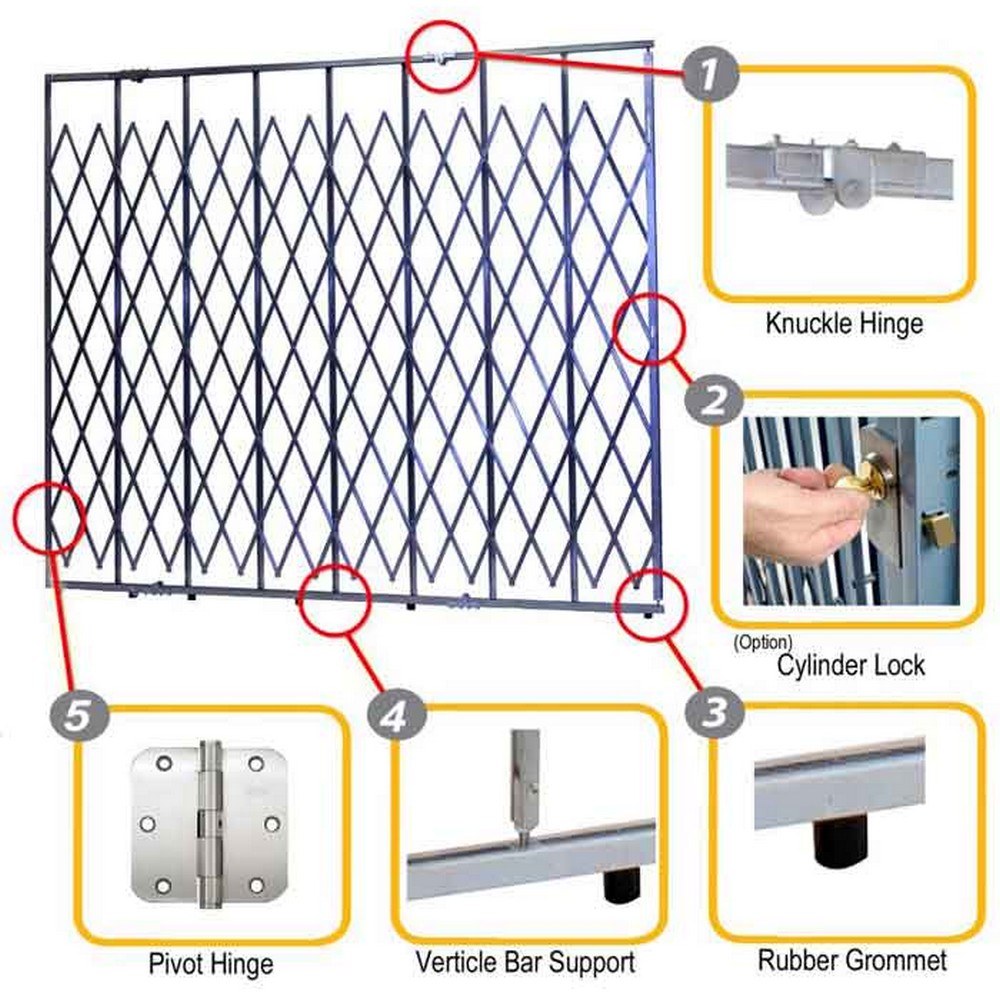

Constructed from galvanized steel components, the HYDS512 uses a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet, and 3/8" x 3/4" 14-gauge U-channel steel lattice secured with zinc-plated rivets. The gate is intended for indoor and outdoor use, capable of withstanding heat, rain, snow, and exposure to harsh industrial cleaners or chemicals. A padlock hasp is provided as standard, with an integrated cylinder lock available as an option to enhance security at entry points. Finish options include galvanized steel with powder coat colors available on request to suit site aesthetics.
This unit is sized for a 5-foot width with a 12-foot overall height and weighs approximately 210 pounds per gate when shipped, with packaging as an individual, unassembled piece. Practical installation considerations include top and bottom track compatibility and the ability to expand or retract as needed, making it suitable for segmenting spaces, protecting storefronts, or restricting access in high-traffic environments. Maintenance focuses on periodic inspection of rails, latching hardware, and the galvanized finish to ensure smooth operation and long service life.
Features:
- Combination of vertical bars and scissor gates for full coverage and enhanced security
- All-weather performance for indoor and outdoor use, resistant to heat, rain, snow, and harsh cleaners
- Fixed top frame with foldable bottom configuration for flexible installation
- Galvanized steel construction with 14 gauge components and zinc-plated rivets
- Padlock hasp included; integrated cylinder lock option available
- Ships unassembled for custom fitting; 5' W x 12' H footprint
- Width:
- 5'
- Height:
- 12'
- Max Width:
- 5'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 210.0 lbs. ea.
- Package Size:
- Each
