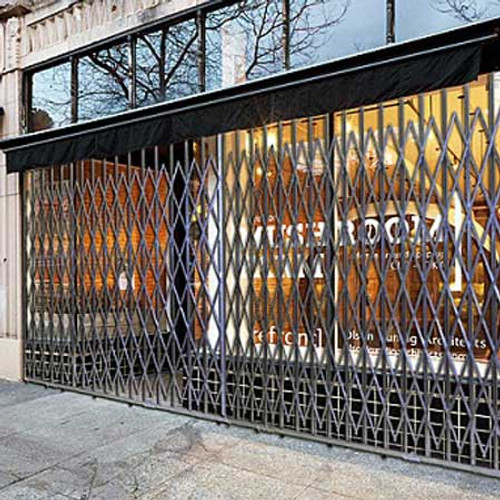

The Illinois Engineered Products HYDP1212 Storefront Security Gate is a full-width, rear-stationary barrier designed to secure storefronts, warehouse entries, and other high-traffic access points. This pair of gates provides continuous coverage across a 12-foot opening, with a fixed top track and a folding bottom option that supports quick setup and expansion or retraction as needed. Built to function in varied environments, the unit combines vertical bars riding in tracks with a lattice-like scissor mechanism to maximize loss prevention while remaining operable for access when required.
Constructed from galvanized steel with a 1-1/4" x 5/8" 14 gauge C-channel frame and 3/8" x 3/4" 14 gauge U-channel lattice riveted to zinc-plated components, the gate is designed to withstand indoor and outdoor conditions, including exposure to heat, rain, snow, and routine industrial cleaners. It ships unassembled but is designed for straightforward installation, and it includes a padlock hasp as a standard locking option with an integrated cylinder lock available as an upgrade. The system weighs 360 pounds per gate and is offered with powder-coated finishes in colors available on request, while the basic finish is galvanized steel.
This storefront gate is intended for use as a pair gate that can be configured to cover a continuous width up to 12 feet, with a 11.5-inch expanded lattice height when extended and a 12-inch folded lattice height when compacted. The top and bottom track styling enables stable operation and smooth movement when expanding or retracting, making it suitable for temporary or semi-permanent security installations in manufacturing, retail, or logistics facilities.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Suitable for indoor and outdoor use, resistant to heat, rain, snow and harsh cleaners
- Fixed top with folding bottom configuration for flexible access
- Galvanized steel finish with optional powder coat colors
- Padlock hasp standard; integrated cylinder lock available
- Frame and lattice constructed from heavy-duty 14 gauge steel components
- Ships unassembled for easy transport and installation
- Width:
- 12'
- Height:
- 12'
- Max Width:
- 12'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 360.0 lbs. ea.
- Package Size:
- Each
