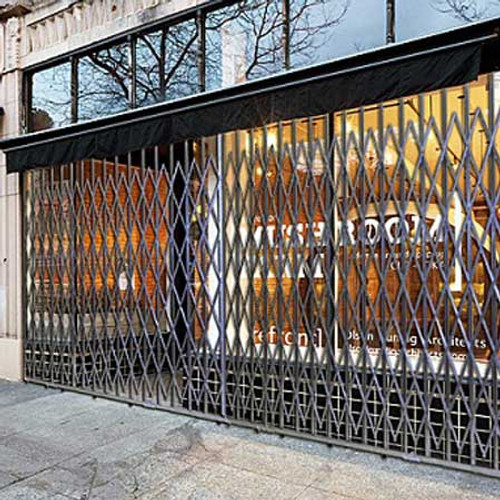

The Illinois Engineered Products HYDP1412 storefront security gate is a full-width, two-section barrier designed to help you section off storefronts or warehouse areas quickly and securely. This 14-foot-wide by 12-foot-high gate combines vertical bars that ride in tracks with a scissor lattice, providing continuous coverage and a robust visual deterrent. It ships unassembled and includes a padlock hasp as standard, with an integrated cylinder lock option available, enabling flexible access control for varying security needs.
Construction relies on durable galvanized steel components. The frame is built from 1-1/4" x 5/8" 14-gauge C-channel steel, and the lattice uses 14-gauge U-channel steel with reinforced rivets, delivering rigidity while allowing smooth expansion and retraction along provided top and bottom tracks. The system is designed to withstand indoor and outdoor conditions, including heat, rain, snow, and exposure to harsh industrial cleaners or chemicals. The top track measures 1-7/8" x 1-3/8" box channel steel, and the bottom track matches the same style, ensuring reliable operation and alignment across its full width.
Ideal for facilities seeking a quick-to-install, scalable security solution, this store-front gate can help deter loss and limit access to protected areas. Consider its unassembled delivery and the need for track installation in the chosen location. Finishing options include galvanized steel with optional powder coat colors available on request, which can help match site aesthetics while maintaining corrosion resistance. With a 1-year manufacturer warranty, it’s a practical choice for facilities requiring dependable, large-area access control without compromising visibility or accessibility.
Features:
- Hybrid design combines vertical bars with folding bottom scissor gates for full coverage
- Indoor or outdoor readiness; withstands heat, rain, snow and harsh chemicals
- Fixed top frame with folding bottom track for versatile installation
- Galvanized steel construction with optional powder coat colors
- Padlock hasp included; integrated cylinder lock optional
- Ships unassembled for easier transport and on-site assembly
- Width:
- 14'
- Height:
- 12'
- Max Width:
- 14'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 420.0 lbs. ea.
- Package Size:
- Each
