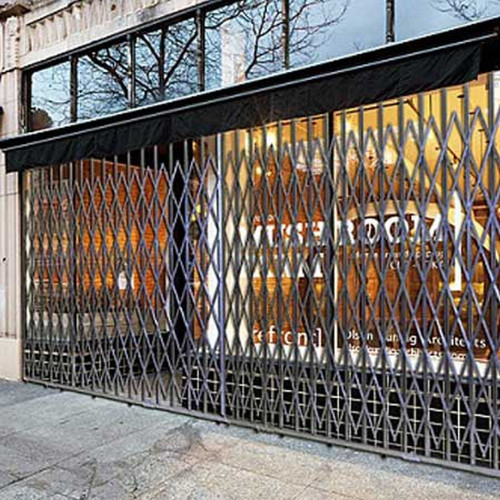

The Illinois Engineered Products HYDP1211 storefront security gate is a full-width barrier designed to segment areas within a facility by securing storefronts, warehouse entrances, or other high-traffic points. It combines vertical bars that ride in tracks with a traditional scissor lattice, delivering a continuous gate assembly that can expand or retract as needed. The unit is supplied in a 12 ft wide by 11 ft high configuration, and ships unassembled for on-site setup. A standard padlock hasp is included, with an integrated cylinder lock option available to suit security requirements, and the galvanized steel construction provides a robust base that can withstand varied indoor and outdoor conditions, including exposure to heat, rain, snow, and industrial cleaners.
Key construction details support its practical performance: the frame is built from 1-1/4 in x 5/8 in 14 gauge C-channel steel, with 3/8 in x 3/4 in 14 gauge U-channel steel lattice and zinc-plated rivets, ensuring rigidity and long-term service in demanding environments. The gate uses top and bottom tracks to guide movement, enabling smooth expansion or retraction and reliable operation across its 12 ft width. Finish options include galvanized steel with powder coat colors available on request, allowing some customization to match facility aesthetics or corrosion resistance needs. The HYDP1211 is sold as a pair gate and weighs approximately 330 lbs per unit, with assembly required prior to installation.
This product is suitable for securing storefronts or dividing large interior spaces in warehouses or industrial facilities. Considerations include assessing mounting surface compatibility with the track hardware and confirming whether the top and bottom track configuration matches the desired installation. The unit’s non-returnable status reflects its specialized nature and the importance of confirming fit prior to purchase. Maintenance involves inspecting track alignment, rivet integrity, and locking mechanisms to ensure continued operability.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Indoor/outdoor use with resistance to heat, rain, snow, and chemicals
- Galvanized steel construction with optional powder coat finish
- Includes standard padlock hasp; integrated cylinder lock available
- Top & bottom track styles available; ships unassembled
- Fixed top frame and folding bottom configuration for secure operation
- Width:
- 12'
- Height:
- 11'
- Max Width:
- 12'
- Folded Lattice Height:
- 11'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 330.0 lbs. ea.
- Package Size:
- Each
