The Illinois Engineered Products HYDS710 storefront security gate provides a full-width, retractable barrier designed to secure entrances and delineate areas within warehouses or storefronts. This single-gate configuration combines vertical bars riding in tracks with a scissor lattice to deliver continuous coverage from edge to edge. The unit arrives as a kit that ships unassembled and is designed to be installed quickly, enabling rapid setup or expansion as needs change. When extended, it spans 7 feet in width and stands 10 feet high, with a robust frame built from 1-1/4 inch by 5/8 inch 14-gauge C-channel steel and a 3/8 inch by 3/4 inch 14-gauge U-channel lattice reinforced by zinc-plated rivets. The top and bottom tracks are box-style channels, providing stable guidance as the gate slides open or closes, and rubber grommet feet help protect floor surfaces during operation.
This gate is engineered for versatility across indoor and outdoor environments, with resistance to heat, rain, snow, and common industrial cleaners. A padlock hasp is included for standard locking, while an integrated cylinder lock is available as an option to increase security. Finish options include galvanized steel with powder coat colors available on request, allowing some customization to match facility aesthetics. Buyers should note the product is non-returnable and includes a one-year manufacturer warranty, reflecting assurance of the core construction and function. With a weight of approximately 175 pounds per unit, the HYDS710 is suitable for installations requiring a wide, continuous barrier that can be configured with related top or bottom track styles and other sizes as needed for scalable security solutions.
Features:
- Combination of vertical bars and scissor gates for total coverage and enhanced security
- Suitable for indoor or outdoor use in harsh conditions
- Fixed top frame with folding bottom gate for flexible access
- Galvanized steel construction; powder coat colors available on request

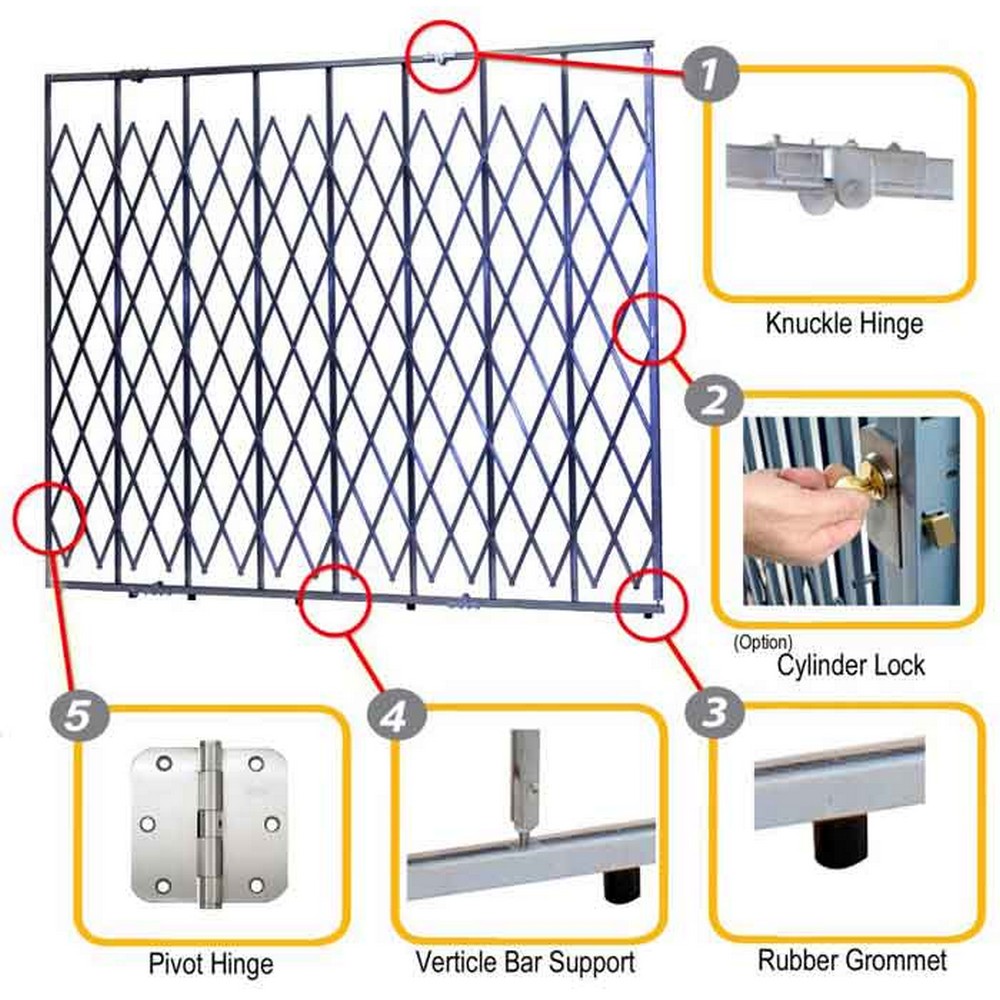

- Padlock hasp standard; integrated cylinder lock option available
- Bottom track and top track styles available; other sizes supported
- Ships unassembled with 1-year warranty
- Width:
- 7'
- Height:
- 10'
- Max Width:
- 7'
- Folded Lattice Height:
- 10'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 175.0 lbs. ea.
- Package Size:
- Each
