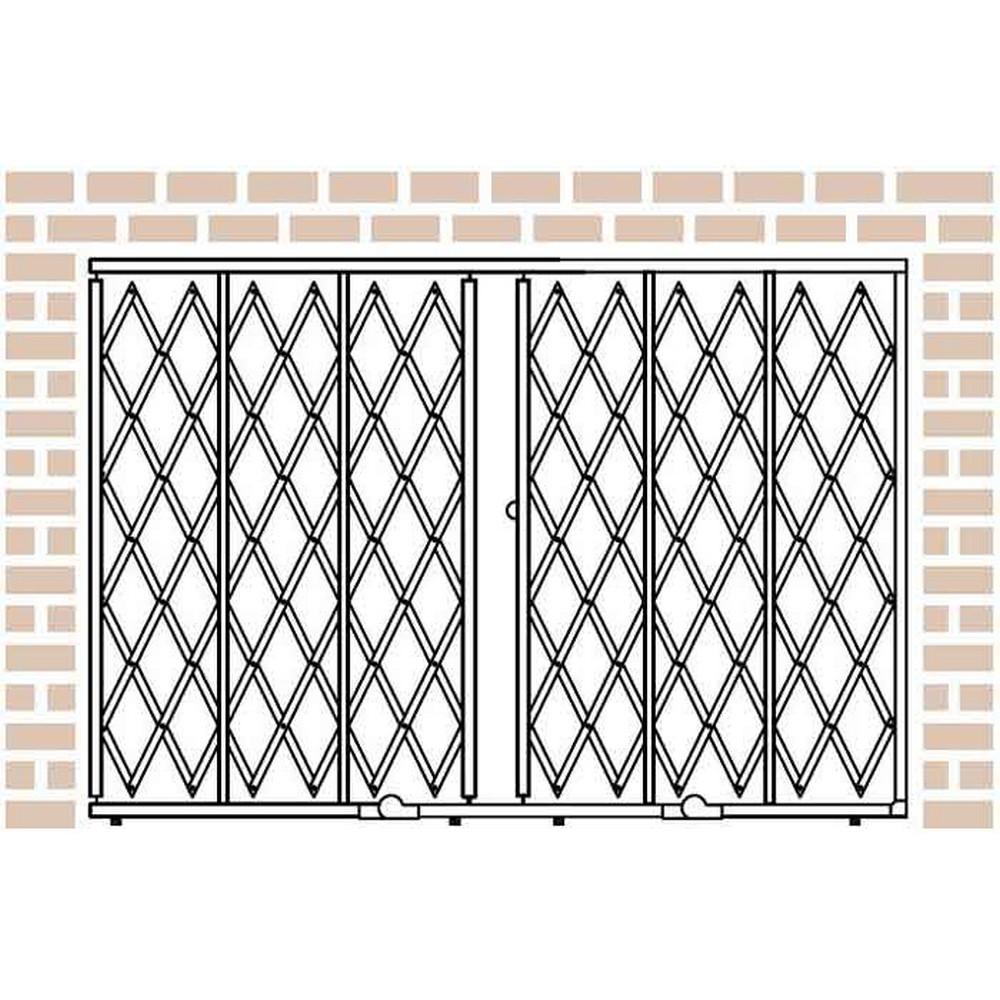

The Illinois Engineered Products HYDP912 storefront security gate is a full-width, self-contained barrier designed to section off warehouse areas or shield storefront locations. It features a combination of vertical bars riding in tracks and a folding scissor lattice, providing continuous coverage across a 9' wide by 12' high opening. This model ships unassembled and includes a frame constructed from 1-1/4" x 5/8" 14-gauge C-channel steel with rubber grommet feet, plus lattice components built from 14-gauge U-channel steel and zinc-plated rivets. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an option to enhance access control. The gate is finished in galvanized steel, with powder-coated color options available on request, and is designed to withstand indoor or outdoor conditions, including heat, rain, snow, and exposure to harsh cleaners or chemicals. The HYDP912 is offered as a pair gate with a top and bottom track configuration and is suitable for facilities seeking a heavy-duty, semi-permanent barrier that can be installed quickly and expanded or retracted as needed for access. The unit weighs 270 lb per gate and ships as unassembled packaging, enabling on-site assembly to fit the exact doorway or opening dimensions.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Versatile indoor/outdoor use withstands heat, rain, snow and industrial cleaners
- Top and bottom track styles available, and other sizes offered
- Includes standard padlock hasp; integrated cylinder lock option available
- Galvanized steel with finish options available on request
- Ships unassembled for customizable installation
- Fixed top frame with folding bottom design for secure access control
- Width:
- 9'
- Height:
- 12'
- Max Width:
- 9'
- Folded Lattice Height:
- 12'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 11.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 270.0 lbs. ea.
- Package Size:
- Each
