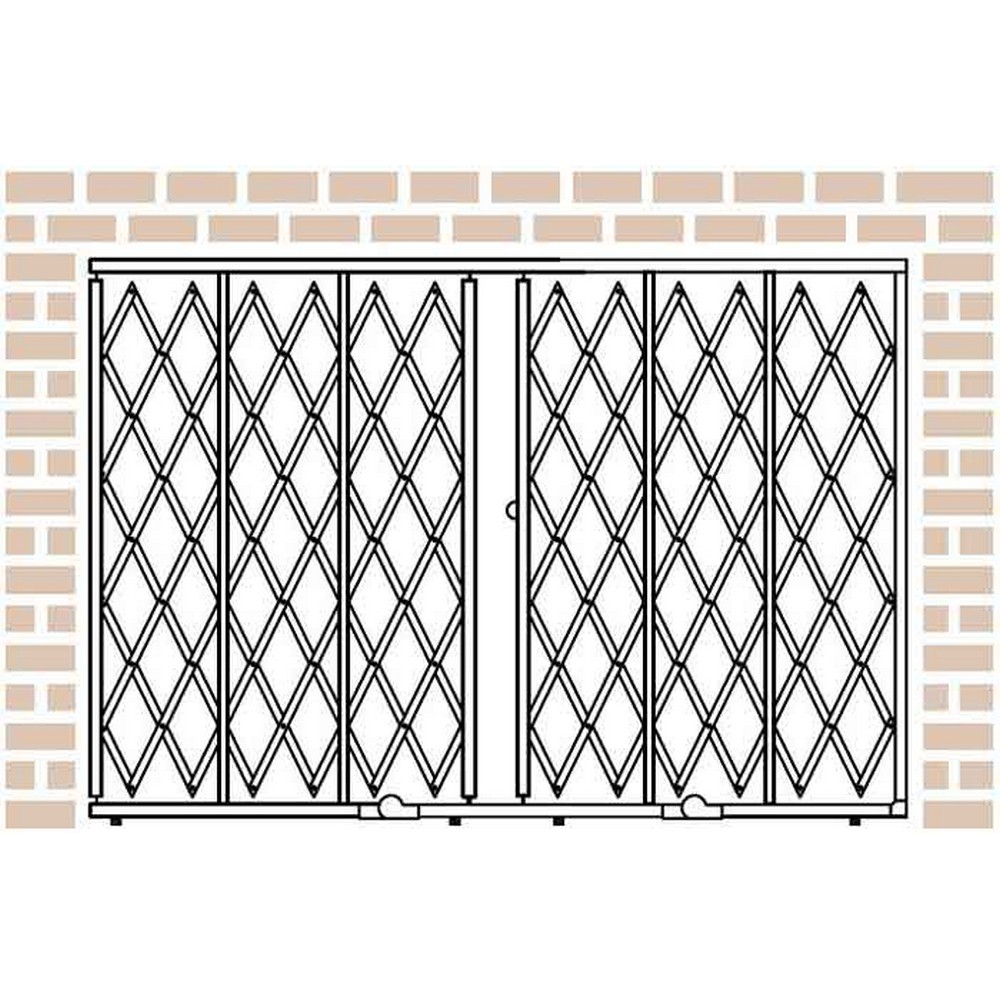

The Illinois Engineered Products HYDP1290 storefront security gate is a full-width, two-panel gate designed to section off store fronts, warehouse corridors, or other high-traffic areas. Built to cover a 12-foot opening and stand 9 feet high, this unit combines vertical bars riding in tracks with a scissor lattice for enhanced visibility and security. It ships unassembled and is intended for quick setup, with smooth expansion or retraction to adapt to shifting space needs. The design relies on a galvanized steel frame and lattice components, with fastening hardware and feet that accommodate uneven floors, helping to hold position once installed. A standard padlock hasp is included for basic locking, while an integrated cylinder lock is optional for higher security requirements.
This model is suitable for both indoor and outdoor environments, and it is described as resistant to heat, rain, snow, and harsh industrial cleaners or chemicals. The top and bottom track options are available, and other sizes or configurations are offered to fit different openings. The unit weighs about 270 pounds per gate and is sold as a pair gate, indicating it is intended to span a full width when deployed in its intended storefront or access-control setting. Maintenance considerations include periodic inspection of the galvanizing and track hardware to ensure smooth operation and proper alignment over time, especially in areas with heavy use or exposure to the elements.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor use; withstands heat, rain, snow, and harsh chemicals
- Top frame is Fixed; bottom can adapt with folding options
- Galvanized steel construction with optional powder coat colors
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for customizable installation
- Durable 14 gauge steel components with reinforced framing
- Width:
- 12'
- Height:
- 9'
- Max Width:
- 12'
- Folded Lattice Height:
- 9'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 270.0 lbs. ea.
- Package Size:
- Each
