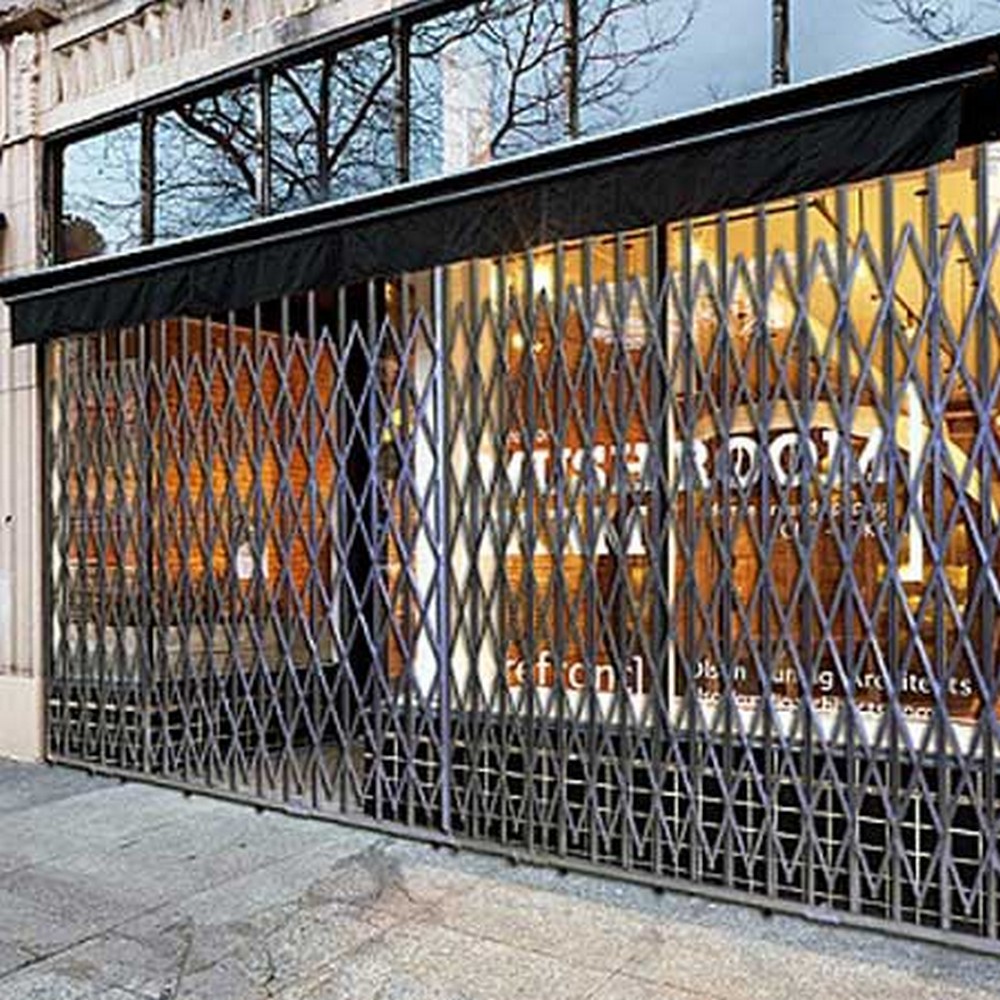

The Illinois Engineered Products HYDP1090 storefront security gate is a full-width barrier designed to secure commercial storefronts, warehouses, and restricted areas. With a 10' wide by 9' high footprint, this gate pair uses a combination of vertical bars riding in tracks and a scissor lattice to provide continuous coverage while allowing for rapid expansion or retraction as needed. The assembly ships unassembled and is intended for fast on-site setup, making it suitable for temporary or semi-permanent perimeter protection where access control is important.
Constructed from galvanized steel with reinforced frame members, the system features a 1-1/4" x 5/8" 14-gauge C-channel steel frame and 3/8" x 3/4" 14-gauge U-channel lattice, all designed to withstand indoor and outdoor conditions, including exposure to heat, rain, and harsh industrial cleaners. The product includes a standard padlock hasp for basic locking, with an integrated cylinder lock offered as an optional upgrade. The top and bottom tracks are built from robust box-channel steel to facilitate smooth operation, and the unit’s finish can be galvanized or powder-coated in colors available on request.
This storefront gate is sold as a pair and weighs approximately 225 pounds per unit, reflecting its heavy-duty construction intended for durable, long-term use. It supports practical deployment in retail or industrial settings where security, visibility, and quick access control are required. Maintenance considerations include inspecting track alignment and fasteners, and choosing the appropriate locking option to match security needs. The product is non-returnable, per manufacturer terms, and ships as a ready-to-install configuration for rapid site deployment.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor use with resistance to heat, rain, snow, and harsh chemicals
- Fixed top frame with folding bottom track and adaptable track styles
- 1-year manufacturer warranty
- Padlock hasp standard; integrated cylinder lock option available
- Galvanized steel construction with powder coat color options on request
- Ships unassembled for flexible installation
- Width:
- 10'
- Height:
- 9'
- Max Width:
- 10'
- Folded Lattice Height:
- 9'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 225.0 lbs. ea.
- Package Size:
- Each
