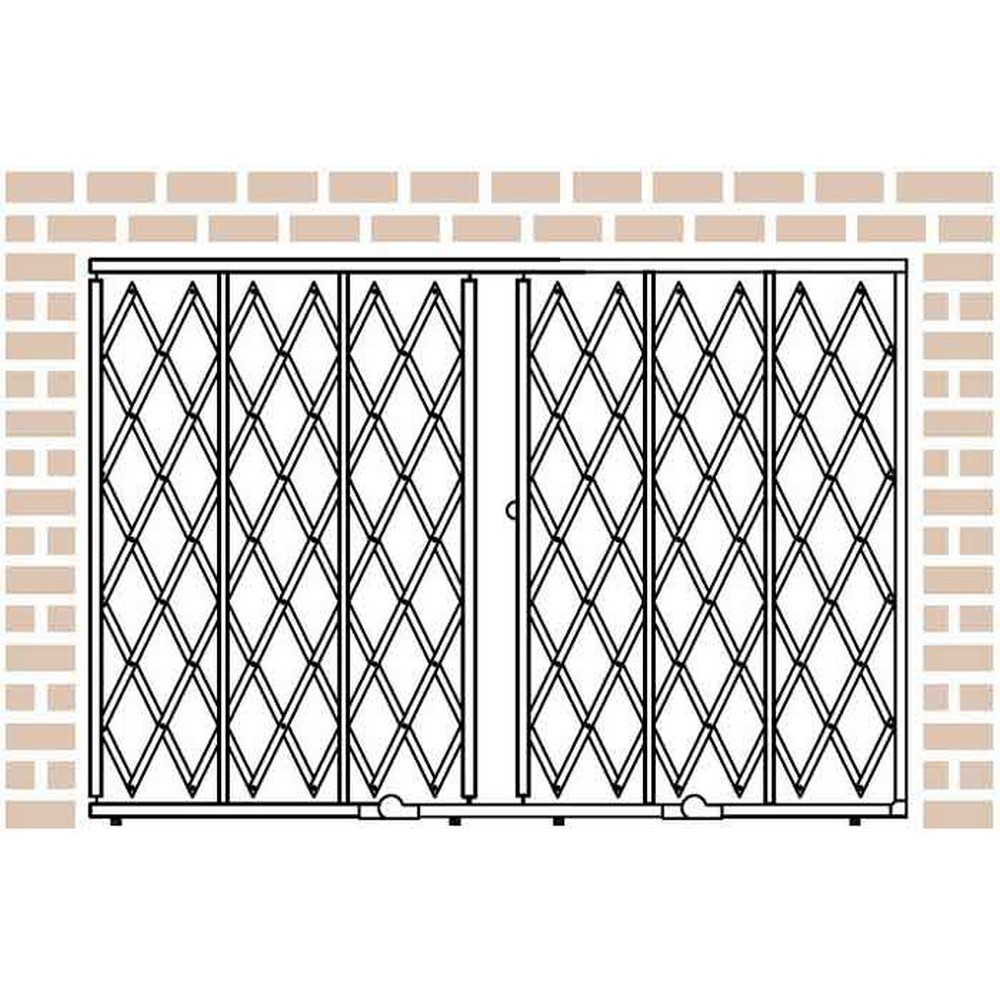

The HYDP990 storefront security gate from Illinois Engineered Products is a full-width, double-ended gate designed to secure storefronts, warehouse entries, or restricted areas. This pair gate uses a combination of vertical bars that ride in tracks with a scissor lattice to provide continuous coverage and enhanced loss prevention while still allowing rapid setup and expansion or retraction as needed. The assembly features a galvanized steel frame with a 14 gauge C-channel construction and a 3/8" x 3/4" 14 gauge lattice in U-channel steel, finished with rubber grommet feet to resist movement and wear on varied floor surfaces. A padlock hasp is included as standard, with an optional integrated cylinder lock for added access control, and the top and bottom tracks are designed to accommodate both fixed and expandable configurations.
This unit is built to withstand indoor and outdoor conditions, including exposure to heat, rain, snow, and common industrial cleaners. It ships unassembled, which is typical for large storefront gates, and weighs 203 pounds per gate, indicating a substantial, robust installation suitable for high-traffic security needs. Finish options include galvanized steel with powder coat colors available on request, enabling some customization to match facility aesthetics or branding. The HYDP990 is sized at 9 feet wide by 9 feet high, with a maximum width of 9 feet and a folded lattice height of 9 inches, making it a compact when retracted while offering full coverage when deployed.
Ideal use cases include sectioning off areas within a warehouse, protecting storefront entry points, or creating controlled zones within a retail or industrial facility. When planning installation, consider the track style (top and bottom) and whether you prefer a fixed top frame with a folding bottom, as these options influence how the gate expands, retracts, and anchors to surrounding structures. This product is sold as a pair gate and is a non-returnable item; verify mounting openings and track compatibility during site assessment to ensure proper fit and operation.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Durable galvanized steel construction suitable for indoor/outdoor use
- Weather and chemical resistant against heat, rain, snow, and cleaners
- Padlock hasp standard; integrated cylinder lock optional
- Top & bottom track styles available; ships unassembled
- 1-year manufacturer's warranty
- Fixed top frame with folding bottom option
- Width:
- 9'
- Height:
- 9'
- Max Width:
- 9'
- Folded Lattice Height:
- 9'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 203.0 lbs. ea.
- Package Size:
- Each
