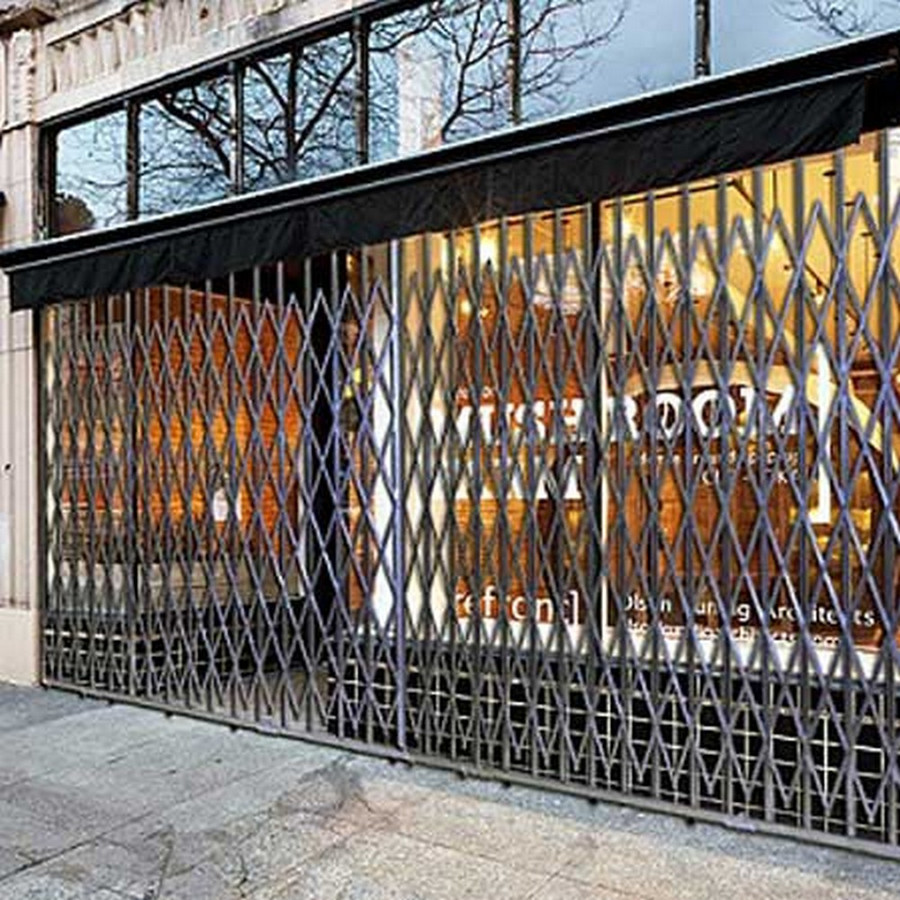

The HYDP1690 storefront security gate from Illinois Engineered Products provides a full-width, continuous barrier designed to secure storefronts, warehouse access points, or other high-traffic areas. This 16-foot-wide by 9-foot-high gate uses a hybrid construction that blends vertical bars riding in tracks with a traditional scissor lattice to deliver strong, perimeter-ready containment. The unit ships as a pair gate and arrives unassembled, enabling on-site installation that can be tailored to your space, width, and mounting preferences.
Constructed from galvanized steel with a 1-1/4" x 5/8" 14-gauge C-channel frame and 3/8" x 3/4" 14-gauge lattice, the HYDP1690 offers durable, weather-resistant performance suitable for indoor or outdoor use and capable of withstanding routine exposure to heat, rain, snow, and harsh cleaners or chemicals. The top and bottom tracks use box channel steel for secure guidance, and the system includes a standard padlock hasp with an optional integrated cylinder lock. Finish options include galvanizing with powder-coat colors available upon request, expanding compatibility with various facility aesthetics and requirements. The gate weighs approximately 360 lb per unit and is designed to be expanded or retracted as needed to control access quickly.
This unit’s practical design supports flexible security workflows: create temporary or semi-permanent barriers to direct customer or employee traffic, shield inventory, or partition off work zones. Careful attention to sizing and track configuration helps ensure smooth operation and reliable alignment across the full width. For installation considerations, verify your mounting surface and access to the 16-ft span, and plan for the included track styles (top and bottom) that best fit your space. Maintenance is straightforward: inspect hardware for wear, ensure pins and rivets remain secure, and keep tracks free of debris to maintain smooth operation.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor durability withstands heat, rain, snow, and chemicals
- Fixed top frame with folding bottom option available
- Galvanized steel construction with optional powder coat finish
- Padlock hasp standard; integrated cylinder lock optional
- Includes robust track and lattice hardware
- Ships unassembled for easy transport
- Width:
- 16'
- Height:
- 9'
- Max Width:
- 16'
- Folded Lattice Height:
- 9'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 360.0 lbs. ea.
- Package Size:
- Each
