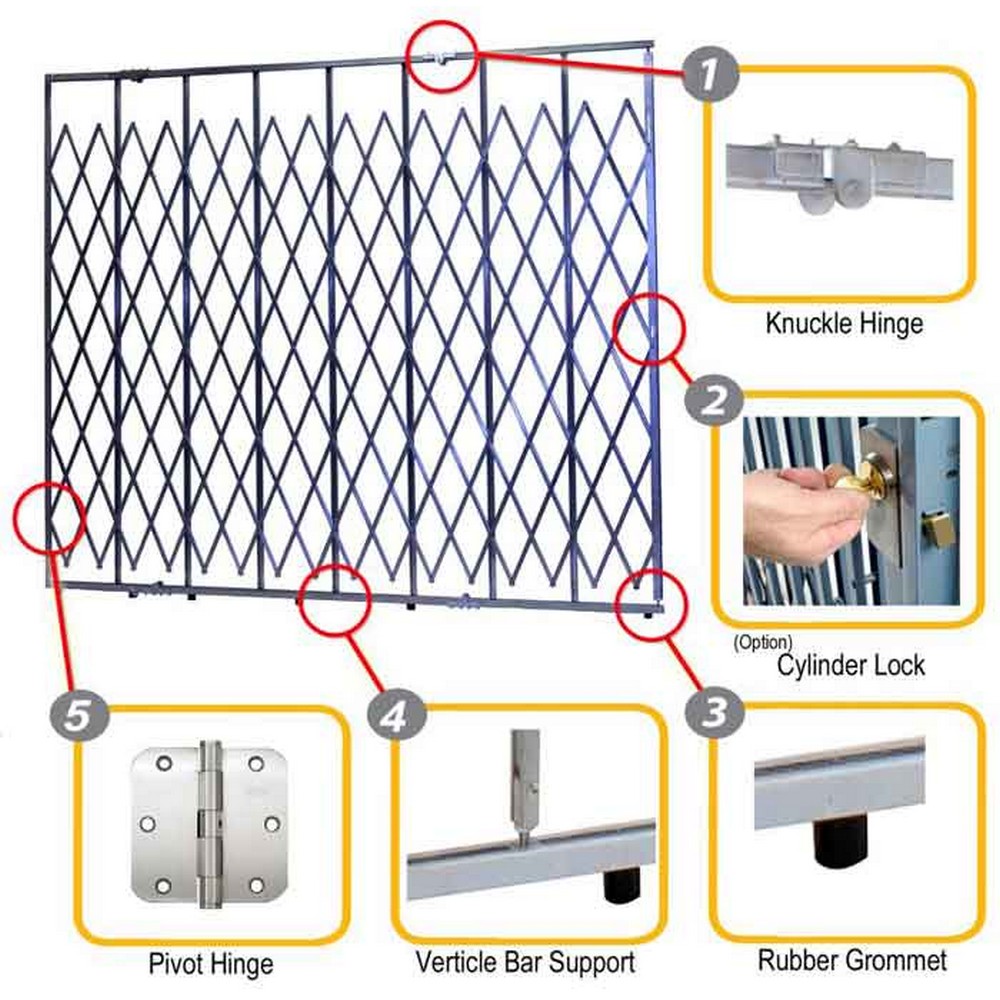

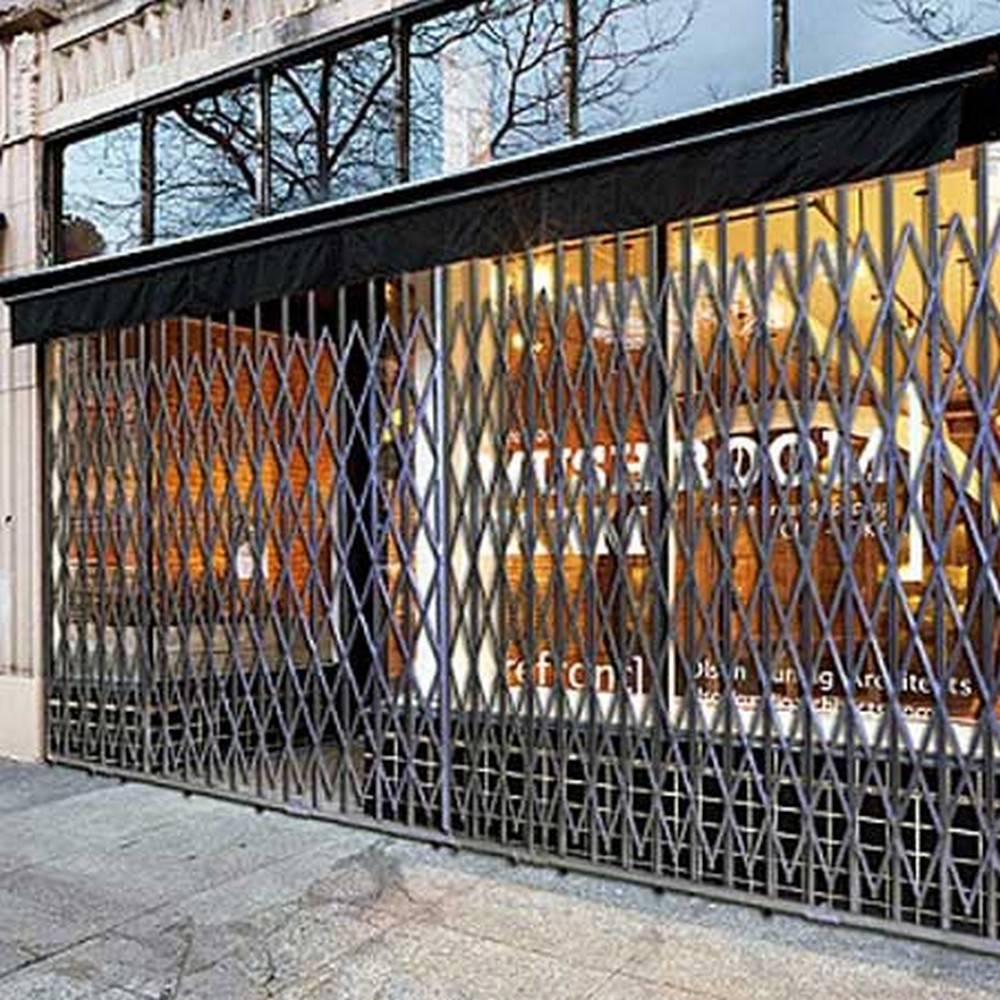

The Illinois Engineered Products HYDS980 storefront security gate is a full-width barrier designed to section off warehouse areas, storefronts, or other high-traffic spaces. This single gate spans 9 feet in width and 8 feet in height to provide continuous coverage, with a construction that combines vertical bars riding in tracks and a traditional scissor lattice for enhanced security and rigidity. It ships unassembled and is intended for quick setup, with a frame built from 1-1/4" x 5/8" 14-gauge C-channel steel and a 3/8" x 3/4" 14-gauge U-channel lattice reinforced by 1-1/4" x 1-2" zinc-plated steel rivets. The hardware is finished in galvanized steel with optional powder coat colors available on request to suit site aesthetics while preserving durability.
Features:
- Hybrid design combines vertical bars and scissor gates for complete coverage
- All-weather construction suitable for indoor and outdoor use
- Fixed top track with folding bottom option available
- Galvanized steel frame with durable lattice and hardware
- Padlock hasp included; integrated cylinder lock optional
- Ships unassembled for easier handling and installation
- 1-year manufacturer warranty
- Width:
- 9'
- Height:
- 8'
- Max Width:
- 9'
- Folded Lattice Height:
- 8'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 7.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 180.0 lbs. ea.
- Package Size:
- Each
