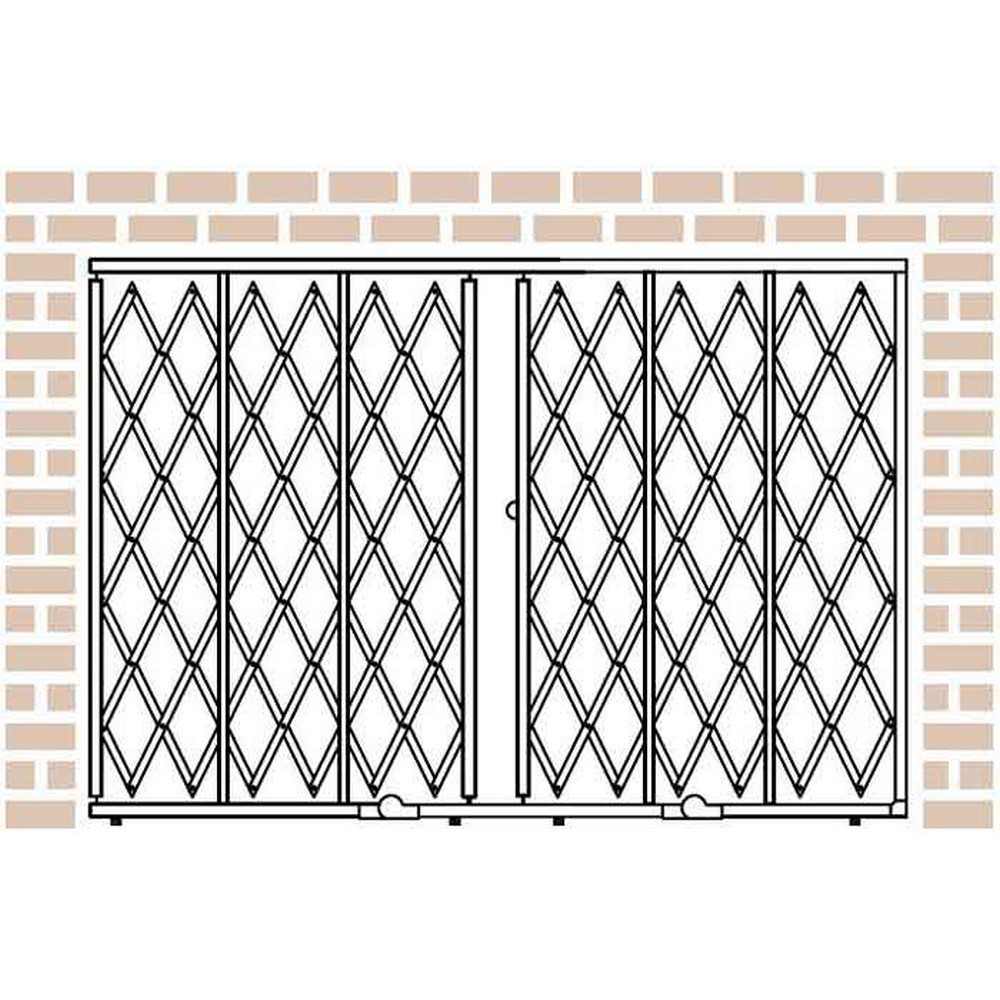

The Illinois Engineered Products HYDP1490 storefront security gate is a full-width solution designed to secure entrances and delineate areas in warehouses or storefronts. This paired gate setup spans 14 feet in width and stands 9 feet tall, providing continuous coverage that can be expanded or retracted as needed. The system combines vertical bars riding in tracks with a traditional scissor lattice to offer a robust barrier for loss prevention while allowing relatively swift setup and dismantling.
Construction details reflect a galvanized steel framework with 1-1/4" x 5/8" 14 gauge C-channel steel framing and 3/8" x 3/4" 14 gauge U-channel lattice, reinforced with zinc-plated rivets. The unit ships unassembled and weighs approximately 315 pounds per gate, requiring assembly prior to use. A padlock hasp is included as a standard locking option, with an integrated cylinder lock available as an upgrade. Finishing options include galvanized steel with powder coat colors available on request to suit site aesthetics and corrosion considerations.
Use this storefront security gate where a fixed top and folding bottom design suits your space constraints and operational needs. It’s configured for both indoor and outdoor environments and is designed to withstand exposure to heat, rain, snow, and common industrial chemicals or cleaners. The product is sold as a pair gate and is non-returnable, reflecting its specialized industrial application and installation requirements. Maintenance generally involves ensuring the rails and lattice remain free of debris and inspecting locking mechanisms for secure operation to support ongoing loss prevention efforts.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Versatile indoor/outdoor performance against heat, rain, snow, and chemicals
- Top fixed track and folding bottom track option
- Galvanized steel construction with optional powder coat finish
- Sturdy 14 gauge C-channel and 14 gauge U-channel steel framing
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for easy installation
- Width:
- 14'
- Height:
- 9'
- Max Width:
- 14'
- Folded Lattice Height:
- 9'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 8.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 315.0 lbs. ea.
- Package Size:
- Each
