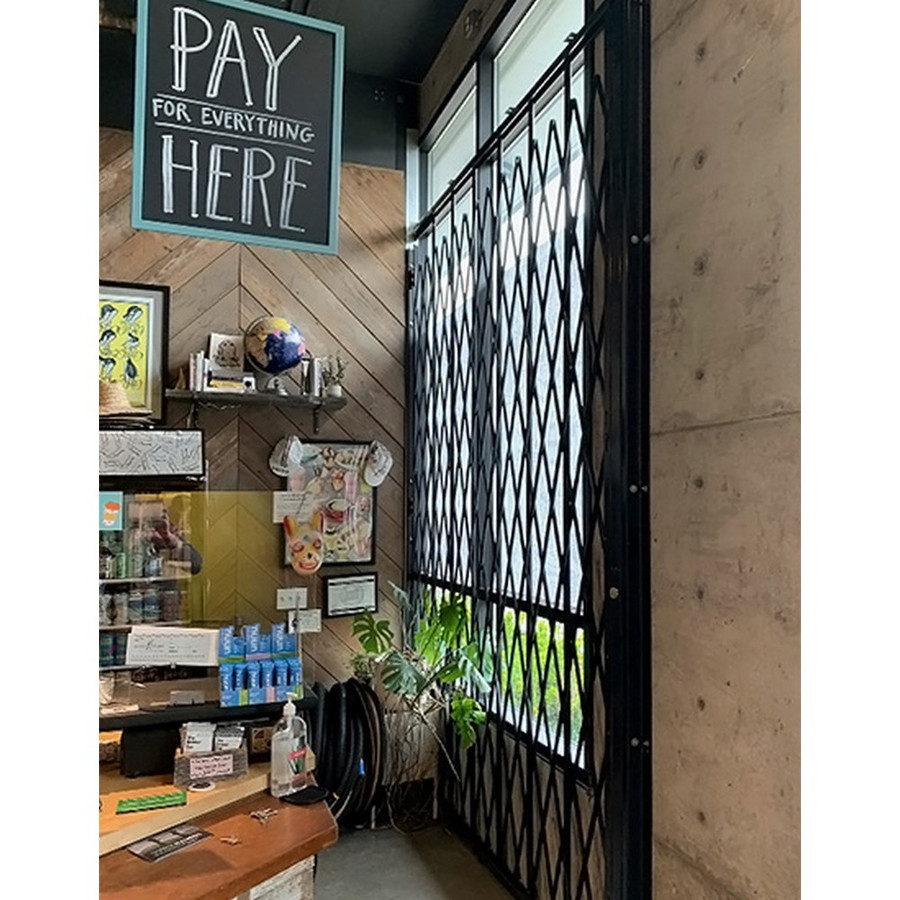

The Illinois Engineered Products HYDS970 storefront security gate is a full-width, single-gate solution designed to help secure storefronts or warehouse entryways. With a 9' wide and 7' high footprint, this gate uses a combination of vertical bars riding in tracks and traditional scissor lattice to provide continuous coverage and obstruction while remaining operable for quick expansion or retraction. The frame is constructed from 1-1/4" x 5/8" 14-gauge C-channel steel with rubber-grommet feet, and the lattice features 14-gauge U-channel steel with zinc-plated rivets, delivering a sturdy, corrosion-resistant assembly. The unit ships unassembled and includes a padlock hasp as a standard locking option, with an integrated cylinder lock available as an upgrade. The product finish is galvanized steel, and powder coat colors are available on request, offering an option to match building aesthetics or branding.
This storefront gate is designed for both indoor and outdoor installation and is built to withstand harsh conditions, including heat, rain, snow, and exposure to industrial cleaners or chemicals. The top and bottom track styles are compatible with this design, and there are other sizes and configurations available in the line if you need to extend coverage or modify the mounting approach. The HYDS970 weighs approximately 158 pounds per unit and is intended for installation by customers or contractors capable of assembling unassembled components and anchoring the frame and tracks as required.
Considerations for use include ensuring the installation location can accommodate a full-width, continuous gate and that mounting surfaces are suitable for the track hardware. Because this is a single-gate storefront solution, plan for access requirements, whether you need to expand the opening or maintain a clear path for personnel and equipment. The product is backed by a 1-year manufacturer warranty, offering coverage against manufacturing defects under normal use.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Industrial-grade galvanized steel construction
- Indoors or outdoors, resistant to heat, rain, snow and cleaners
- Top & bottom track styles available; multiple sizes offered
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for flexible installation
- 9' W x 7' H single gate design
- Width:
- 9'
- Height:
- 7'
- Max Width:
- 9'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 158.0 lbs. ea.
- Package Size:
- Each
