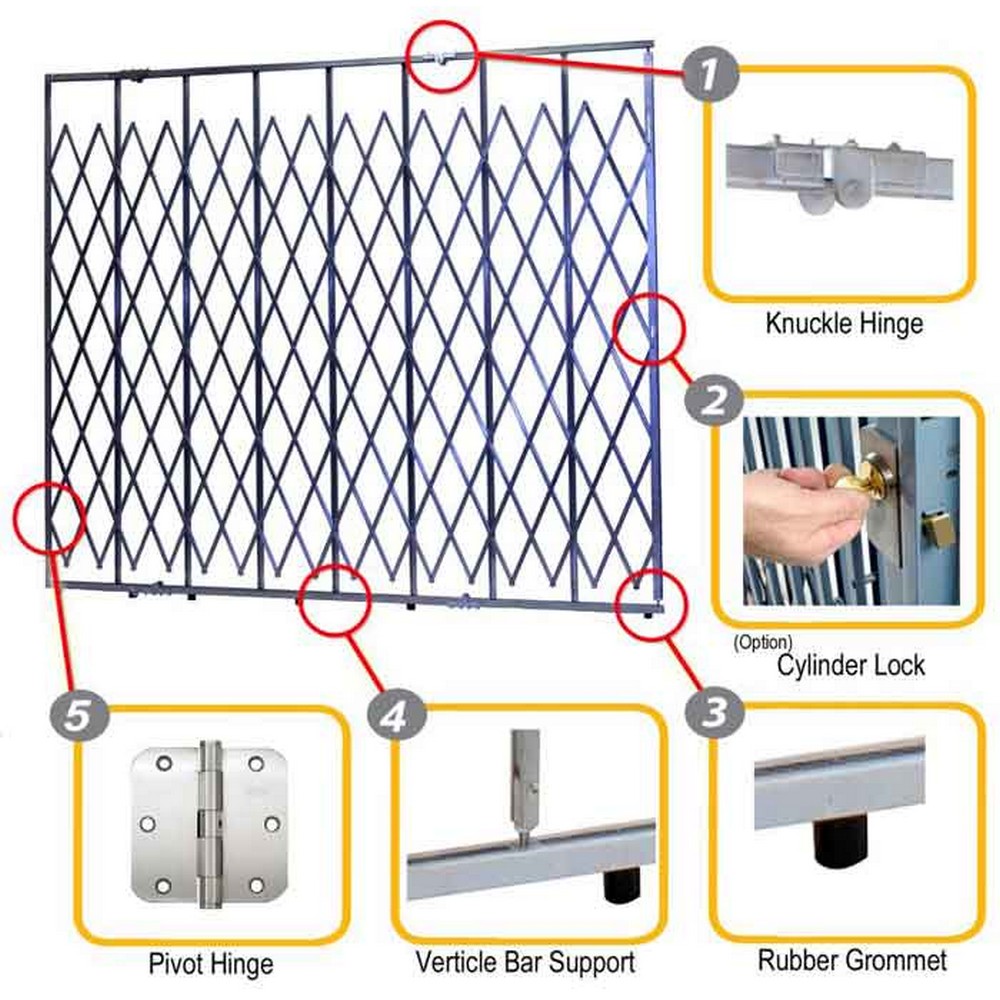

The Illinois Engineered Products HYDP9105 storefront security gate provides a full-width barrier designed to secure storefronts, warehouses, or interior access points. This pair gate setup uses a combination of vertical bars that ride in tracks and a scissor lattice to deliver continuous coverage across a 9' wide by 10.5' high opening. The assembly features a fixed top frame and a bottom lattice that folds, enabling rapid expansion or retraction as needs change, and ships unassembled for convenient handling and storage. Constructed from galvanized steel with a 14-gauge frame and 14-gauge lattice, the gate is finished to resist typical industrial conditions, while powder coat options can be requested to suit site aesthetics. A padlock hasp comes standard for basic security, with an integrated cylinder lock available as an optional upgrade, providing flexible access control.
In practical use, this gate is well-suited for partially or fully partitioning high-traffic areas, protecting inventory, and demarcating restricted zones without permanently altering the space. It is designed for both indoor and outdoor environments and is specified to tolerate exposure to heat, rain, snow, and industrial cleaners or chemicals common to maintenance operations. The product is sold as a pair gate and is shipped with the required hardware to enable installation, though it is non-returnable. Compatibility notes include a fixed top frame, a 1-1/4" x 5/8" 14-gauge steel top rail, and a 3/8" x 3/4" 14-gauge lattice with zinc-plated rivets, ensuring a robust, rigid barrier appropriate for storefront or wide-entry applications.
Features:
- Combination of vertical bars and scissor gates for total coverage and enhanced security
- Designed for indoor and outdoor use, resistant to heat, rain, snow, and harsh chemicals
- Top fixed frame with folding bottom lattice for adaptable access
- 1-1/4" x 5/8" 14 gauge C-channel frame with rubber grommet feet
- 3/8" x 3/4" 14 gauge lattice with zinc-plated rivets
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel finish with powder coat colors available on request
- Width:
- 9'
- Height:
- 10.5'
- Max Width:
- 9'
- Folded Lattice Height:
- 10.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 10'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 236.0 lbs. ea.
- Package Size:
- Each
