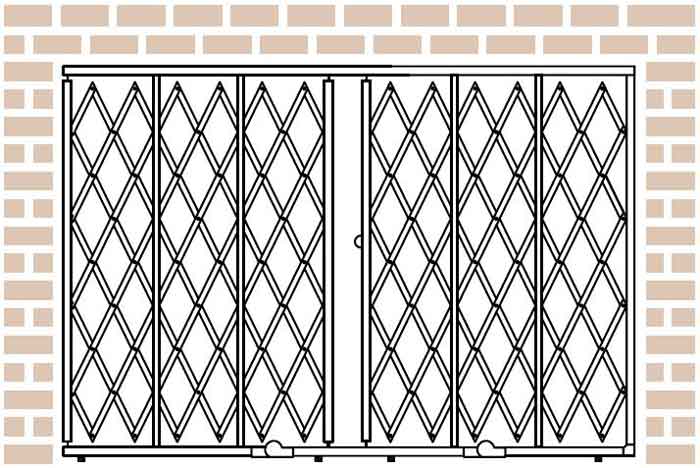

The Illinois Engineered Products HYDP1295 storefront security gate is a full-width barrier designed to secure store entrances, warehouse openings, or other high-traffic areas. This pair-gate system combines vertical bars riding in tracks with a scissor lattice, delivering continuous coverage that can be expanded or retracted as needed. The unit is configured for a 12' wide opening and stands 9.5' high in its unfolded state, providing a robust physical deterrent for loss prevention in both indoor and outdoor environments.
Constructed from galvanized steel with 14-gauge and 1/4" to 1-1/2" detailing, the gate features a fixed top frame and a lattice that extends to its full height. The design accommodates a padlock hasp as a standard locking option, with an integrated cylinder lock available as an upgrade. Finishes include galvanized steel, with powder-coated color options upon request, and rubber grommet feet to help protect floor surfaces. The assembly ships unassembled, and the overall weight is substantial, reflecting its industrial-grade construction and intended for permanent or semi-permanent installation.
This storefront security solution is suited for securing storefronts, inventory corridors, or restricted access points where quick deployment and reliable deterrence are required. It supports a full-width barrier that can be paired with other top or bottom track configurations to suit specific site layouts and blocking needs. When planning installation, consider the 12' width, 9.5' height, and the need for stable anchoring to maintain performance under varying weather and use conditions.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Stands up to indoor and outdoor conditions including heat, rain, snow, and harsh chemicals
- Fixed top frame with folding bottom lattice design; 12' width x 9.5' height
- Heavy-duty 14-gauge steel construction with galvanized finish; powder coat colors available
- Padlock hasp standard; integrated cylinder lock option available
- Ships unassembled; pair gate with track options and other sizes
- Width:
- 12'
- Height:
- 9.5'
- Max Width:
- 12'
- Folded Lattice Height:
- 9.5'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 9'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 285.0 lbs. ea.
- Package Size:
- Each
