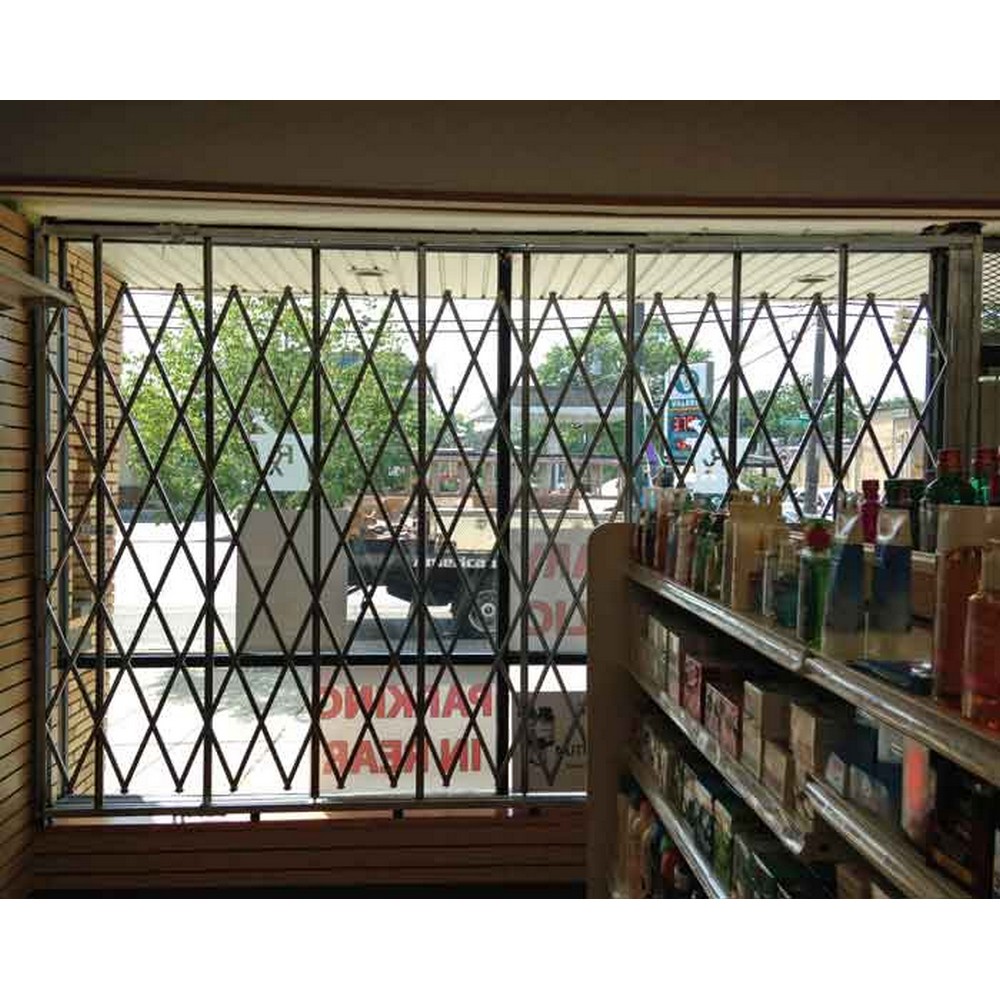

The Illinois Engineered Products HYDP1170 storefront security system is designed to create a clear, adjustable barrier across wide openings. This full-width gate pair combines vertical bars with a folding, scissor-style lattice to deter unauthorized access while permitting quick expansion or retraction as needs change. With a total width of 11 feet and a height of 7 feet, the assembly is built to cover storefronts or warehouse entryways in a single installation, and it rolls smoothly when the sections are moved. The system ships unassembled but is designed for straightforward setup, enabling a relatively fast deployment to deter loss when a permanent partition isn’t feasible.
Key construction details support performance in variable conditions. The frame uses 1-1/4 inch by 5/8 inch 14-gauge C-channel steel with rubber grommet feet, while the lattice is 3/8 inch by 3/4 inch 14-gauge U-channel steel and secured with zinc-plated hardware. Galvanized steel is the base finish, with powder coat color options available on request, offering corrosion resistance for indoor or outdoor applications. A standard padlock hasp is provided, and an integrated locking cylinder is optional, giving facilities a choice of security level. Top and bottom tracks measure 1-7/8 inch by 1-3/8 inch 11-gauge box channel steel, which help maintain gate alignment during operation.
This product is intended for spaces that require a secure, semi-permanent barrier that can be deployed quickly and stored when not in use. It is sold as a pair gate, with a weight of approximately 193 pounds per unit, and is designed for indoor or outdoor environments where harsh weather and routine cleaning chemicals may be present. Because it ships unassembled, some installation time is expected, and customers should verify fit within their opening dimensions and ensure proper mounting of tracks and supports. The HYDP1170 is non-returnable and carries a one-year manufacturer warranty to cover manufacturing defects under normal use.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor and outdoor readiness with weather and chemical resistance
- Top and bottom track styles available, with other sizes
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized finish with optional powder coat colors
- Sturdy construction: 1-1/4" x 5/8" 14 gauge C-channel frame; lattice 14 gauge U-channel with rivets
- Width:
- 11'
- Height:
- 7'
- Max Width:
- 11'
- Folded Lattice Height:
- 7'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 6.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 193.0 lbs. ea.
- Package Size:
- Each
