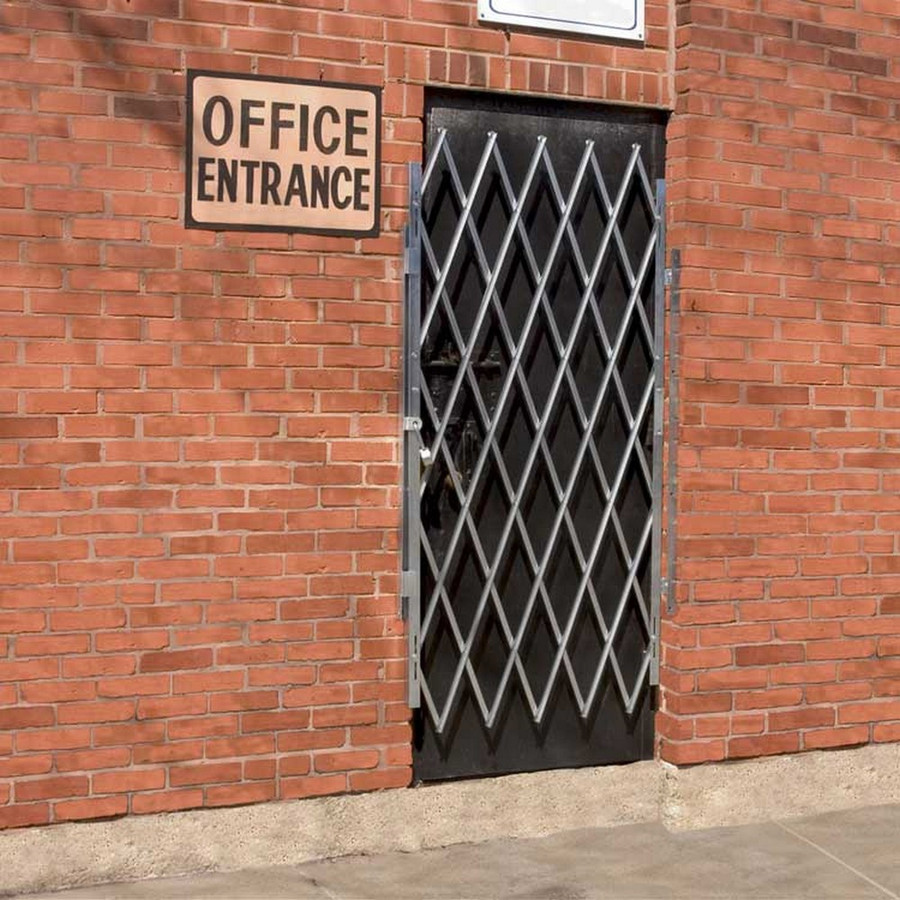

The Illinois Engineered Products D-49 Retractable Folding Door Gate is a compact door-fix solution designed for smaller openings where standard folding gates won’t fit. This hinged gate can be mounted on either the left or right side and can be installed in the door casing or on the door face, inside or outside the jamb. When in use, it provides a security gate for high-traffic hallways or entryways, while retracting completely out of the doorway to keep the passage unobstructed when access is needed. The unit ships unassembled, allowing for on-site fitting and adjustment to the exact doorway dimensions.
Construction emphasizes durability and weather resistance. The gate uses heavy-duty galvanized steel with a robust 12-gauge 3/4
Features:
- Fits smaller openings than standard gates
- Mounts on left or right side, in casing or on door face
- Heavy-duty galvanized steel for weather resistance
- Heavy U-channel webbing riveted back-to-back with aircraft aluminum rivets
- Frame: 14-gauge vertical angles with 48" locking bar and padlock hasp
- Ships unassembled for transport and installation flexibility
- Width:
- Up to 48
- Height:
- 49
- Depth:
- 11 stacked
- Expanded Height:
- 43
- Collapsed Height:
- 49
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 25.0 lbs. ea.
- Package Size:
- Each
