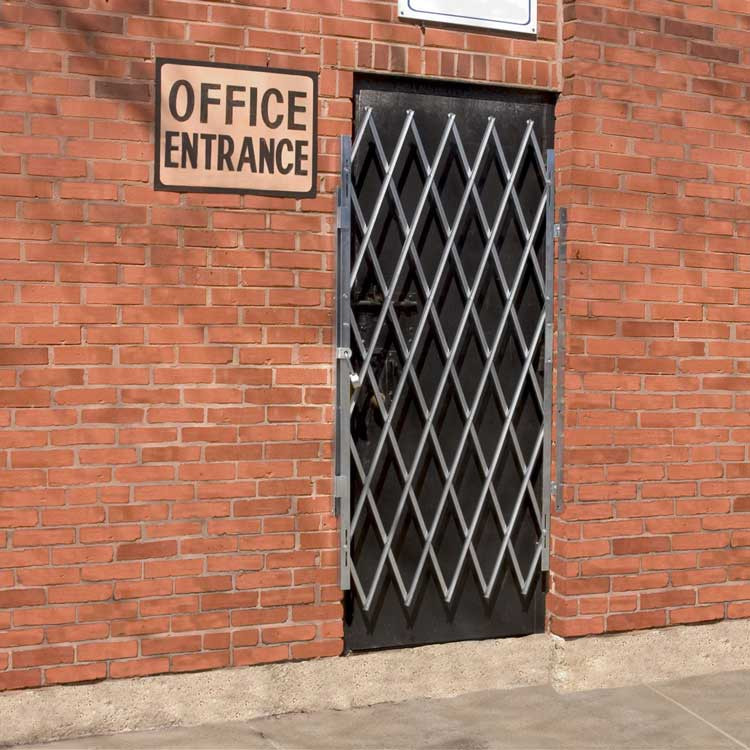

The IEPD-51 is a retractable folding door gate designed for smaller door openings, providing a safe, obstruction-free doorway in high-traffic areas. This hinged gate can be mounted on either side, in the casing or on the door face (inside or outside the jamb), and accommodates openings up to 48 inches wide and 51 inches high. When not in use, it collapses completely out of the way to keep passage unobstructed while maintaining a secure barrier when deployed.
Constructed for durability, the gate employs heavy-duty galvanized steel framing and 12-gauge, 3/4" x 3/8" steel U-channel webbing that is riveted back-to-back with aircraft-quality aluminum rivets. The frame uses 14-gauge vertical angles with a 48" locking bar and hasp for padlock security (padlock not included). The galvanized finish provides corrosion resistance in varied weather conditions, extending practicality across multiple environments. Assembly is required prior to installation.
This model is particularly suited for securing narrow hallways or entryways in commercial, industrial, or facility settings where footprint is limited but a reliable gate is needed. Maximum width is 48" with a height of 51" when deployed, and characteristics such as mounting flexibility and a compact footprint support customization for specific doorway layouts. Verify fit for your doorway dimension and accessible door clearance before ordering, and note that custom sizing and powder coat finishes are available through inquiry, potentially affecting lead time.
Features:
- Designed for smaller openings
- Left or right side mounting, in casing or on door face
- Heavy-duty galvanized steel construction
- Heavy U-channel webbing riveted with aircraft aluminum rivets

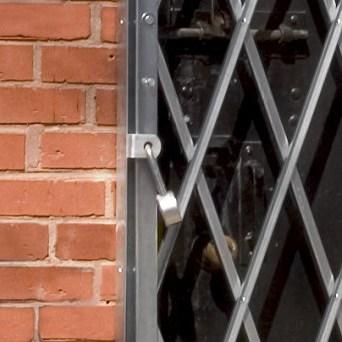

- Frame includes 48" locking bar and padlock hasp (padlock not included)
- Ships unassembled
- Weight: 26.0 lbs per unit
- Width:
- Up to 48
- Height:
- 51
- Depth:
- 11 stacked
- Expanded Height:
- 45
- Collapsed Height:
- 51
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 26.0 lbs. ea.
- Package Size:
- Each
