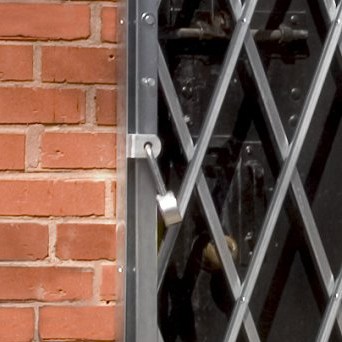

The Illinois Engineered Products D-83 Retractable Folding Door Gate is designed for smaller door openings where a folding gate is needed but space is at a premium. This hinged door gate can be mounted on either side of the opening, in the casing or on the door face, and it expands to a maximum width of 48 inches while standing 83 inches tall. When not in use, it collapses completely out of the way to keep door openings unobstructed, helping to maintain traffic flow in busy hallways or entryways. The unit ships unassembled and is finished in galvanized steel, which provides corrosion resistance across a range of environments.
Constructed for durability in varied weather and conditions, the gate features heavy-duty 12-gauge 3/4" x 3/8" steel U-channel webbing riveted back-to-back with aircraft-grade aluminum rivets. This rivet construction is selected to resist cracking, rust, and failure under stress, supporting reliable operation in demanding industrial settings. The frame employs heavy 14-gauge 1-1/2" x 1-1/2" vertical angles, with a 48" locking bar and padlock hasp for added security. Note that the padlock itself is not included, so users can select a lock that meets their security needs.
This product is tailored for facilities needing a retractable solution in smaller openings where walk-through access is essential and space cannot be sacrificed by a full-width gate. When considering use, ensure the opening is within the 48" width and 83" height specifications, and plan for assembly prior to installation. It is suitable for high-traffic environments in a variety of industries and can be customized in powder coat finishes on request, though standard galvanized finish is specified for this model.
Features:
- Designed to fit smaller openings than standard gates
- Can be mounted on left or right side, in casing, or on door face
- Heavy-duty galvanized steel for weather resistance
- Heavy 12-gauge U-channel webbing riveted back-to-back with aircraft aluminum rivets
- 14-gauge vertical frame angles with 48" locking bar and padlock hasp
- Padlock not included
- Width:
- Up to 48
- Height:
- 83
- Depth:
- 11 stacked
- Expanded Height:
- 77
- Collapsed Height:
- 83
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 52.0 lbs. ea.
- Package Size:
- Each
