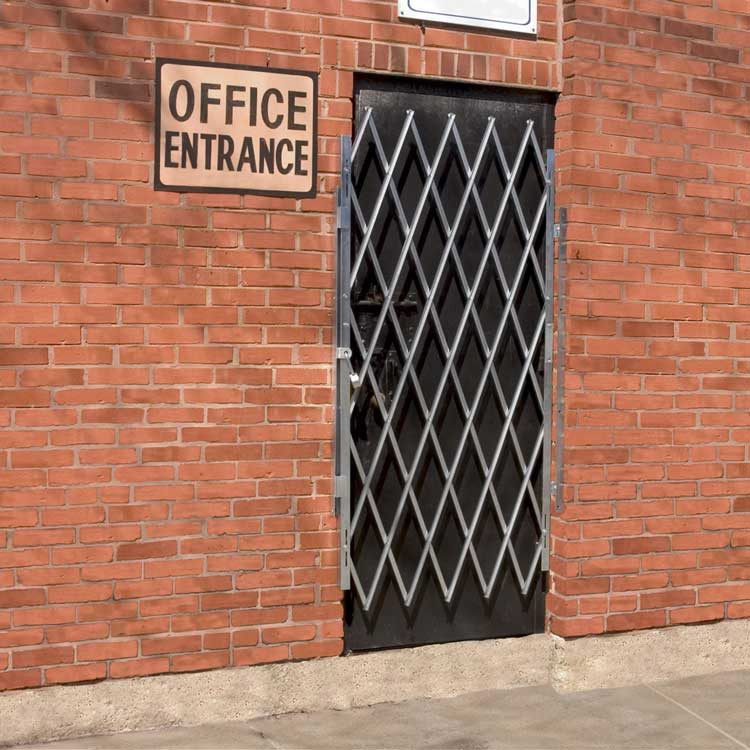

The Illinois Engineered Products D-31 Retractable Folding Door Gate is a compact securing solution designed for smaller door openings up to 48 inches wide. This hinged door gate folds neatly out of the way when not in use, helping maintain an obstruction-free doorway while still providing a barrier to control access or separate spaces in busy hallways, entryways, or corridors. It can be mounted on either the left or right side and can be installed in the door casing or on the door face, offering flexible installation options to fit the specific entry layout.
Constructed to withstand a wide range of environmental conditions, the gate uses heavy-duty galvanized steel and a robust U-channel framework. The lattice consists of heavy-duty 12-gauge steel U-channel webbing riveted back-to-back with aircraft-grade aluminum rivets, designed to resist stress without cracking, rusting, or separating. The frame is built from 14-gauge, 1-1/2-inch by 1-1/2-inch vertical angles, with a 48-inch locking bar and padlock hasp (padlock not included), providing a durable, secure barrier. The unit ships unassembled, enabling on-site fitting for varied door and jamb configurations, and it finishes in galvanized coating for durability in outdoor or high-moisture environments.
Ideal for securing high-traffic doorways in a range of facilities—manufacturing floors, warehouses, or commercial hallways—without intruding into the doorway when opened. Consider sizing and mounting requirements to ensure the gate folds completely clear of the opening when retracted. The product is offered with optional custom sizing and powder coat finishes if standard dimensions are insufficient, noting that these options may extend shipping time. Each gate weighs approximately 16 pounds and ships as an individual unit in its own packaging.
Features:
- Fits smaller openings than standard gates
- Left or right side mounting options
- Casing or door-face installation capability
- Heavy-duty galvanized steel construction withstands extreme weather
- Heavy U-channel webbing with aircraft aluminum rivets for durability

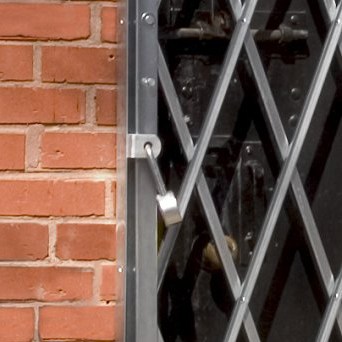

- Includes heavy-duty frame with 48" locking bar and padlock hasp (padlock not included)
- Width:
- Up to 48
- Height:
- 31
- Depth:
- 11 stacked
- Expanded Height:
- 25
- Collapsed Height:
- 31
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 16.0 lbs. ea.
- Package Size:
- Each
