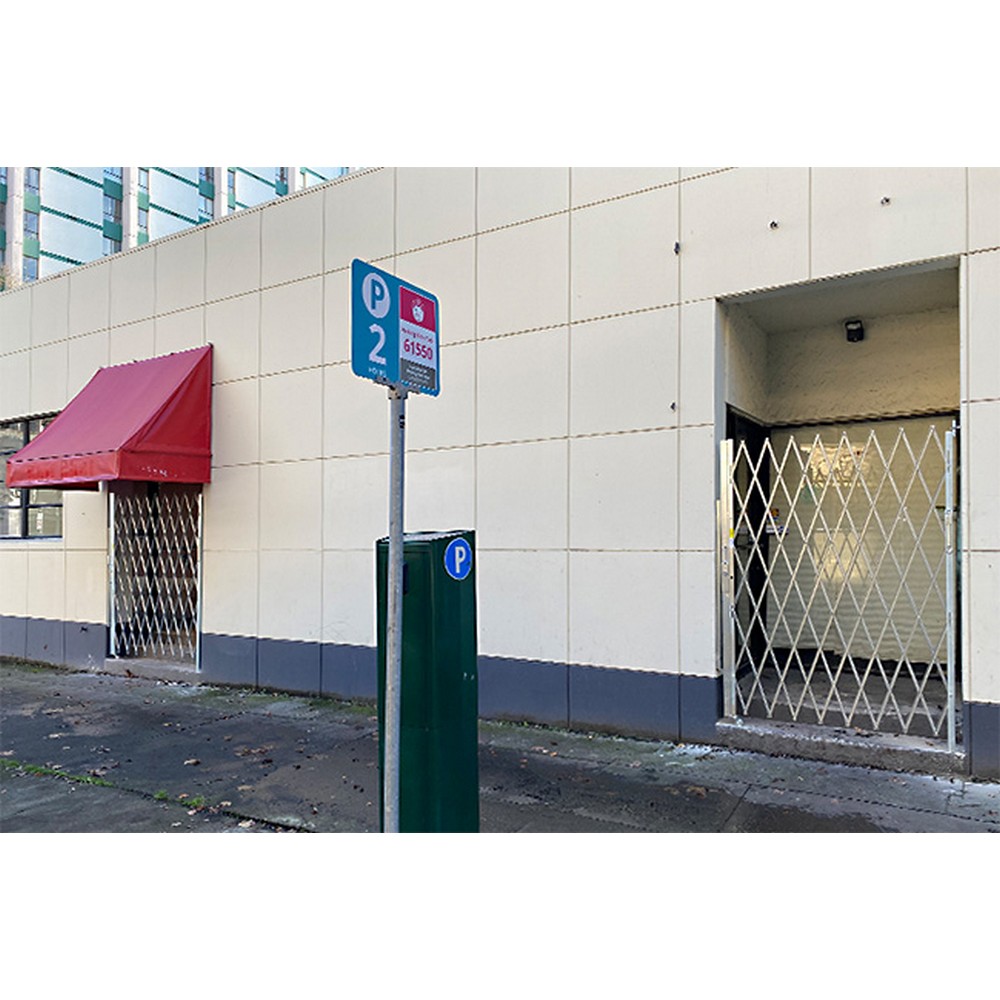

The Illinois Engineered Products D-37 Retractable Folding Door Gate is designed to secure smaller door openings while keeping access unobstructed. With a maximum width of 48 inches and a height of 37 inches, this hinge-mounted door gate folds away completely to permit 100% unobstructed doorway clearance when not in use, making it suitable for high-traffic hallways or entryways in a variety of facilities.
Constructed for durability, the gate features heavy-duty galvanized steel framing and a robust lattice built from 12-gauge, 3/4" x 3/8" steel U-channel webbing. The webbing is riveted back-to-back with aircraft-quality aluminum rivets to resist stress and prevent cracking, rust, or separation in harsh weather conditions. The vertical frame angles are 14-gauge steel, providing a solid support structure, and the included 48" locking bar and padlock hasp offer a secure closure option (padlock not included). The system ships unassembled, which may affect installation time and require some assembly prior to mounting.
The D-37 offers flexible installation options: it can be mounted on the left or right side, within the door casing, or on the door face—inside or outside the jamb—accommodating various doorway configurations. Its galvanized finish adds weather resistance and helps maintain a functional gate in environments exposed to heat, cold, rain, or snow. For facilities needing custom dimensions or a different finish, Illinois Engineered Products notes that custom sizing and powder coat finishes are available, though these options may extend shipping time.
Features:
- Designed to fit smaller openings than standard gates
- Mountable on left or right side, in casing, or on door face
- Heavy-duty galvanized steel construction for weather resistance
- Heavy U-channel webbing riveted back-to-back with aircraft aluminum rivets
- Frame uses 14-gauge 1-1/2" x 1-1/2" vertical angles
- Includes 48" locking bar and padlock hasp (padlock not included)
- Ships unassembled for custom installation
- Width:
- Up to 48
- Height:
- 37
- Depth:
- 11 stacked
- Expanded Height:
- 31
- Collapsed Height:
- 37
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 20.0 lbs. ea.
- Package Size:
- Each
