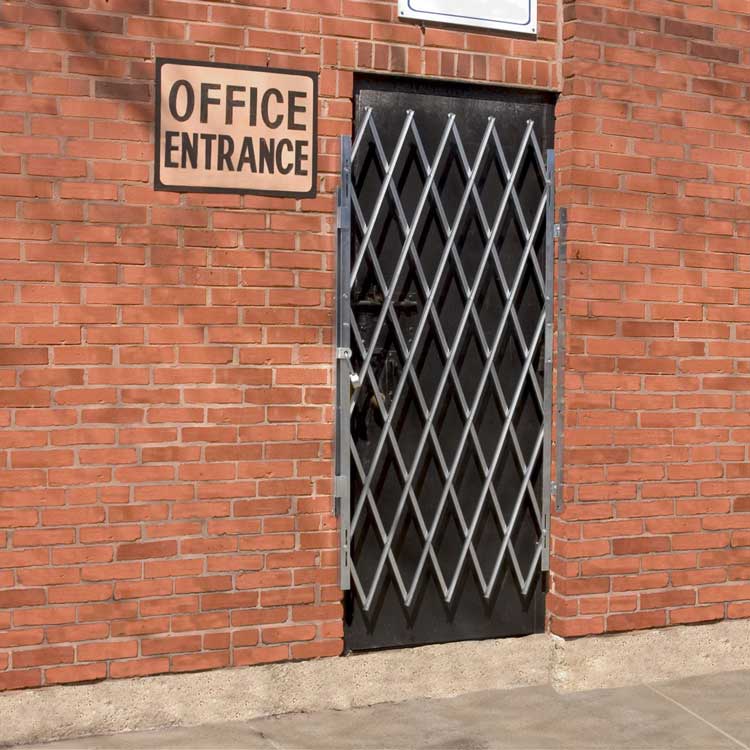

The Illinois Engineered Products D-71 Retractable Folding Door Gate is designed to secure small door openings while preserving accessible clearance. This hinged door gate collapses completely out of the way, creating an obstruction-free passage when not in use and enabling safe door openings in high-traffic hallways or entryways across various industries. The unit is built to accommodate openings up to 48 inches wide and 71 inches high, with a footprint that stacks to 11 inches and expands to 65 inches in height as needed during installation.
Constructed for demanding environments, the gate uses heavy-duty galvanized steel framing and a robust 12-gauge 3/4 inch by 3/8 inch steel U-channel webbing. The webbing is riveted back-to-back with aircraft-quality aluminum rivets, providing strength without cracking, separating, or rusting under stress. The frame employs heavy-duty 14-gauge vertical angles and includes a 48-inch locking bar with a padlock hasp for securing the gate when closed. Finish is galvanized to resist corrosion, helping the assembly withstand weather exposure in outdoor or semi-exposed sites.
The D-71 can be mounted on either the left or right side, and it can be placed in the casing or on the door face (inside or outside the jamb) to suit existing door configurations. Each unit ships unassembled and is offered with customization options such as powder-coated finishes and custom sizing, though lead times will be longer for these variations. This gate is specified as a door gate for securing narrower entryways while maintaining open clearance when needed.
Features:
- Fits smaller openings than standard gates
- Left or right side mounting in casing or on door face
- Heavy-gauge galvanized steel construction
- Heavy U-channel webbing riveted with aircraft aluminum rivets
- Frame includes 14-gauge vertical angles and 48" locking bar with padlock hasp (padlock not included)
- Ships unassembled for transport and installation
- Weather resistant design for diverse climates
- Width:
- Up to 48
- Height:
- 71
- Depth:
- 11 stacked
- Expanded Height:
- 65
- Collapsed Height:
- 71
- Assembly:
- Ships unassembled
- Lattice:
- Heavy-duty 12-gauge 3/4 x 3/8 steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Frame:
- Heavy-duty14-gauge 1-1/2 x 1-1/2 vertical angles with 48 locking bar and padlock hasp Padlock not included
- Finish:
- Galvanized finish
- Type:
- Door Gate
- Weight:
- 45.0 lbs. ea.
- Package Size:
- Each
