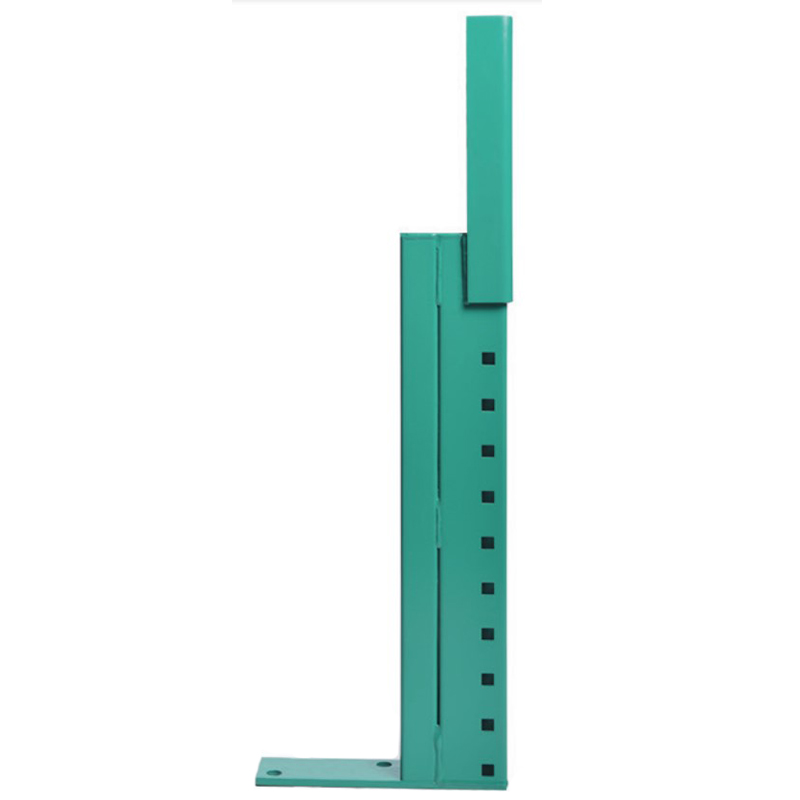

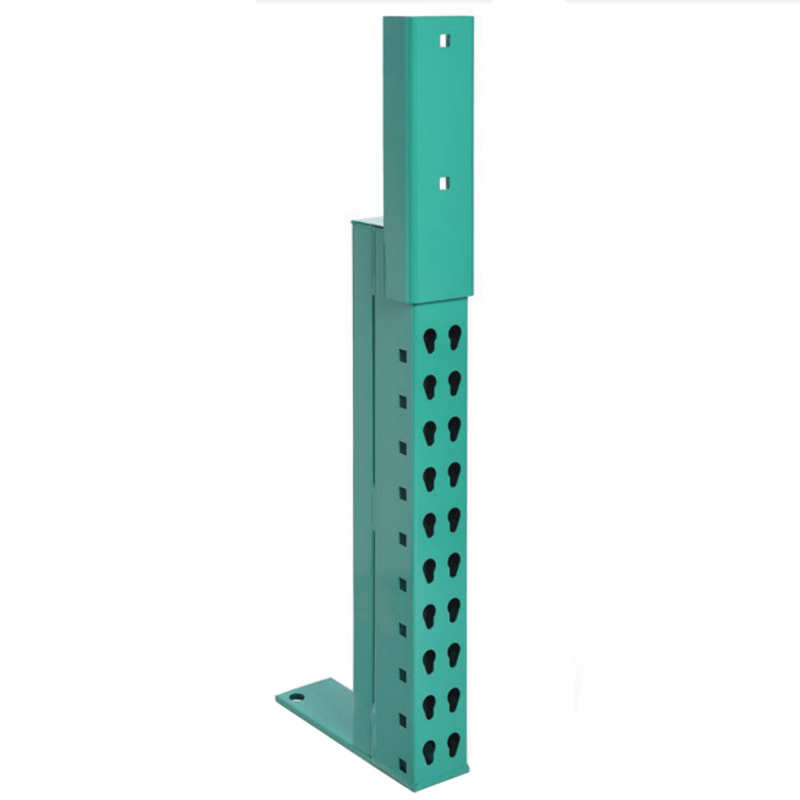

The Worldwide Material Handling 72" Pallet Rack Column Repair Kit is designed to address common pallet rack damage, especially to the front column, by providing a robust, bolt-in solution that helps restore alignment and load-bearing integrity without welding. This kit is built around 10-gauge steel, with 1/4-inch-thick steel connection channels and a 4" x 12" x 5/16"-thick footplate, engineered to distribute impact forces and stabilize the rack frame when installed to an existing column.
The kit uses all-bolted installation with Grade 5 hardware, eliminating welding requirements and enabling straightforward Field retrofit. It features mounting provisions to prevent column twisting and includes two concrete anchors plus hardware to attach to the existing frame column. With multiple OEM punch patterns available, the solution accommodates a variety of pallet rack configurations while delivering a powder-coated finish for durability in warehouse environments. The in-stock lengths range from 24" to 84" in 12" increments, allowing you to select a size that aligns with your column height and the extent of the damage observed.
Practical use of this repair kit involves replacing damaged front columns or reinforcing compromised areas to extend the life of existing pallet rack frames. The 72" seat height and overall dimensions indicate the kit is intended for mid-to-full-height columns in standard industrial racking setups, and the included hardware supports installation to an existing frame without altering the original rack structure. When considering replacement or repair, verify compatibility with your current pallet rack model, confirm the available OEM punch pattern, and ensure correct anchoring to concrete surfaces for a stable, long-lasting retrofit.
Features:
- 10 ga. steel construction for durability
- In-stock lengths from 24" to 84" in 12" increments
- All-bolted installation with Grade 5 hardware
- 1/4"-thick steel connection channels for rigidity
- 4" x 12" x 5/16"-thick footplate
- Installs with two 3/4" anchors to prevent twisting
- Over 12 OEM punch patterns available
- High-quality powder coat finish
- 24" Seat Height, 10 ga
- Includes hardware to attach to existing frame column and 2 concrete anchors
- Material:
- Steel
- Length:
- 12
- Width:
- 3
- Seat Height:
- 72
- Overall Height:
- 81
- Package Size:
- Each
