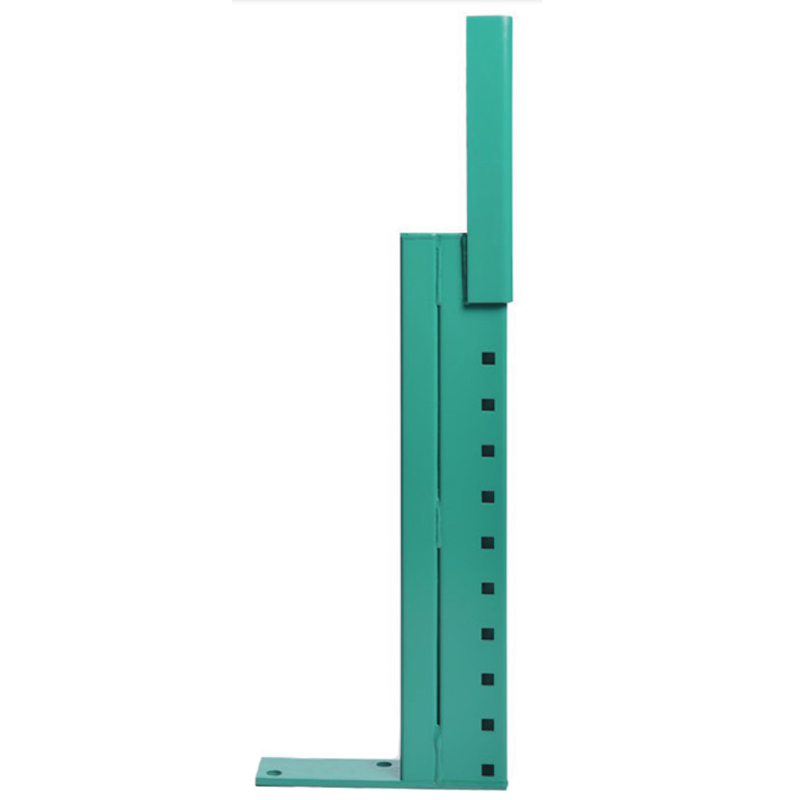

The Worldwide Material Handling NDRC06000B3E0TDBG is a pallet rack column repair kit designed to restore structural integrity after forklift impact or other damage to front pallet rack columns. Built from 10 gauge steel, the kit is configured for bolted installation using Grade 5 hardware, eliminating the need for welding. A 1/4-inch-thick steel connection channel provides a rigid mounting interface, while a 4x12x5/16-inch footplate helps distribute load and stabilize the repaired section. The package includes hardware to attach to the existing frame column and two concrete anchors, supporting secure fixation to both rack structures and concrete floors where applicable.
According to Worldwide Material Handling, the solution accommodates a broad set of rack configurations with more than 12 OEM punch patterns, which enhances compatibility with a range of pallet rack frames. The kit’s design emphasizes a bolted, non-welding repair process, facilitating faster installation and minimizing downtime in warehouse operations. A high-quality powder coat finish offers corrosion resistance suitable for typical industrial environments, helping to extend the service life of repaired columns.
Typical use involves repairing damaged front columns of pallet rack frames to restore vertical load-bearing capability after impact. Practically, installers should verify that the target column matches the kit’s 60-inch seat height and overall dimensions, and ensure the appropriate anchors and hardware are available for secure installation. The kit is supplied in package sizes corresponding to individual repair assemblies and includes concrete anchors, making it suitable for installations where concrete floors are present and anchor points are required.
Features:
- 10 ga. steel construction
- In-stock sizes range from 24" to 84" in 12" increments
- All bolted installation with Grade 5 hardware eliminates the need for welding
- 1/4"-thick steel connection channels ensure rigid installation
- 4" x 12" x 5/16"-thick footplate
- Installs with two 3/4" dia. anchors to eliminate column twisting
- Over 12 OEM punch patterns available
- High-quality powder coat finish
- Includes hardware to attach to existing frame column and 2 concrete anchors
- Material:
- Steel
- Length:
- 12
- Width:
- 3
- Seat Height:
- 60
- Overall Height:
- 69
- Package Size:
- Each
