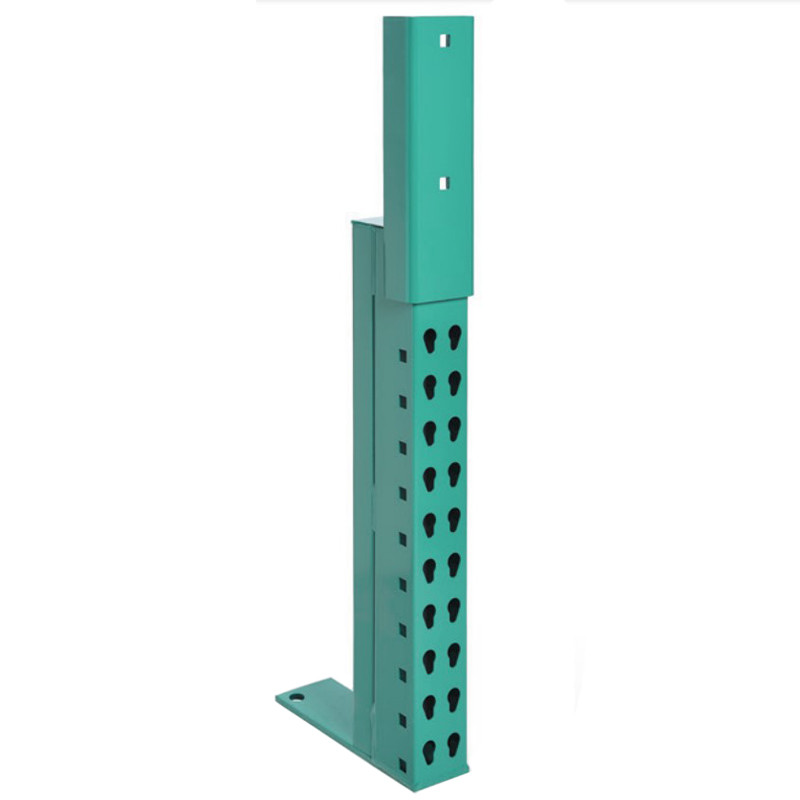

Worldwide Material Handling NDRC02400B3E0TDBG 24" Pallet Rack Column Repair Kit is designed to address common pallet rack damage, particularly to the front column, which is a frequent result of forklift impact. This repair solution emphasizes a bolted installation approach that uses Grade 5 hardware, eliminating the need for welding and allowing for a rigid, secure retrofit. The kit features 10-gauge steel construction with 1/4-inch-thick steel connection channels and a substantial 4" x 12" x 5/16"-thick footplate, all finished with a high-quality powder coat to resist industrial exposure. The system is designed to install on existing frame columns with two 3/4-inch anchors, helping to minimize column twisting and restore structural integrity.
The kit is available in in-stock lengths ranging from 24" to 84" in 12" increments, enabling compatibility with a variety of rack heights. It includes hardware to attach to existing frame columns and two concrete anchors, supporting straightforward field installation. With over 12 OEM punch patterns available, the solution can accommodate a range of pallet rack configurations, helping facilities maintain safe, functional storage without a full rack replacement. Consider the 24" seat height and 32" overall height as the baseline for this specific configuration, noting the stated material is steel and the kit ships in an individual package."
Features:
- 10 ga. steel construction for durability
- All bolted installation with Grade 5 hardware
- 1/4"-thick steel connection channels for rigidity
- 4" x 12" x 5/16"-thick footplate for stable base
- Installs with two 3/4" anchors to prevent column twisting
- Includes hardware to attach to existing frame column and 2 concrete anchors
- Over 12 OEM punch patterns available
- Material:
- Steel
- Length:
- 12
- Width:
- 3
- Seat Height:
- 24
- Overall Height:
- 32
- Package Size:
- Each
