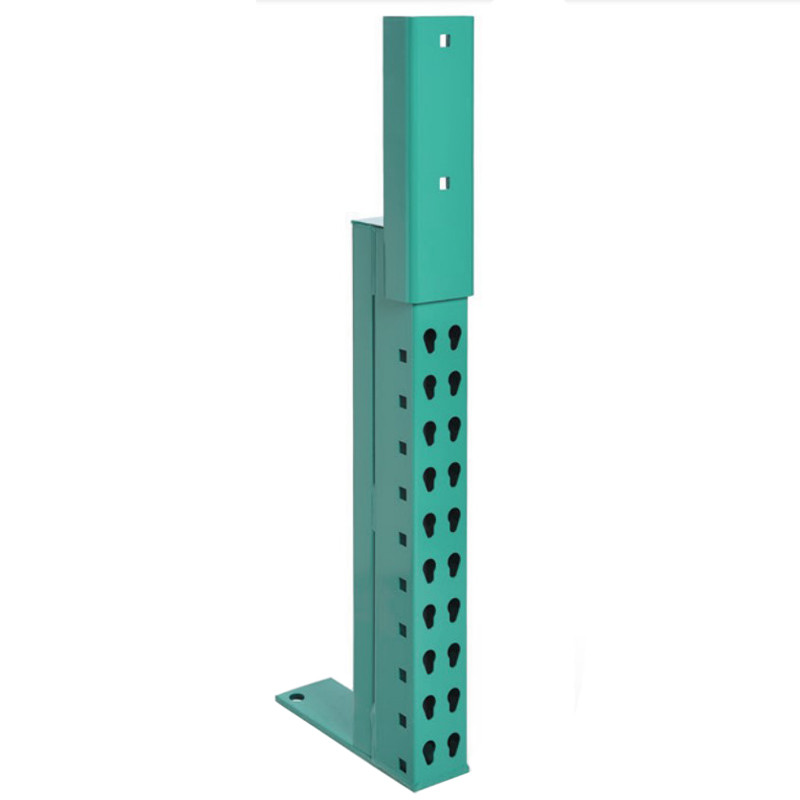

The Worldwide Material Handling 84-inch Pallet Rack Column Repair Kit is designed to restore vertical rack integrity after forklift impact or other damage. This kit provides a robust, bolted solution that eliminates the need for welding, using Grade 5 hardware and 1/4-inch-thick steel connection channels to create a rigid, secure repair connection to an existing rack column. A 4 by 12 inch by 5/16-inch-thick footplate supports the repaired area and helps distribute load forces to reduce further deformation, while the kit’s 10-gauge steel construction offers notable strength for column restoration projects.
Features:
- 10 ga steel construction for durability
- In-stock sizes up to 84" in 12" increments
- All bolted installation with Grade 5 hardware
- 1/4"-thick steel connection channels for rigidity
- 4" x 12" x 5/16"-thick footplate for stability
- Installs with two 3/4" anchors to reduce column twisting
- Includes hardware to attach to existing frame column and 2 concrete anchors
- Material:
- Steel
- Length:
- 12
- Width:
- 3
- Seat Height:
- 84
- Overall Height:
- 93
- Package Size:
- Each
