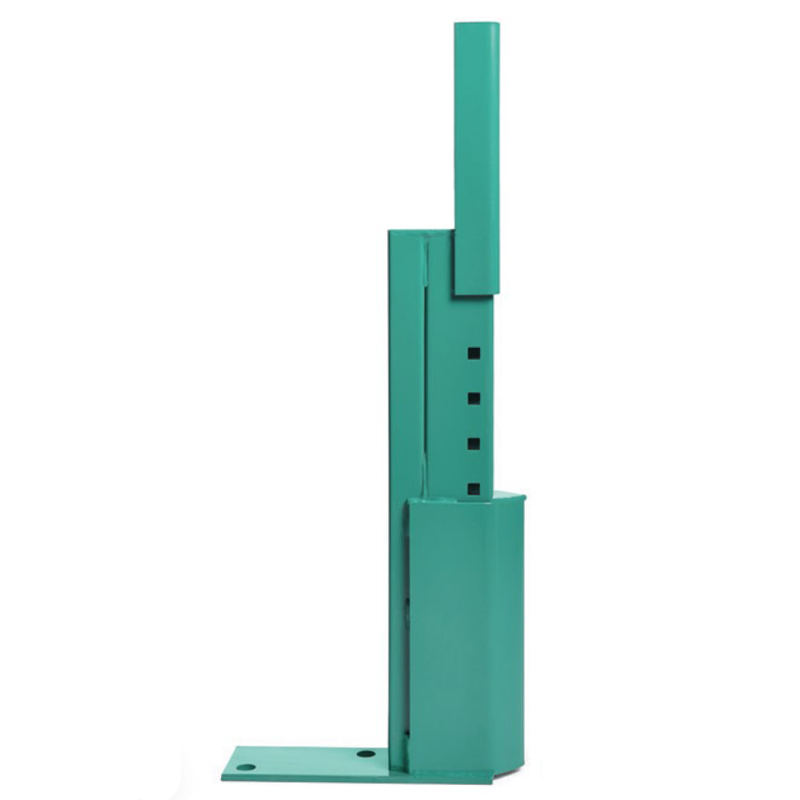

The Worldwide Material Handling NDRC07200P3E0TDS0G 72" SPRO Pallet Rack Column Repair Kit is a heavy-duty solution designed to restore and reinforce damaged pallet rack columns. This kit targets the front column damage that commonly occurs from forklift impact, and includes components intended to stabilize the column and protect adjacent framing elements. Constructed from steel with a substantial 10-gauge thickness, the kit features a 1/4"-thick steel connection channel for a rigid, bolted installation that does not require welding, helping minimize downtime during repairs.
The system also provides a 4" x 12" x 5/16"-thick footplate and a 1/4"-thick x 12" high V-nose deflector, which adds defense against future impacts and can be crucial in maintaining aisle safety. The installation is designed to be secured with two 3/4" anchors, assisting in preventing column twisting and maintaining frame integrity. Worldwide notes that there are numerous OEM punch patterns available, which can help ensure compatibility with a variety of rack frames. The kit is finished with a high-quality powder coat for durability and resistance to typical warehouse conditions, contributing to longevity in demanding environments.
This product ships as a complete package that includes hardware to attach to an existing frame column and two concrete anchors, facilitating installation on compatible pallet rack systems. In-use applicability includes installations where column damage has occurred and an upgrade or reinforcement is needed to reduce the risk of further structural compromise. When selecting a repair kit, verify that the kit’s dimensions, punch patterns, and mounting hardware align with the specific rack column profile and span in your facility, and follow proper installation practices to ensure effective restoration of the rack’s load path.
Features:
- 10 ga. steel construction
- In-stock sizes range from 24" to 84" in 12" increments
- All bolted installation with Grade 5 hardware eliminates the need for welding
- 1/4"-thick steel connection channels ensure rigid installation
- 4" x 12" x 5/16"-thick footplate
- Installs with two 3/4" dia. anchors to eliminate column twisting
- Over 12 OEM punch patterns available
- High-quality powder coat finish
- Material:
- Steel
- Length:
- 12
- Width:
- 3
- Seat Height:
- 72
- Overall Height:
- 81
- Package Size:
- Each
