The Patterson CW14A High Velocity Fan is designed to move air efficiently in demanding industrial spaces. With a 14-inch, three‑blade propeller and a compact 1/4 HP output, it delivers substantial airflow suitable for aisles, workstations, and staging areas. The unit features a robust high‑impact polypropylene housing paired with heavy‑gauge steel construction, and a patented Venturi‑designed barrel along with side air intakes to project and entrain air over a notable distance. A maintenance‑free direct‑drive motor with sealed bearings (totally enclosed) supports reliable operation, and the included OSHA‑compliant steel finger guards offer protection aligned with typical facility safety requirements.

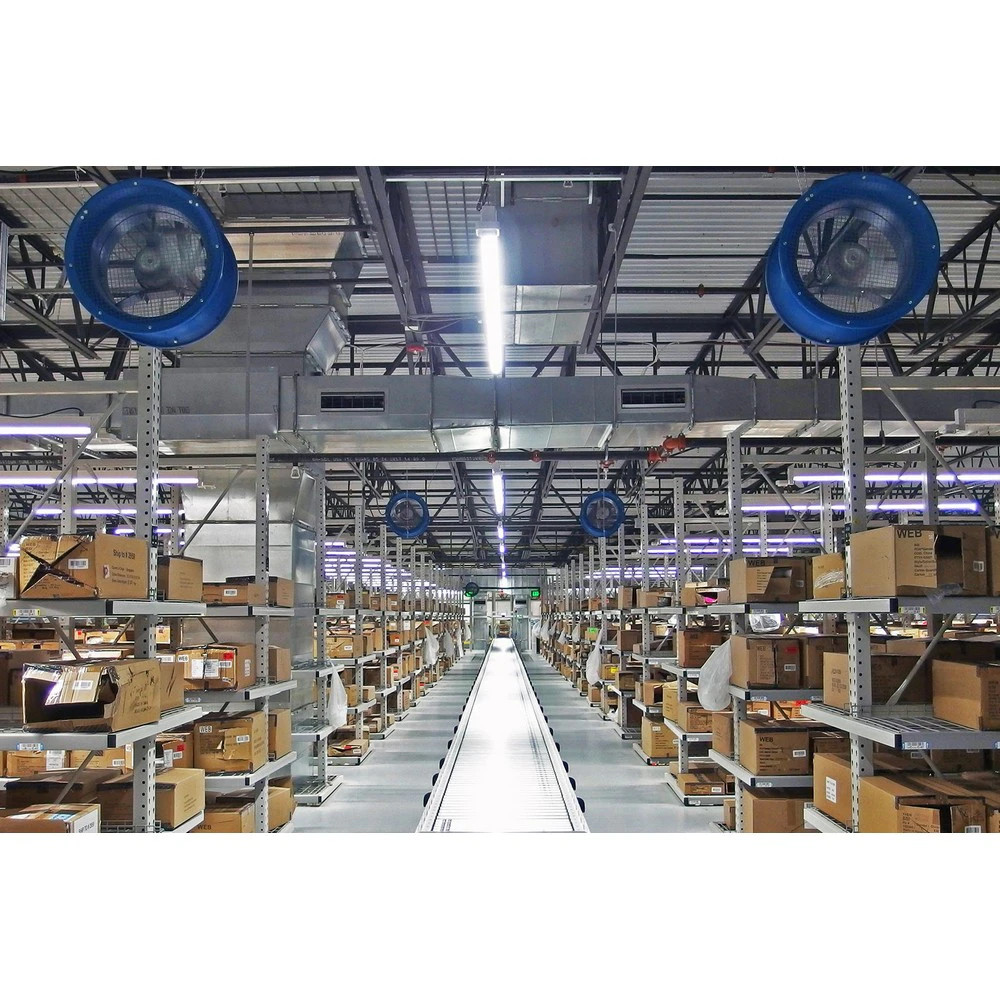

Designed for versatility, the CW14A is available in multiple voltages (from 115V to 460V) and supports optional variable speed configurations on select diameters, enabling precise air control for a range of workflows. Eight mounting options and optional oscillator kits expand where and how you can deploy the fan—whether mounted at a workstation, along an aisle, or near a shipping/receiving zone. The unit includes a 12‑foot power cord on 115V models to accommodate mid‑space distances without excessive cord clutter, and a 360° practical air throw radius of up to 60 feet helps with broad coverage in open areas.
When selecting ventilation for factory or warehouse floors, consider the CW14A’s documented CFM and velocity characteristics to address circulation, condensation control, and occupant comfort in hot or damp environments. This model is designed for straightforward maintenance and long service life in industrial settings, with a focus on delivering reliable, high‑volume airflow where traditional fans may fall short. Each unit ships as a single fan with appropriate guards and mounting hardware as required by the installation scenario.
Features:
- 14" diameter 3-blade propeller (Galvalum) with 60° air throw
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels with side air intakes
- Maintenance-free, direct-drive motor with sealed bearings
- Multi-voltage operation: 115V–460V; 2-year warranty
- Eight mounting options and optional oscillator kit
- OSHA-compliant steel finger guards; 12 ft cord (115V)
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
