The Patterson CW30A High Velocity Fan is a purpose-built industrial airflow solution designed for challenging factory and warehouse environments. This 30-inch, two-blade unit delivers high-volume ventilation to improve air circulation, helping to refresh aisles, workstations, and staging areas while contributing to worker comfort and condensation control. Its venturi-designed barrels and side air inlets are engineered to project and entrain airflow across substantial distances, enhancing coverage in large spaces and reducing stagnant air pockets.
Constructed with a high-impact polypropylene housing reinforced by heavy-gauge steel, the CW30A combines durability with a maintenance-friendly design. The fan uses a direct-drive, maintenance-free motor with long-lasting sealed bearings and is available in multiple voltages (including 115V and 460V variants) to fit different facility electrical setups. An OSHA-compliant steel finger guard protects operators without obstructing airflow, and a 12-foot power cord is provided for 115V models. The unit offers multiple mounting options and optional oscillator kits to tailor airflow patterns to specific layouts, with a standard operating speed of 1800 RPM (and a 1200 RPM option) to balance air throw and noise considerations.

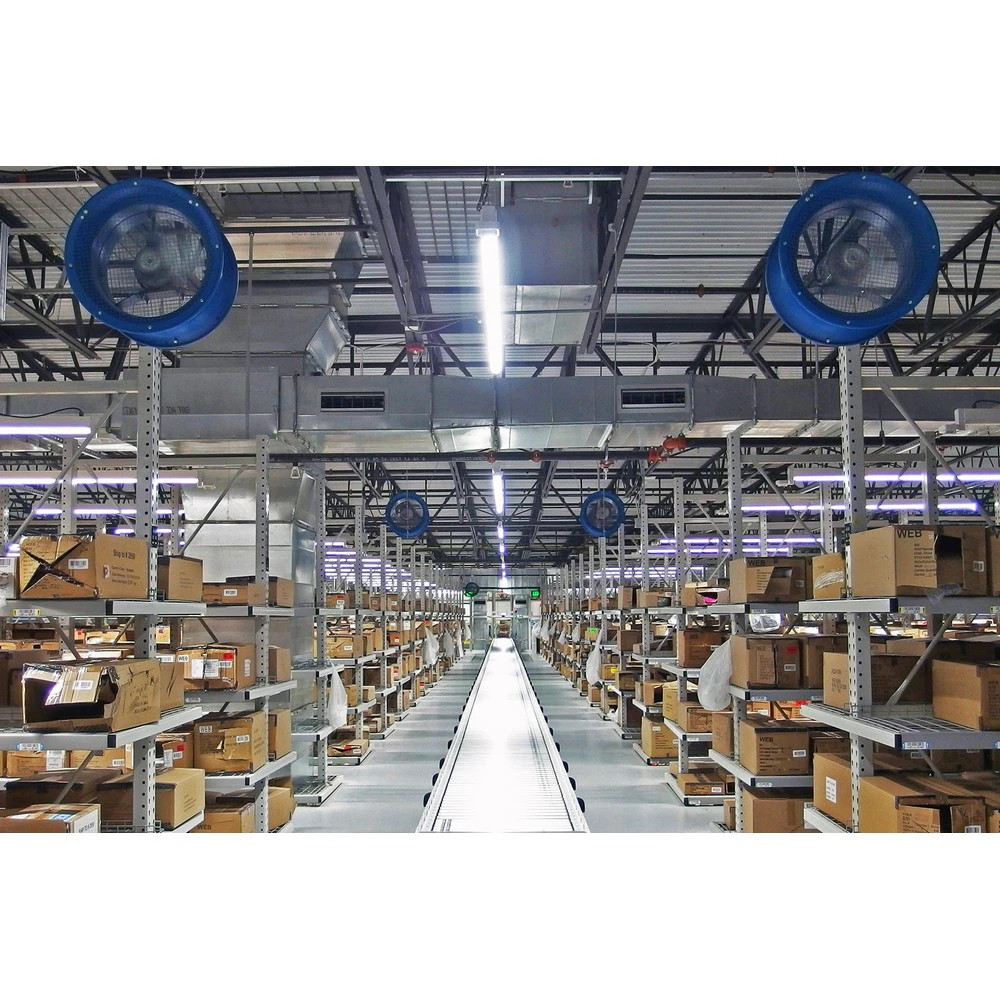

This model is suitable for use in areas such as aisles, pick modules, and shipping zones where robust, directional airflow can aid ventilation and comfort. When selecting power and mounting configurations, consider the intended coverage area (the CW30A targets substantialCf coverage, supporting up to large spaces) and maintenance needs. The fan’s 12,000 ft² airflow capability and 200 ft air throw illustrate its reach within open spaces, while the 2-year warranty provides a defined period of protection for core components. Always verify electrical availability and mounting compatibility on site to ensure optimal performance and safe operation.
Features:
- 30" diameter, 2-blade galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels for improved airflow
- Direct-drive, maintenance-free motors with sealed bearings
- Multiple voltages available (115V–460V)
- Eight mounting options
- OSHA-compliant steel finger guards
- Propeller:
- 30” Diameter, 2-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 82.2 @ 20’ - 85.5 @ 3’ (1800)
- Coverage:
- 12,000 ft²
- Warranty:
- 2 Years
- CFM:
- 12,000
- HP:
- 1
- Width:
- 37”
- Depth:
- 22”
- Air Throw:
- 200’
- Weight:
- 99 lbs
- Package Size:
- Each
