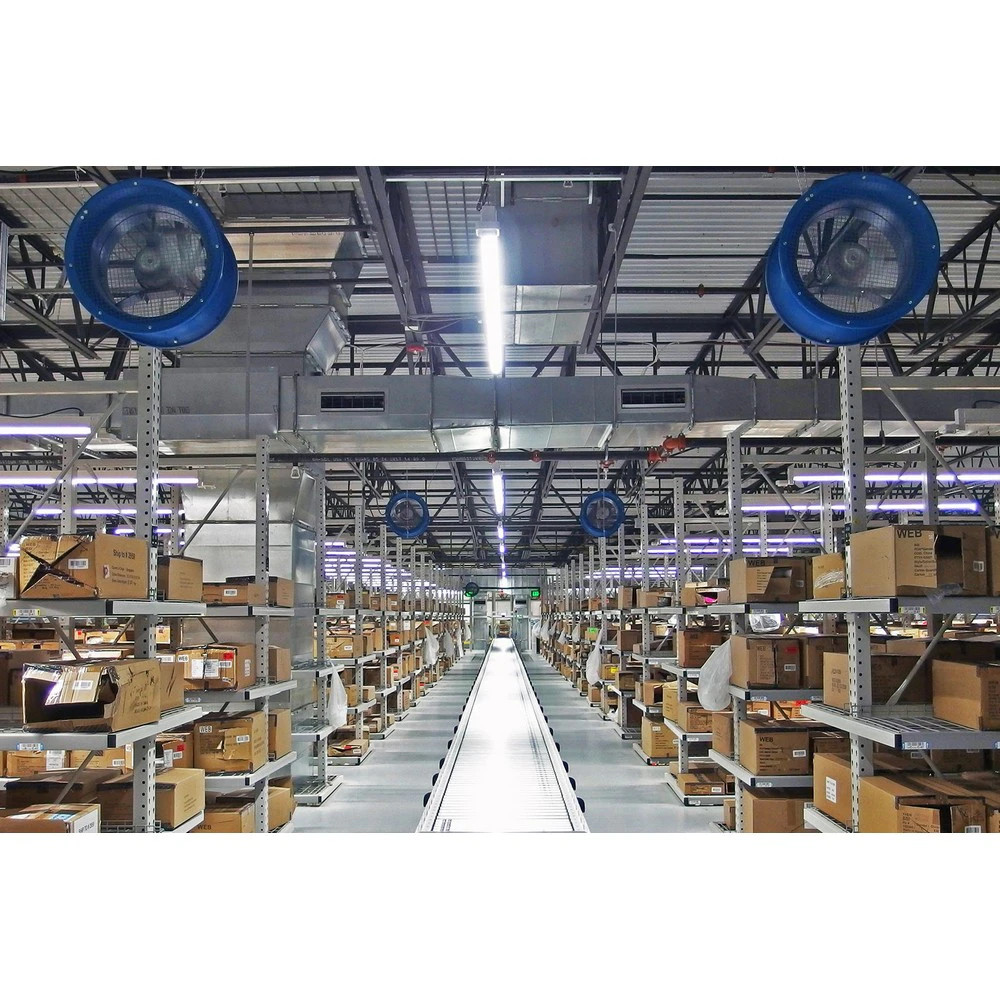

The Patterson CW22A high-velocity fan is designed for demanding industrial environments where directed airflow helps improve ventilation, temperatures, and comfort in work areas such as aisles, pick modules, and staging zones. This 22-inch, direct-drive unit utilizes a patented Venturi barrel design with side air inlets to project and entrain air across the workspace, supporting effective circulation without requiring extensive ducting or auxiliary equipment. The housing combines high-impact polypropylene (HIPP) with heavy-gauge steel, providing a rugged frame around a 3-blade galvalume propeller and a 1725 RPM motor. The fan is available with multiple voltages (115V–460V) and can be paired with variable-speed motors (for models in the 14
Features:
- 22" (3-blade) high-velocity propeller
- Maintenance-free direct-drive motor with sealed bearings
- Venturi-designed barrels for efficient airflow
- Multiple voltages up to 460V and optional variable-speed (14"–22")
- OSHA-compliant steel finger guards
- Eight mounting options and optional oscillator kits
- 12' power cord (115V only) and heavy-gauge steel/HP polypropylene construction
- Propeller:
- 21” Diameter, 3-Blade Galvalum, 19°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 66.5 @ 20’ - 77.6 @ 3’
- Coverage:
- 3600 ft²
- Warranty:
- 2 Years
- CFM:
- 5570
- HP:
- 1/2
- Width:
- 29”
- Depth:
- 16”
- Air Throw:
- 100’
- Weight:
- 49 lbs
- Package Size:
- Each
