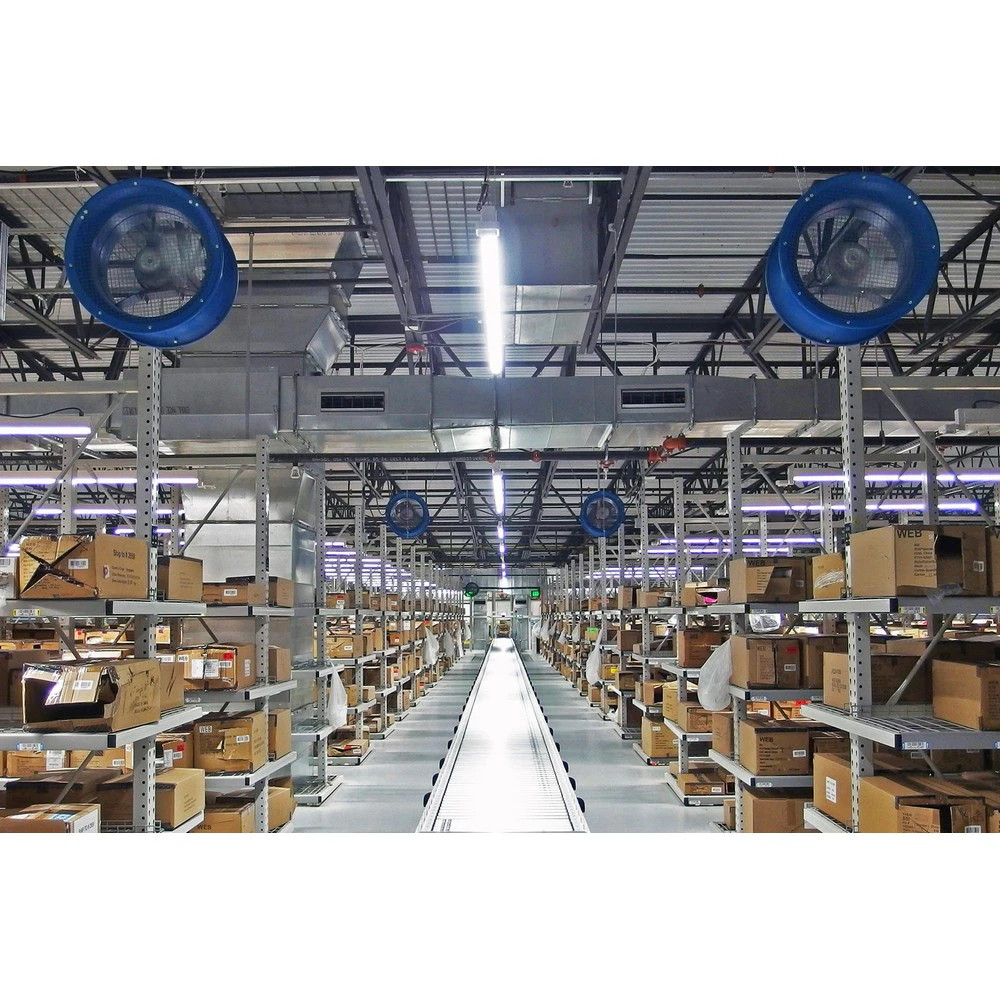

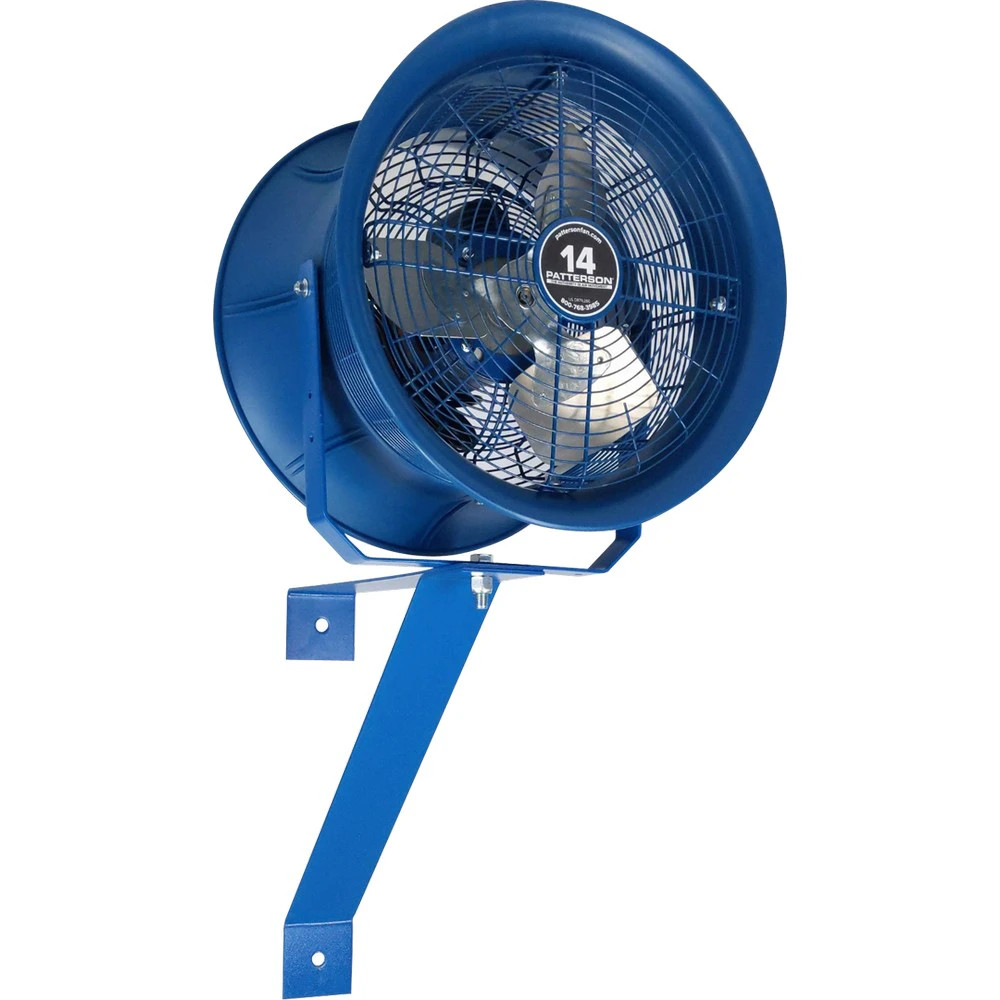

The Patterson CW14B High Velocity Fan is a 14-inch, direct-drive workstation and general-use air mover designed for demanding factory and warehouse environments. It features a rugged construction with a high-impact polypropylene fan housing paired with heavy-gauge steel, and a patented Venturi-designed barrel that helps project and entrain air to improve distant cooling and ventilation. The unit uses a maintenance-free, direct-drive motor with sealed bearings and offers multiple voltages from 115V up to 460V, with an available variable-speed option for 14–22 inch models, making it adaptable to a range of facility applications. The design includes OSHA-compliant steel finger guards and a choice of eight mounting options, enabling placement solutions across aisles, workstations, shipping zones, and staging areas. A 12-foot power cord is provided for 115V operation, with other voltages requiring appropriate cord configurations.
This high-velocity workstation fan is built to circulate air efficiently over substantial areas, contributing to employee comfort, condensation control, and improved workspace ventilation. The compact 14-inch propeller with a three-blade galvalume design, a 60-inch air throw, and a reported 1/4 HP output supports targeted airflow in places where space is limited but air movement is needed. The unit weighs about 35 pounds and is designed for installations where long-term reliability is important, with a two-year warranty referenced by the source data. When selecting this fan, consider the required electrical supply, mounting option, and whether you need an oscillator kit to broaden air distribution.
The CW14B’s documented features—Venturi barrel efficiency, side air intakes for balanced airflow, and a maintenance-free motor—are intended to deliver dependable air movement in elevated-temperature zones, crowded aisles, and active workstations. As with any high-velocity fan, verify room dimensions, desired air throw, noise tolerance, and power availability to ensure the unit meets your cooling and ventilation goals.
Features:
- 14" diameter, 3-blade Galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels for efficient airflow
- Maintenance-free, direct-drive motor with sealed bearings
- Multi-volt operation: 115V–460V
- Eight mounting options and optional oscillator kits
- OSHA-compliant finger guards
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
