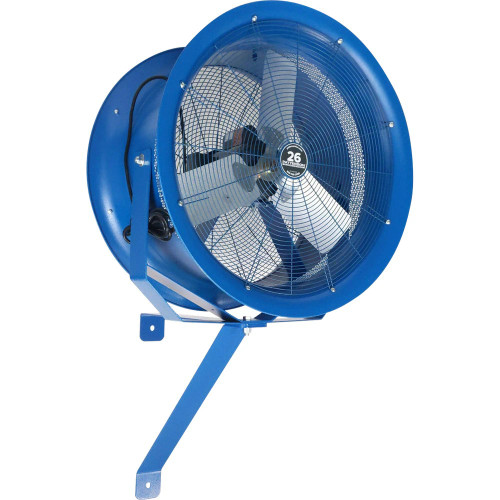

The Patterson CW26A high velocity fan is a rugged, purpose-built cooling solution designed for demanding factory and warehouse environments. With a 26-inch three-blade propeller and a powerful direct-drive motor, it delivers high volume airflow to help move air through aisles, workstations, and staging areas. The unit integrates a Venturi-designed barrel and side air inlets to project and entrain air effectively over distance, contributing to improved ventilation and targeted cooling where it’s most needed.
Construction emphasizes durability and serviceability. The fan housing combines heavy-gauge steel with high-impact polypropylene components, and OSHA-compliant finger guards help maintain a safer working area. The CW26A offers multiple voltage configurations (115V–460V) and an option for variable speed motors (14"–22"), supporting precise control in diverse environments. The standard setup includes a 12-foot power cord for 115V operation, and the design uses maintenance-free, direct-drive motors with long-lasting sealed bearings, reducing routine upkeep while maintaining performance. A wide array of mounting options (eight in total) enhances placement flexibility to fit workspace layouts and safety requirements.

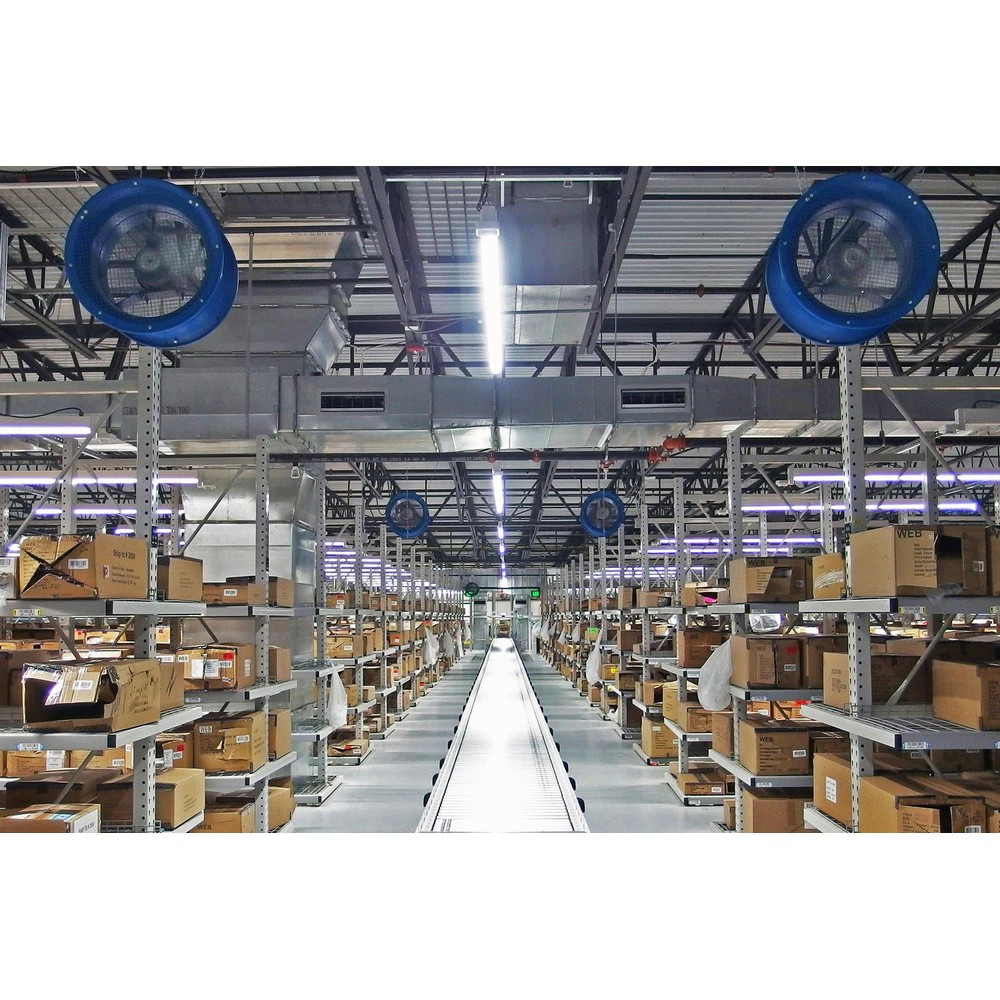

This model sets itself apart with a robust airflow potential—capable of moving large volumes of air with an air throw that can reach significant distances for ventilation, condensation control, and occupant comfort. It’s suitable for applications such as isolating work zones, cooling operators at stations, and improving air movement in shipping and staging areas while maintaining a straightforward maintenance profile and a two-year warranty for added peace of mind. For specific installation or power needs, verify voltage compatibility and motor options before purchase, and consider whether an optional oscillator kit would better distribute airflow across your space.
Features:
- 26" diameter, 3-blade Galvalum propeller
- High-impact polypropylene & heavy-gauge steel housing
- Venturi-designed barrels with side air intakes
- Maintenance-free direct-drive motor with sealed bearings
- Multiple voltages: 115V–460V; 12' cord (115V only)
- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- 2-year warranty
- Propeller:
- 26” Diameter, 3-Blade Galvalum, 18°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 80.8 @ 20’ - 85.2 @ 3’ (1800)/ 75.7 @ 20' - 81.3 @ 3' (1200)
- Coverage:
- 6100 ft²
- Warranty:
- 2 Years
- CFM:
- 7650
- HP:
- 1
- Width:
- 33”
- Depth:
- 18.5”
- Air Throw:
- 150’
- Weight:
- 93 lbs
- Package Size:
- Each
