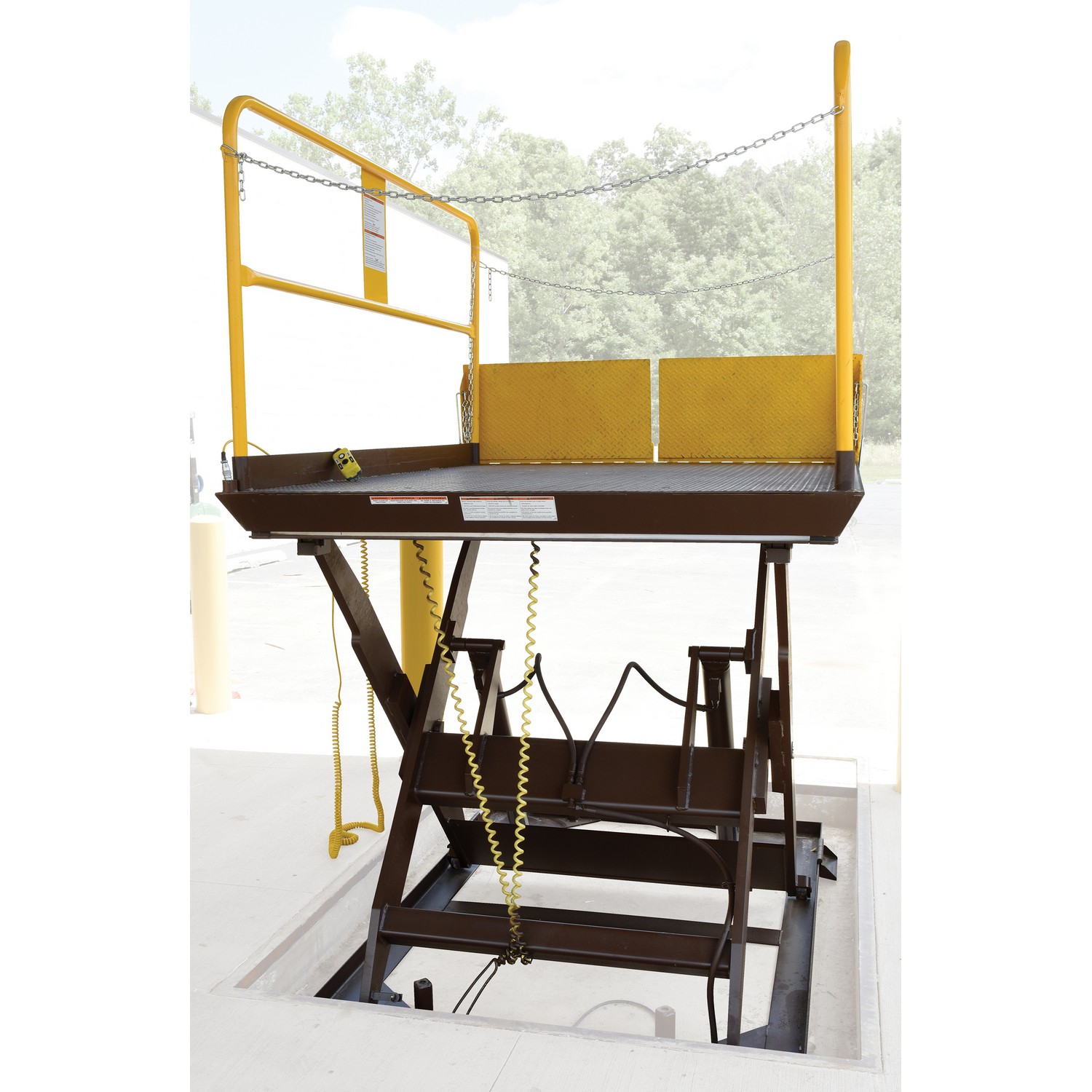

The Vestil WL-100-5-68 Prem Truck Scissor Dock Lift is a heavy-duty, gravity-assisted loading solution designed for facilities without traditional docks. This 5,000 lb capacity dock lift provides a raised platform at the precise height needed to bridge gaps between dock levels and trailers, enabling easier transfer of goods. The unit features a treadplate deck for a non-slip surface and a robust steel frame, with safety components that include a safety velocity fuse to protect hydraulic cylinders and an upper travel limit switch that shuts power when the maximum height is reached. The power system is supplied via a pre-wired control box with a magnetic starter and overload fuse, and the push-button control is mounted on a long coil cord for flexible operation. High-visibility safety yellow removable handrails and fixed toe boards help maintain perimeter safety during use, while beveled toe guards and electric toe-guards further reduce trip hazards around the platform edge. The external motor can be located up to eight feet away from the lift, supporting flexible installation in varied facility layouts.

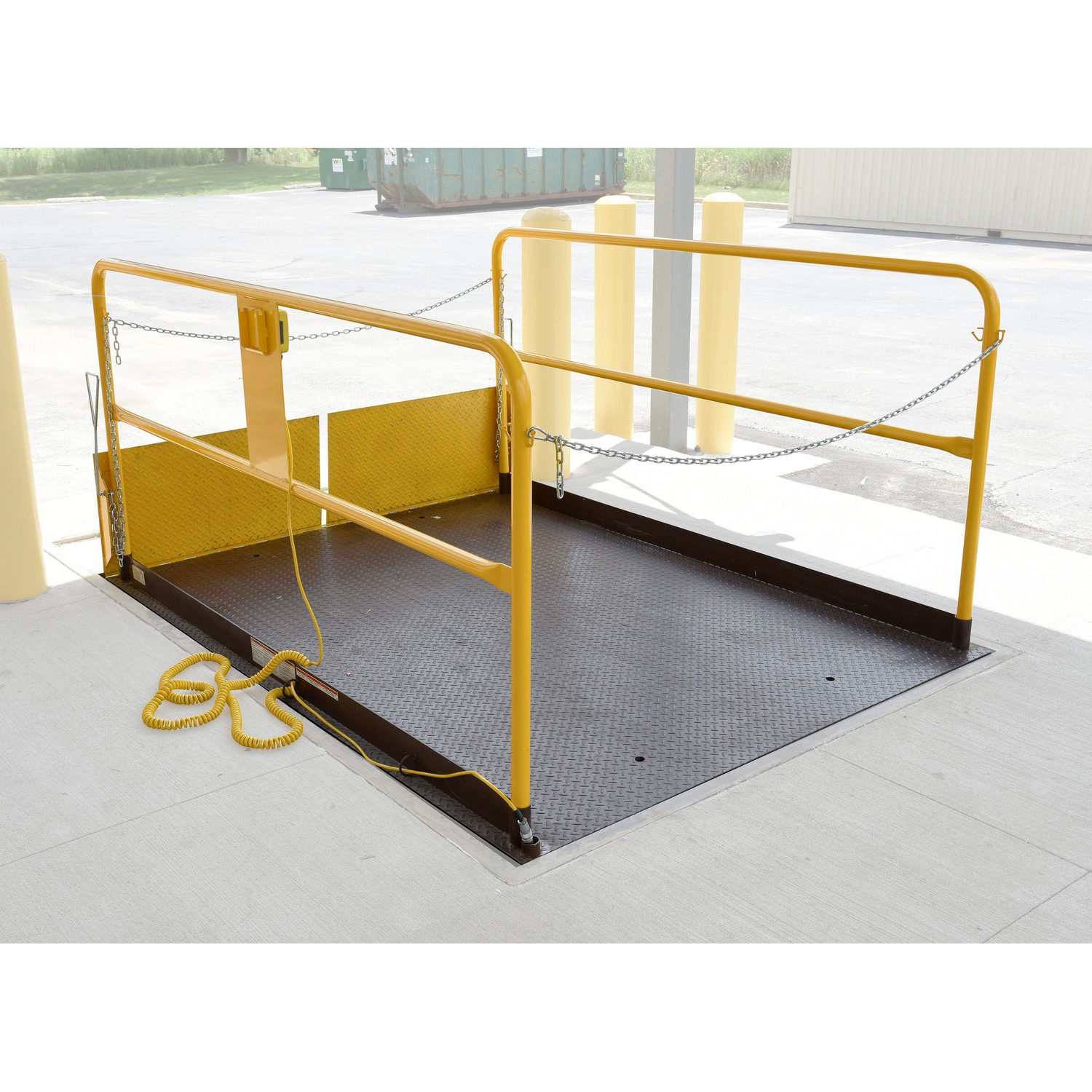

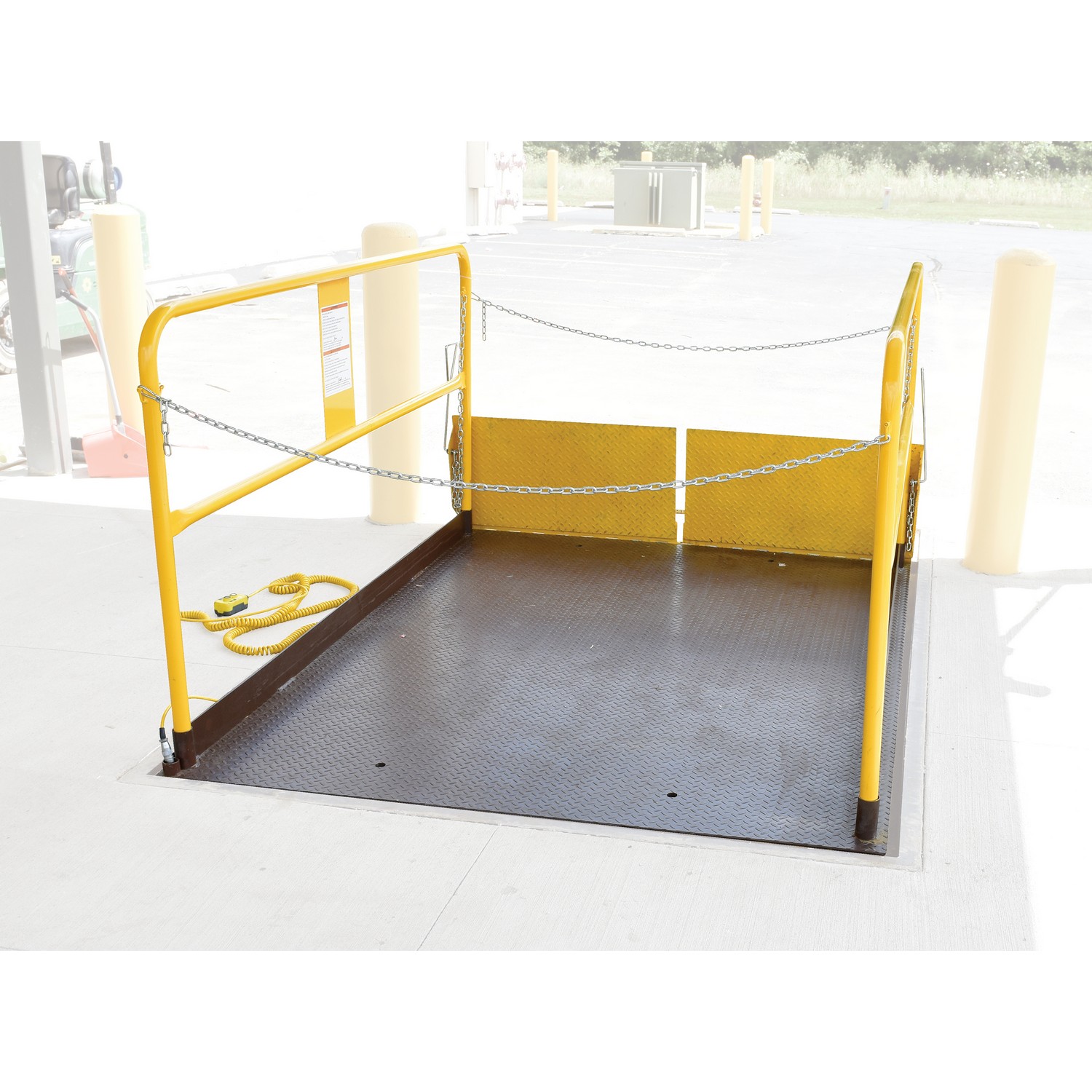

Construction emphasizes durability and reliability in semi-trailer loading scenarios where dock facilities are unavailable. The deck is composed of heavy-gauge steel with a 1/4-inch treadplate for enhanced traction, and the platform measures 96 inches by 72 inches, providing a substantial surface area. Raised height reaches 68 inches, with a lowered height of 8 inches to minimize obstruction when the lift is not in use. The unit runs on a 460V 3-phase power supply with a 6.5 HP external motor, reflecting the requirements of demanding material-handling environments. Handrail height, midrail placement, and toe guard dimensions are designed to meet typical safety standards while maintaining practical access. This model is specified with the inclusions of overload protection and adheres to referenced ANSI and OSHA considerations for industrial lifts, making it suitable for facilities seeking a compliant, semi-trailer compatible solution.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Treadplate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Platform: 6 ft x 8 ft with 1/4 in treadplate and 4 in toe guards
- Uniform capacity 5,000 lb for reliable material handling
- Color:
- Brown/Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 5000
- Overall Frame Width (in.):
- 62
- Overall Frame Length (in.):
- 93
- Platform Length (in.):
- 96
- Platform Width (in.):
- 72
- Lowered Height (in.):
- 8
- Raised Height (in.):
- 68
- Push Button Coil Cord Length (ft.):
- 4-20
- External Motor Horsepower:
- 6.5
- External Motor Voltage/Phase:
- 460/3
- Motor Hertz:
- 60
- Motor Weight (lbs.):
- 300
- Axle Side Load Capacity (lbs.):
- 3250
- Axle End Load Capacity (lbs.):
- 3750
- Handrail Height (in):
- 45
- Handrail Midrail Height (in):
- 21
- Toeboard Height (in):
- 4
- Beveled Toe Guard (in):
- 5
- Platform Type:
- Treadplate
- Platform Thickness (in.):
- 1/4
- Includes:
- Overload Protection
- OSHA:
- 1910.28
- ANSI:
- MH 29.1
- Package Size:
- Each
