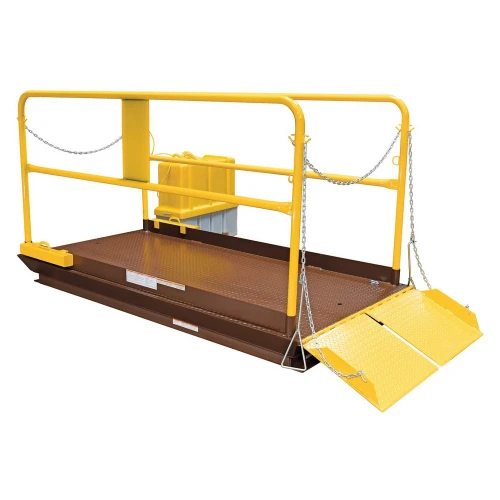

Vestil WL-100-10-68 Steel Premium Truck Scissor Dock Lift provides a safe, efficient solution for loading and unloading goods from semi-trailers where a permanent dock isn’t available. The unit features a heavy-gauge steel diamond plate deck designed for durability under frequent use, and a hydraulic system equipped with safety velocity fuses to help prevent uncontrolled lowering if a line fails. A standard upper travel limit switch interrupts power when the lift reaches its maximum height, enhancing operational safety during cycle changes. The control setup includes a push-button control on a 20-foot coil cord and a pre-wired control box with a magnetic starter and overload relay, supporting flexible positioning and straightforward integration into existing workflows.
This model prioritizes visibility and protection around the lifting area with high-visibility yellow removable handrails and fixed toe boards, plus beveled toe-guards and electric toe-guards along the platform perimeter. The external 6.5 HP, 460V, 3-phase, 60 Hz motor is readily located up to 8 feet away, which can simplify electrical routing in tight loading-zone layouts. With a 10,000 lb. capacity and an overall frame width of 62 inches, the lift is designed to handle typical palletized loads encountered in dock-to-trailer transfers, supporting semi-trailer operations where dock infrastructure is unavailable.
For best results, operators should ensure appropriate clearance and follow standard lockout/tagout procedures during maintenance and inspections. The lift is commonly deployed in facilities that frequently switch between docked and undocked loading modes, or in temporary loading zones, contributing to smoother material handling workflows without permanent dock installation. This description reflects the documented features and specifications provided in the manufacturer data.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- 10,000 lb uniform capacity
- Uniform Capacity (lb.):
- 10000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
