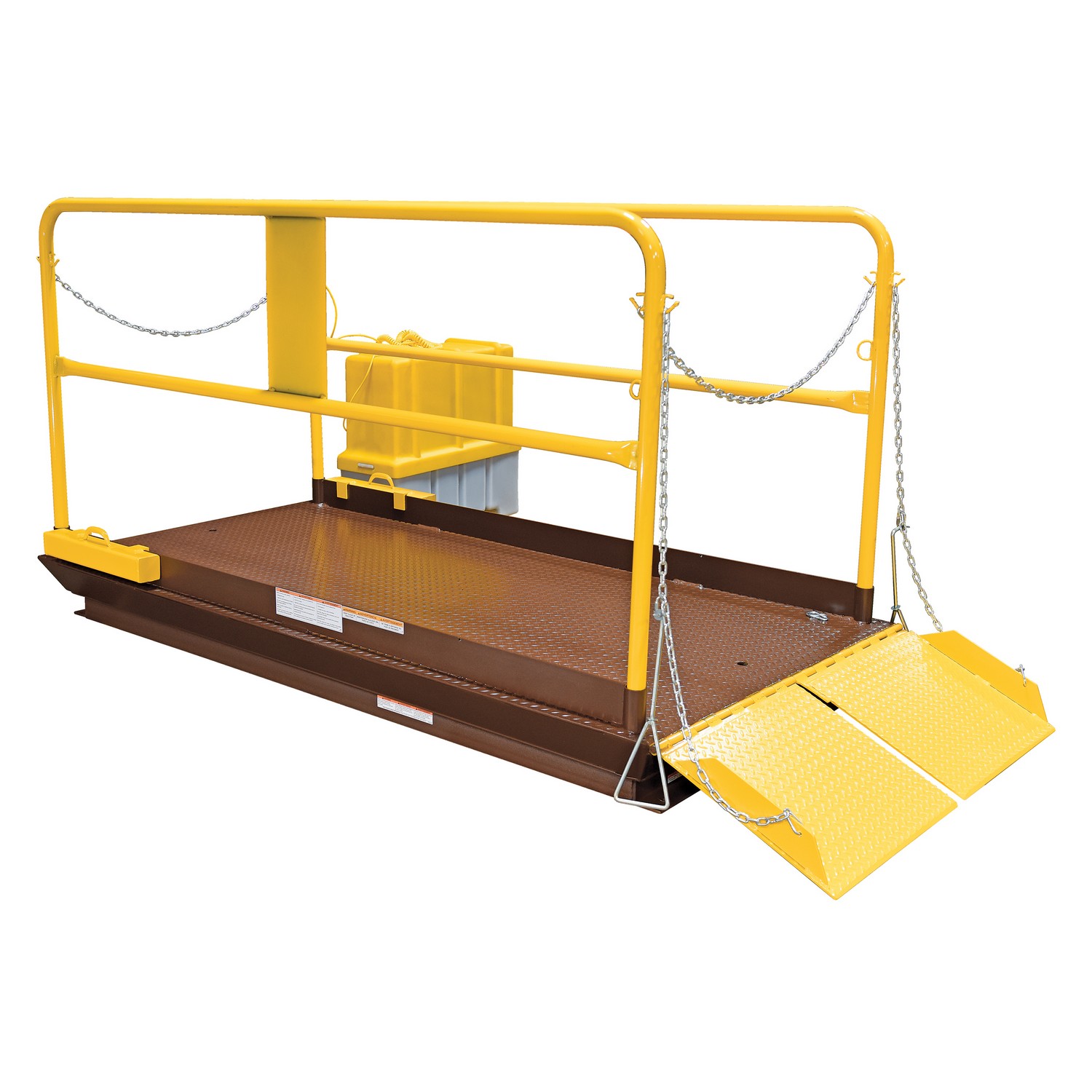

The Vestil WL-100-12-812 Prem Truck Scissor Dock Lift is a heavy-duty hydraulic platform designed to bridge the gap between dock heights and semi-trailers when a traditional loading dock isn’t available. With a substantial 12,000 lb uniform capacity, this scissor lift provides a stable, elevated work surface that supports efficient material handling in trucking and loading environments. The unit features a treadplate deck for a proven non-slip grip and a robust steel framework built to withstand routine industrial use. Safety-focused design elements include height limit functionality that cuts power at full raised height and velocity fuse protection on the hydraulic cylinders to help prevent unintended movement in case of line failure. A 460V three-phase external motor powers the system, and the lift is supplied with a pre-wired control box and a push-button control on a long coil cord for flexible operation.
Designed for practicality, the lift includes high-visibility yellow removable handrails with fixed toe boards, beveled toe guards, and electric toe guards around the platform perimeter to help reduce the risk of entry hazards during operation. The configuration accommodates a wide platform footprint, with a platform size of 96 in by 144 in and an overall frame width of 86 in by 118 in, enabling loading and unloading of pallets and freight directly from the truck bed. The unit’s raised height reaches 72 in, with a lowered height of 14 in, and it uses heavy-gauge steel with a 1/4-in treadplate platform, contributing to long-term durability in busy facilities.
Before installation, consider the electrical requirements (460V/3-phase, 60 Hz) and the need for suitable pit or surface mounting, along with the option for an approach ramp. The lift is pre-equipped with overload protection and an upper travel limit switch to help manage safe operation during use. This model is a robust solution when dock availability is limited, supporting efficient transfer of goods between trailers and facilities while maintaining clear access and perimeter safeguards.
Features:
- Designed to service semi-trailers when loading docks are unavailable
- Treadplate surface provides a safe non-slip grip
- Safety velocity fuses protect hydraulic cylinders
- Upper travel limit switch cuts power to unit at max raised height
- 12,000 lb uniform capacity for heavy loads
- Steel construction with durable platform and frame
- Color:
- Brown/Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 12000
- Overall Frame Width (in.):
- 86
- Overall Frame Length (in.):
- 118
- Platform Length (in.):
- 144
- Platform Width (in.):
- 96
- Lowered Height (in.):
- 14
- Raised Height (in.):
- 72
- Push Button Coil Cord Length (ft.):
- 4-20
- External Motor Horsepower:
- 6.5
- External Motor Voltage/Phase:
- 460/3
- Motor Hertz:
- 60
- Motor Weight (lbs.):
- 300
- Axle Side Load Capacity (lbs.):
- 8500
- Axle End Load Capacity (lbs.):
- 9750
- Handrail Height (in):
- 45
- Handrail Midrail Height (in):
- 21
- Toeboard Height (in):
- 4
- Beveled Toe Guard (in):
- 5
- Platform Type:
- Treadplate
- Platform Thickness (in.):
- 1/4
- Includes:
- Overload Protection
- OSHA:
- 1910.28
- ANSI:
- MH 29.1
- Package Size:
- Each
