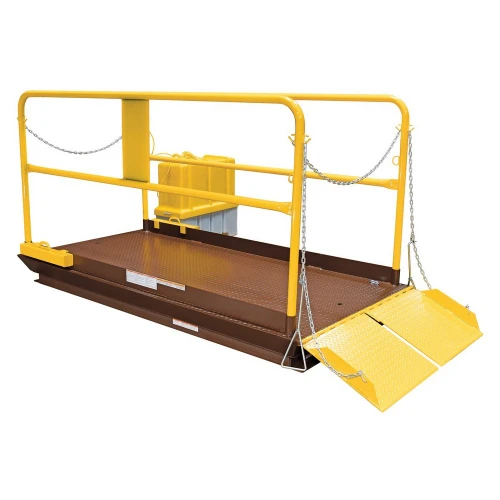

The Vestil WL-100-8-68 is a steel premium truck scissor dock lift designed to facilitate safe, efficient loading and unloading from semi-trailers in locations without permanent loading docks. With a robust 8,000 lb capacity and a 6 ft by 8 ft platform, this unit provides a stable work surface that aids vertical transfer between dock and trailer floors. The scissor mechanism is paired with a heavy-gauge diamond plate deck to help prevent slips and improve footing during operation, especially in dynamic loading environments.
Key construction features include safety-focused hydraulics with a safety velocity fuse to protect cylinders in the event of line breakage, an upper travel limit switch to automatically cut power when the lift reaches its maximum height, and a comprehensive control setup that includes a 20 ft coil cord and a pre-wired control box with magnetic starter and overload relay. High-visibility safety components—removable handrails with toe boards, beveled toe-guards, and electric toe-guards around the platform perimeter—support safer access during loading and unloading tasks. The standard external motor assembly is rated 6.5 HP at 460V, 3-phase, 60 Hz and can be located up to 8 feet away from the lift, enhancing installation flexibility while maintaining performance.
Manufactured to assist operations where dock infrastructure is unavailable, this lift is well-suited for warehouses and distribution centers that handle frequent trailer transfers in limited spaces. The overall frame width of 62 inches helps define its footprint for site planning and ensures compatibility with typical trailer dock interfaces. As with all hydraulic lifting devices, proper setup, periodic inspection, and adherence to operating procedures are essential for reliable use and safe handling of materials during loading and unloading.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Uniform capacity of 8,000 lb
- Overall frame width of 62 inches
- Uniform Capacity (lb.):
- 8000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
