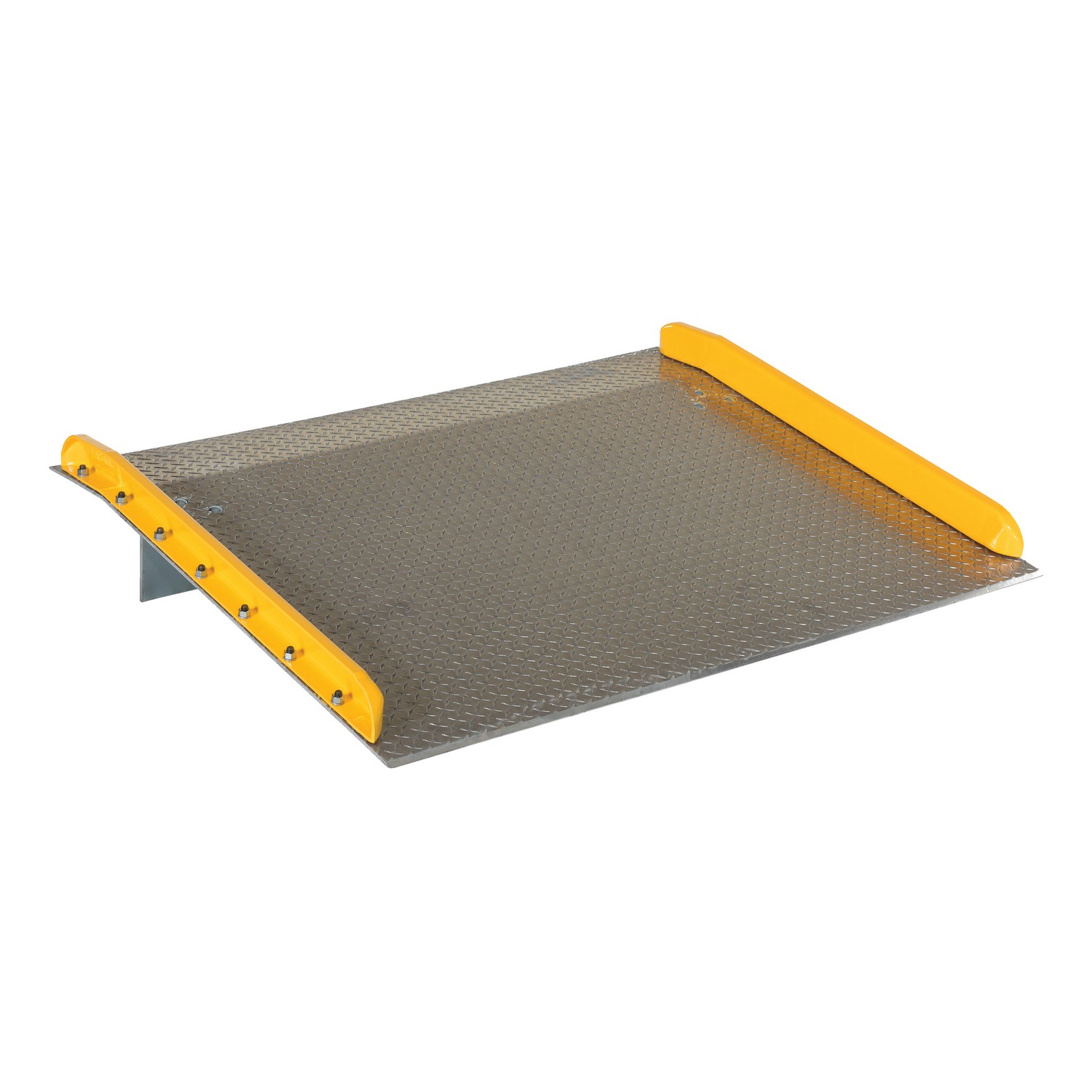

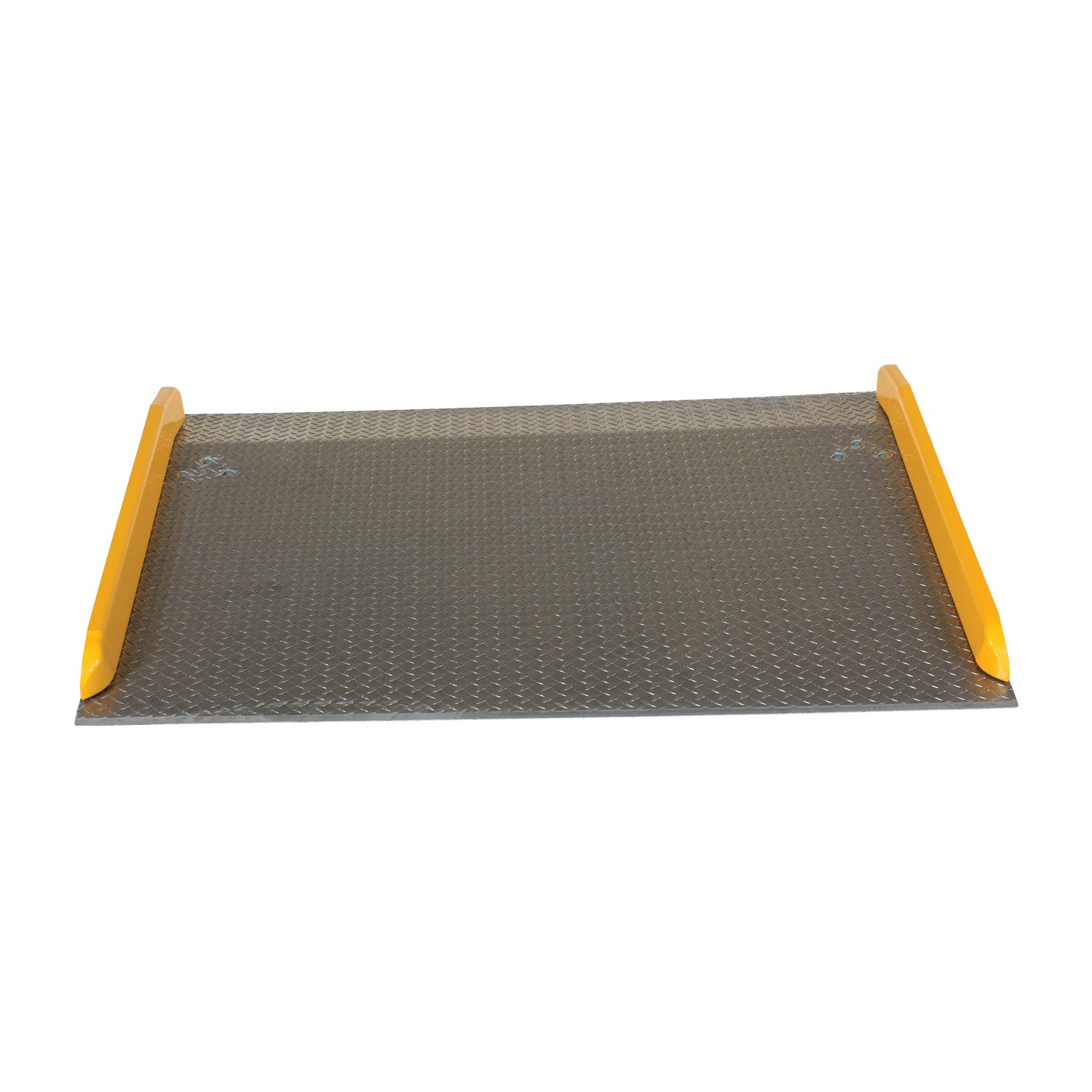

Vestil TAS-10-6048 Aluminum Dock Board Steel Curb 10K 60X48

Customer Reviews
SKU:
VESTAS-10-6048
Weight:
129.00 LBS



$1,337.29
/ Each

Description

The Aluminum Truck Dockboard with Steel Safety Curbs is designed for portability and safety. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck. The width of the dockboard should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • High-strength aluminum treadplate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deckplate for safer use



Product Specifications:

Color Silver
Material Aluminum
Uniform Capacity (lb.) 10000
Height Difference at 11 degree/19 percent (in.) 7
Location of legs from beveled edge (in.) 11
Bend Degree 11
Bend Distance from Beveled Edge (in.) 8-13/16
Usable Width (in.) 56
Usable Length (in.) 48
Plate Thickness (in.) 5/16
Curb Height (in.) 3-9/16
OSHA 1910.30(a)
ANSI MH 30.2
Package Size Each
SKU:
VESTAS-10-6048
Weight:
129.00 LBS
Color:
Silver
Material:
Aluminum
Uniform Capacity (lb.):
10000
Height Difference at 11 degree/19 percent (in.):
7
Location of legs from beveled edge (in.):
11
Bend Degree:
11
Bend Distance from Beveled Edge (in.):
8-13/16
Usable Width (in.):
56
Usable Length (in.):
48
Plate Thickness (in.):
5/16
Curb Height (in.):
3-9/16
OSHA:
1910.30(a)
ANSI:
MH 30.2
Package Size:
Each
