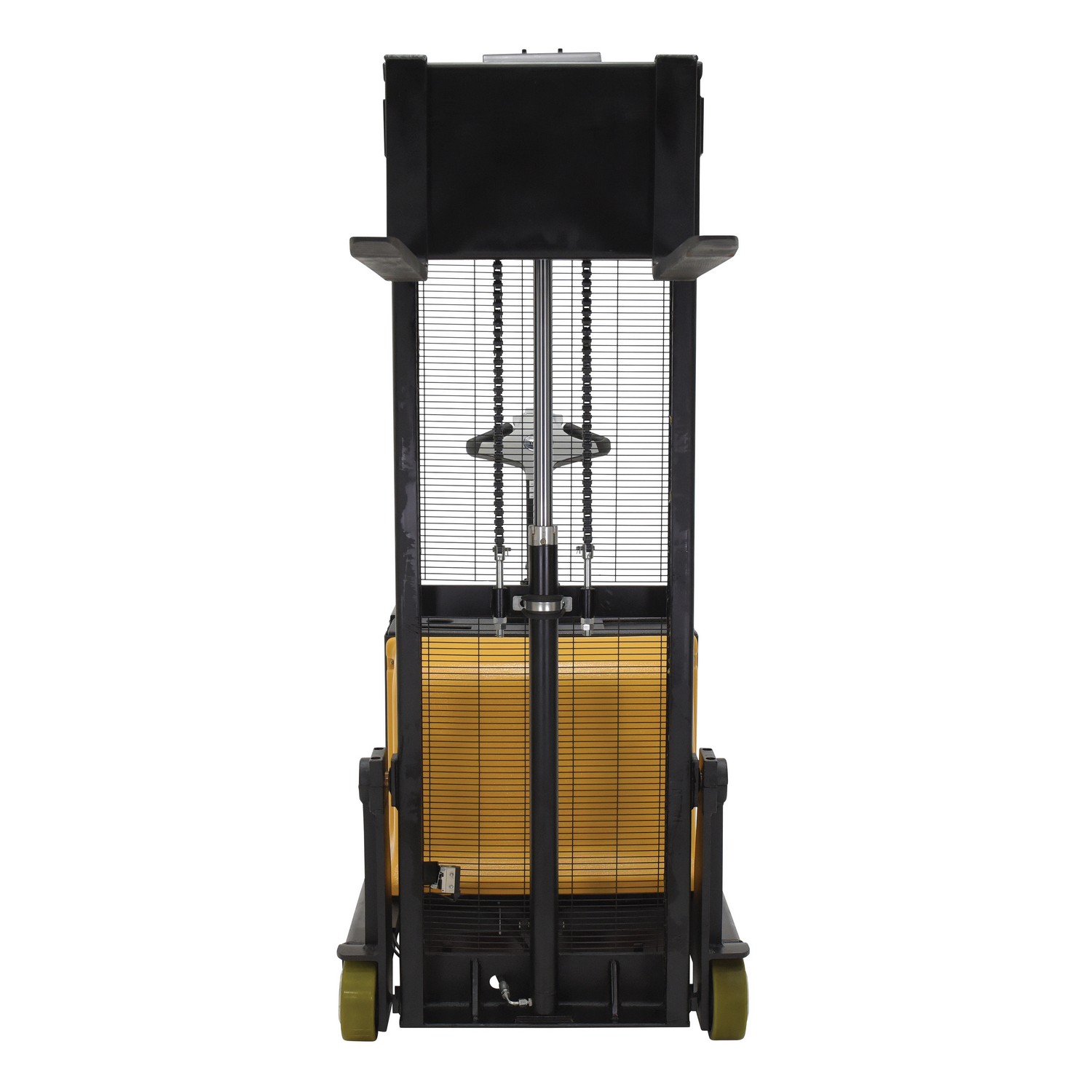

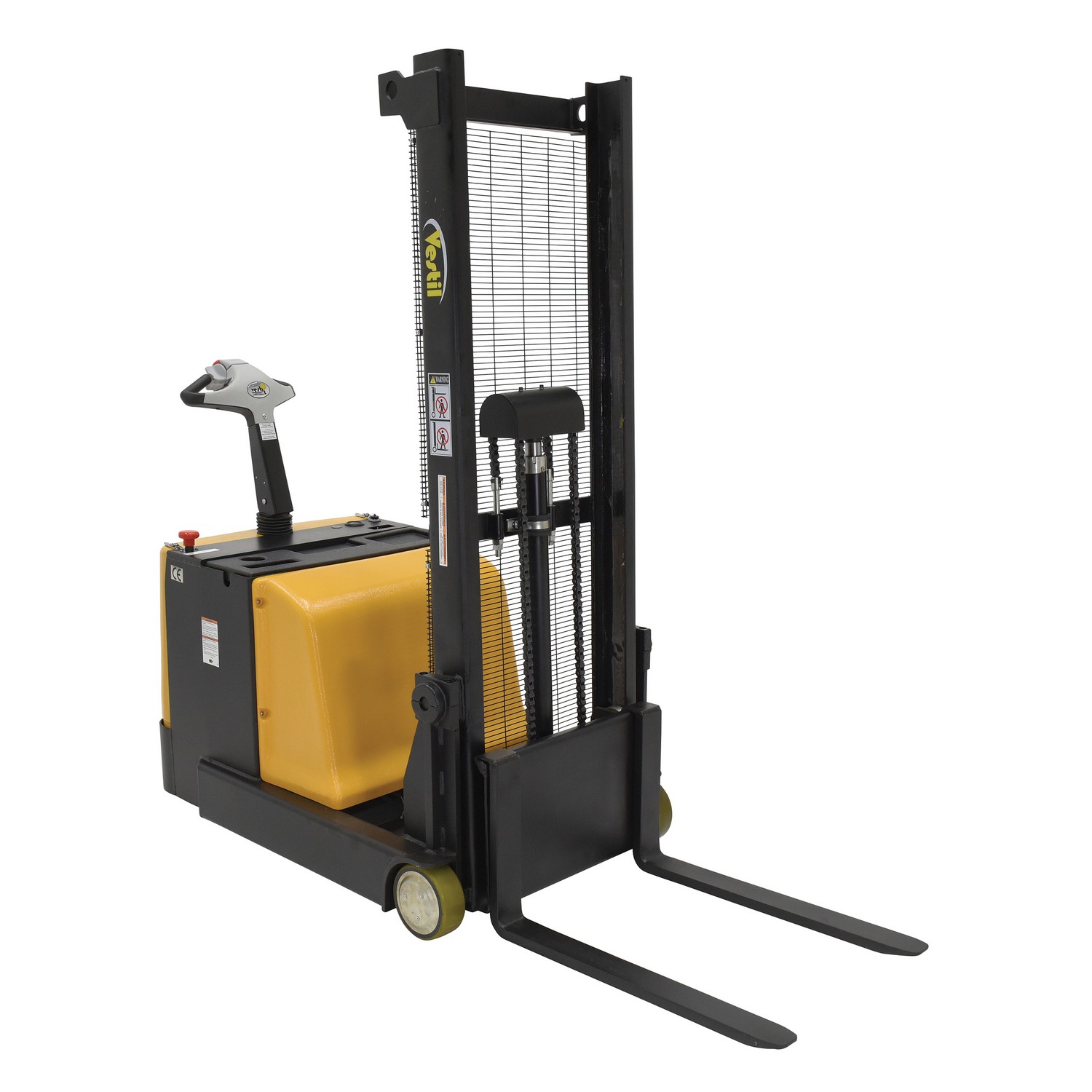

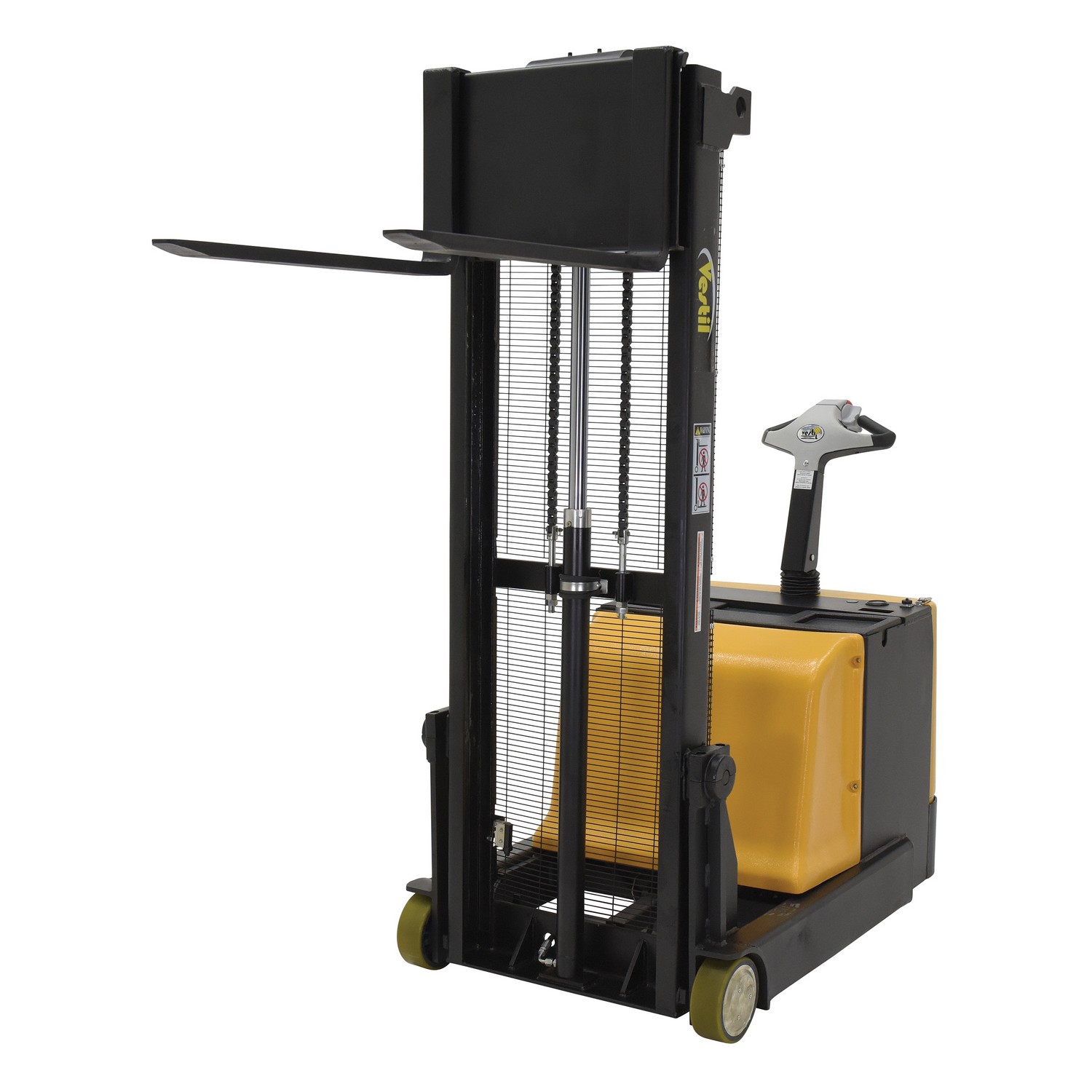

The Vestil VESS-CB-62 Counter Balanced Powered Lift is a fully powered pallet lifting and moving solution designed for die loading, machine feeding, and loading/unloading trucks. It combines a 24V drive motor and a 24V lift motor with an ergonomic throttle control, providing forward and reverse motion and precise lift/lower operation. A notable safety feature is the proprietary safety-enhancing emergency reverse function, which reverses direction automatically when activated and remains secured by a safety circuit that requires reset after prolonged use. An electromagnetic disc brake with an automatic dead-man feature helps stop movement when the operator releases the handle, contributing to operator control in busy handling environments.
Constructed with steel components and standard colorization of black and yellow for visibility, this unit offers a 1,000 lb capacity across its 0–62 inch lift range. The forks are adjustable to accommodate varying pallet widths, with a fork length of 30 inches and adjustable fork widths from 6-3/8 to 23-5/8 inches. Battery-powered operation relies on two lead-acid deep cycle batteries, an integral battery charger, and a battery level indicator to support ongoing use between charges. The design includes poly-on-steel steer and load wheels for smoother operation across typical warehouse floors, and a practical battery compartment for straightforward maintenance.
Operational considerations include a full-charge run time of approximately 3–4 hours under continuous use, or up to about 8 hours when used intermittently. The unit is intended for environments where pallets and loads must be moved quickly and efficiently over short distances, with emphasis on safe handling given the emergency reverse feature and dead-man braking. Proper maintenance involves checking battery condition and keeping the battery compartment accessible for routine servicing. The dimensions and capacities above are the primary data needed to ensure compatibility with your pallets and loading dock workflow.
Features:
- Fully-powered pallet lift for quick, easy pallet movement
- Fingertip RAISE and LOWER buttons for operator convenience
- Safety belly reverse button enhances worker safety
- Easy-to-operate throttle for forward and reverse direction
- Steel construction with black/yellow finish
- Two 24V drive and lift motors for reliable performance
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity (lb.) at 0-62 (in.):
- 1,000
- Fork Width Minimum/Maximum (in.):
- 6-3/8 to 23-5/8
- Fork Length (in.):
- 30
- Lowered Height (in.):
- 2
- Raised Height (in.):
- 62
- Drive Motor:
- 24V
- Lift Motor:
- 24V
- Drive (KW):
- 0.7
- Lift Motor (KW):
- 2
- Operation at Full Charge (hrs.):
- 3-4
- Operation at Full Charge when Used Intermittently (hrs.):
- 8
- Individual Fork Width (in.):
- 3-1/8
- Number of Batteries Used:
- 2
- Package Size:
- Each
