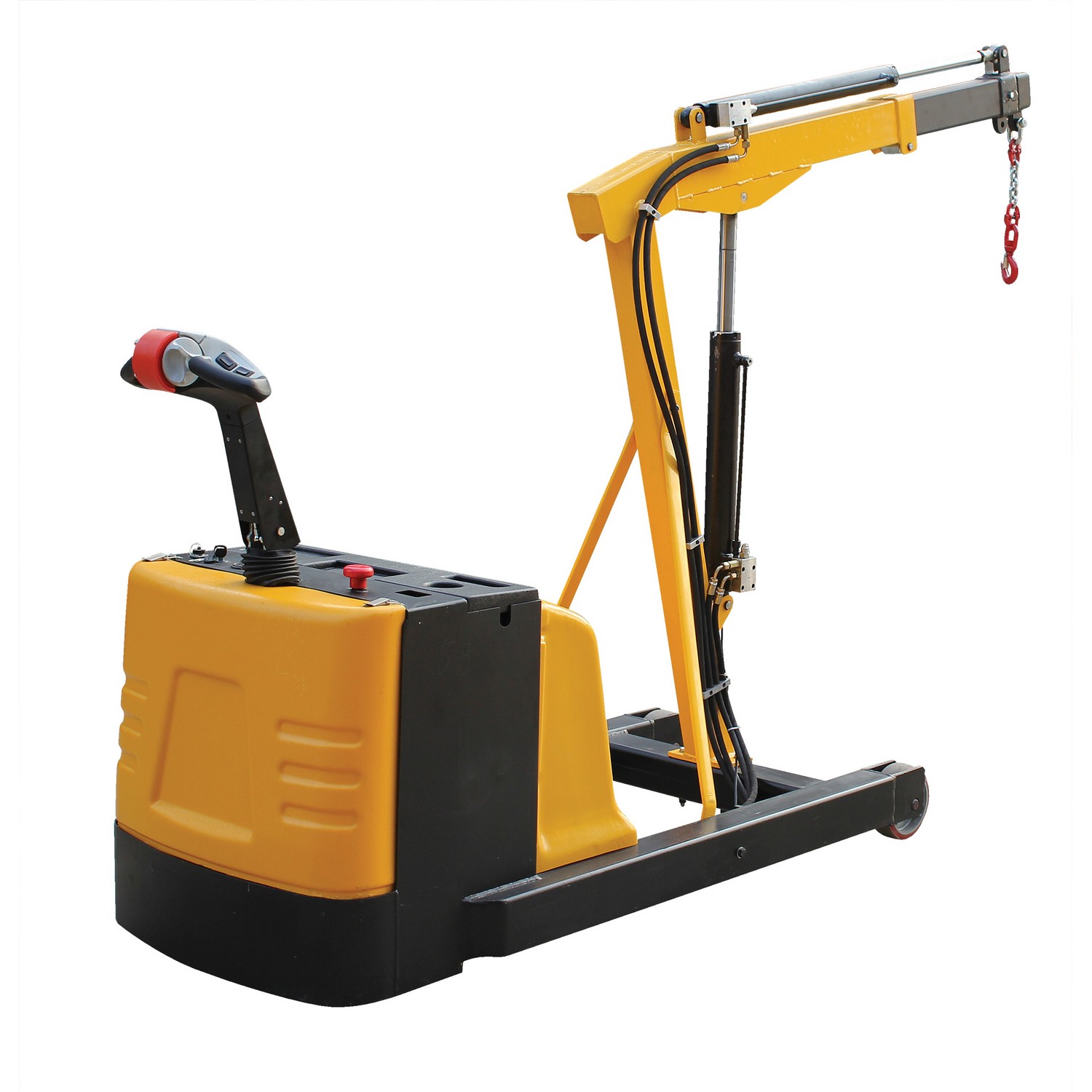

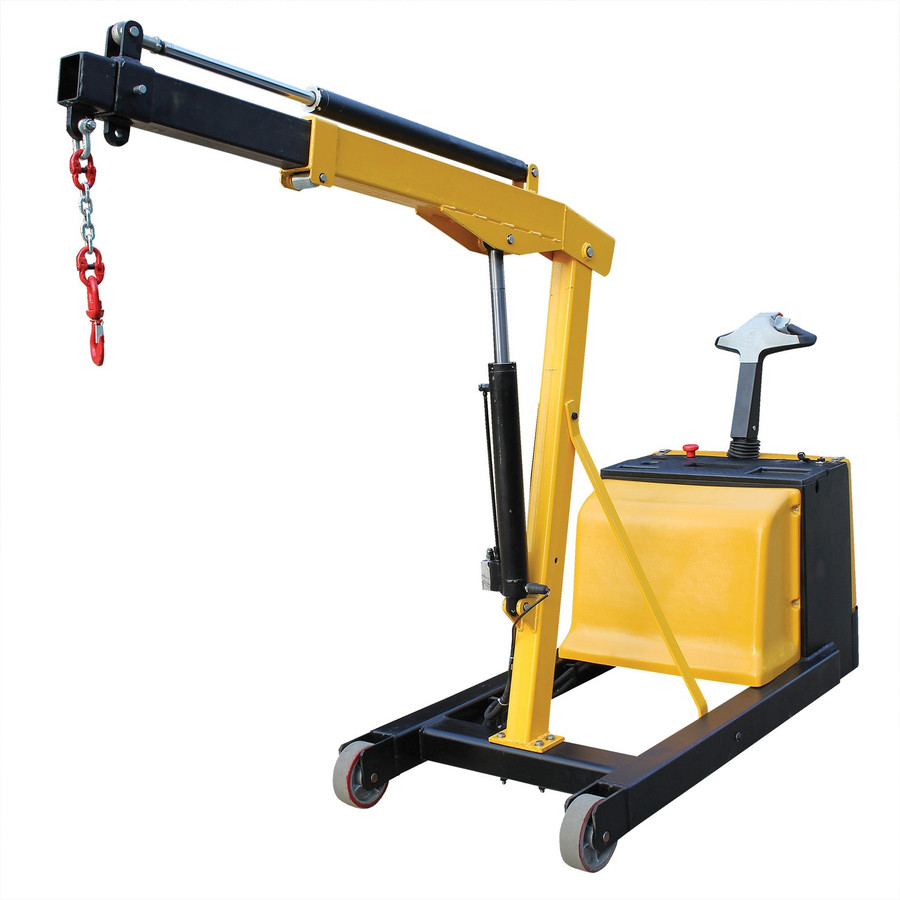

The Vestil VESEPFC-CB-15 is a fully powered counterbalance floor crane designed to move heavy loads with minimal effort. Built for shop environments, this 1.5-ton-capacity unit uses a 24V DC drive and lift system to provide controlled hoisting, in/out boom operation, and steady travel. Its stand-up, counterbalance design supports quick, precise positioning while reducing operator fatigue, and the rugged steel construction is finished in a high-visibility yellow for easy site recognition. An integrated emergency reverse feature and an electromagnetic disc brake with a dead-man mechanism enhance control and safety during operation, helping to prevent unintended movement when the handle is released. The crane is powered by two 12V batteries and includes an onboard charger and battery level gauge for convenient, on-site charging and monitoring.
Key craftsmanship and functional characteristics include fixed legs for a constant footprint, bright coloration for visibility in busy facilities, and a rigid hook with a safety latch to secure loads. With its 105-inch maximum extended height and a 44-1/4 to 97-inch lift range, the unit offers substantial reach while maintaining load stability during lifting and lowering. Performance data indicates a modest travel speed under load and without load, underscoring predictable handling when maneuvering heavy items through confined spaces. This model is well-suited for lifting, hoisting, and positioning heavy parts or assemblies in manufacturing floors, maintenance bays, or loading zones where a stand-up crane is preferred over pedestal configurations.
Considerations for use include ensuring the specified capacity (1,500 lb retracted, 800 lb extended, 400 lb manually extended) is matched to the workpiece, understanding battery needs (two 12V batteries with a 24V/12A charger and 115V AC power for charging), and planning for a maximum vertical reach of 105 inches. Regular inspection of the line, hook safety latch, and battery condition will help maintain consistent performance. This unit ships as a single crane per package and is designed for facilities needing a compact, stand-up powered crane to streamline material handling tasks.
Features:
- Counter balance design for heavy lifting
- Fixed legs for constant size
- Brightly colored for visibility
- Stand up user design for quick action
- DC powered lifting and travel for efficient operation
- Two batteries to extend service intervals
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity Retracted (lb.):
- 1,500
- Uniform Capacity Battery Extended (lb.):
- 800
- Uniform Capacity Manually Extended (lb.):
- 400
- Maximum Height - Crane Extended (in.):
- 105
- Lift Range - Retracted (in.):
- 44-1/4
- Lift Range - Extended (in.):
- 97
- Drive Motor:
- DC24V / 0.7KW
- Lift Motor:
- DC24V / 2KW
- Battery (qty.):
- 2
- Battery Type:
- 12V
- Battery Charger:
- 24V / 12 amp
- Battery Charger Power Cord:
- 115V AC
- Minimum Service Per Charge (hrs.):
- 8
- Lift Speed w/o Load (sec):
- 0.7
- Lift Speed w/ Load (sec):
- 0.5
- Lower down speed w/o load (sec):
- 0.25
- Lower down speed w/ Load (sec):
- 0.75
- Travel speed w/o load (mph):
- 2.8
- Travel speed w/load (mph):
- 2.18
- Package Size:
- Each
