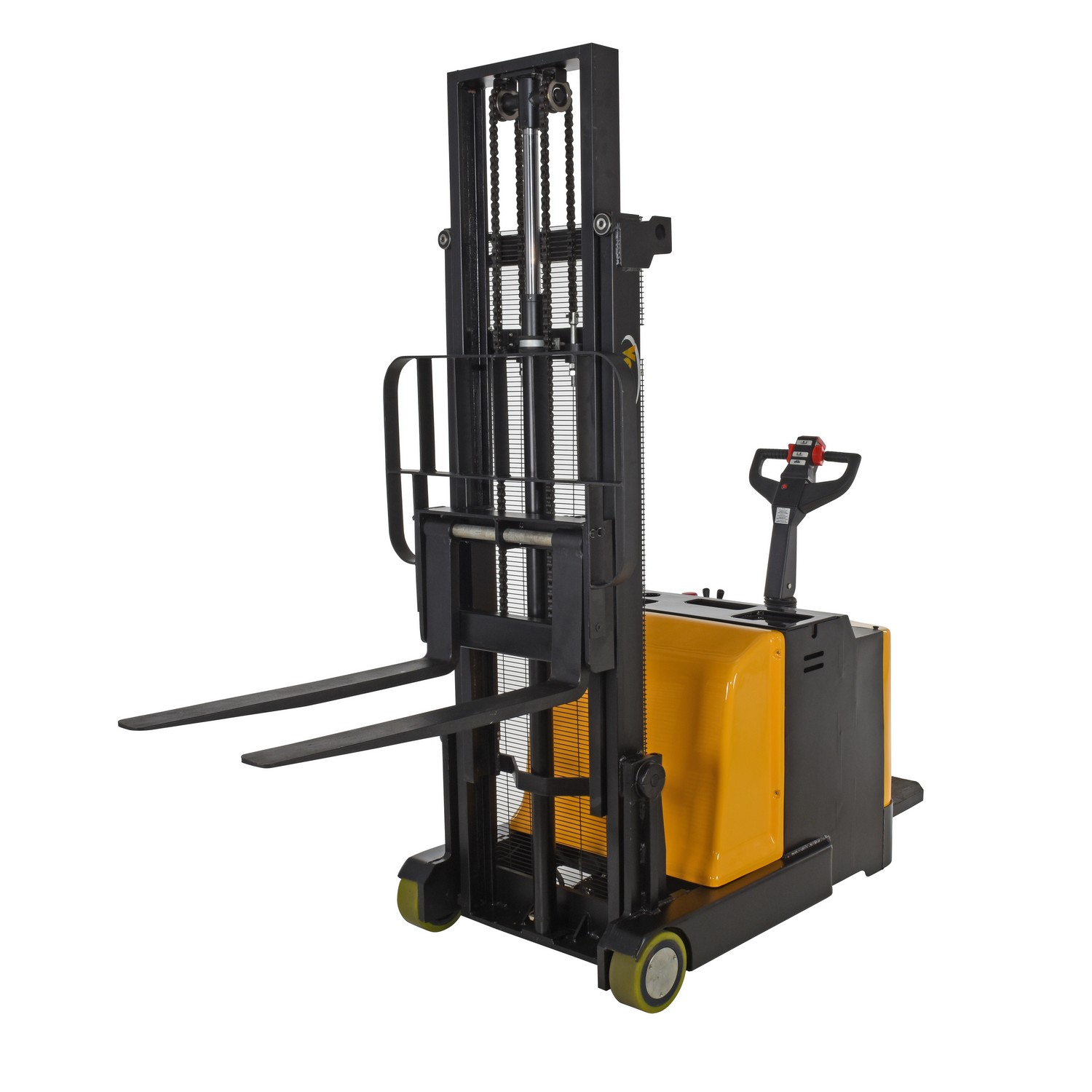

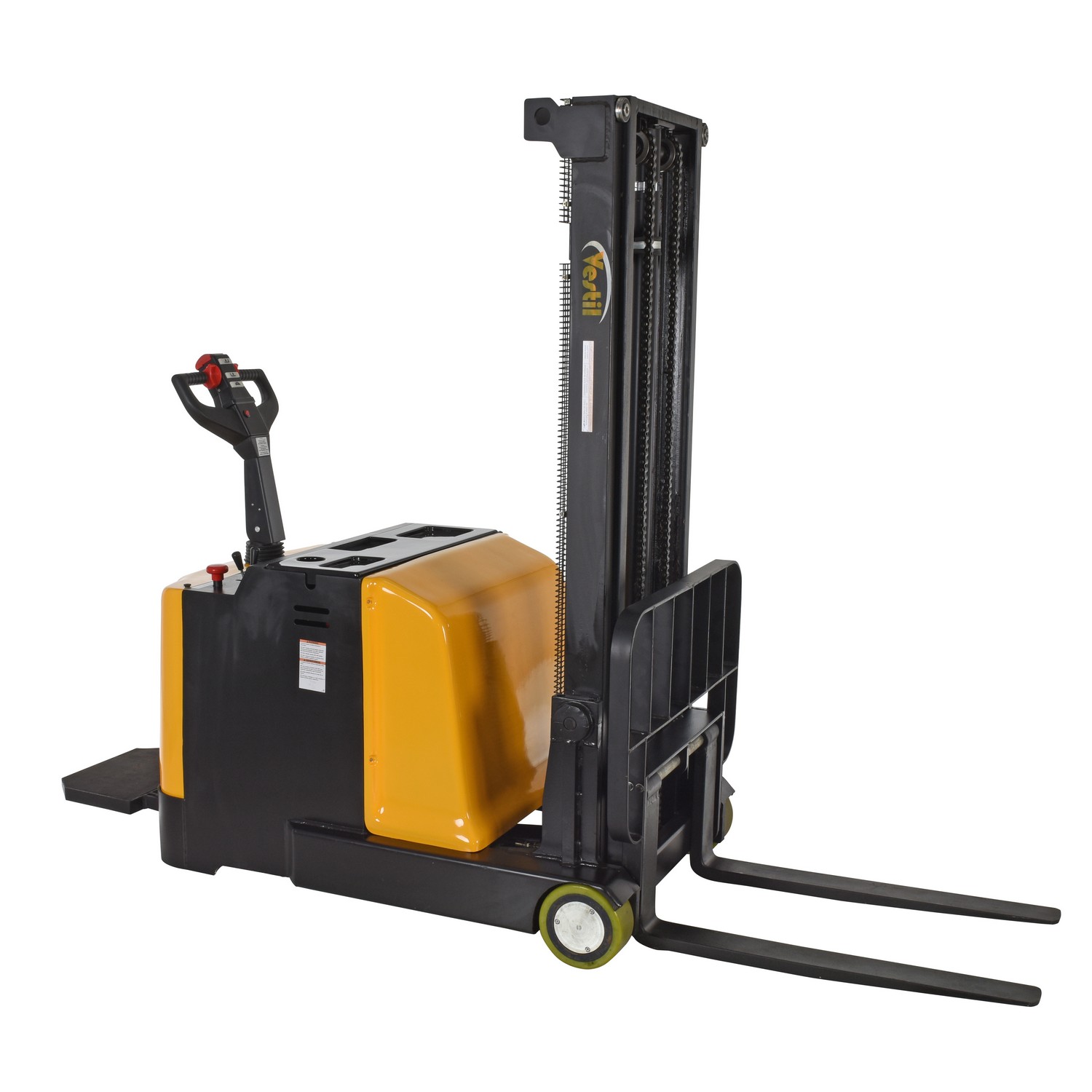

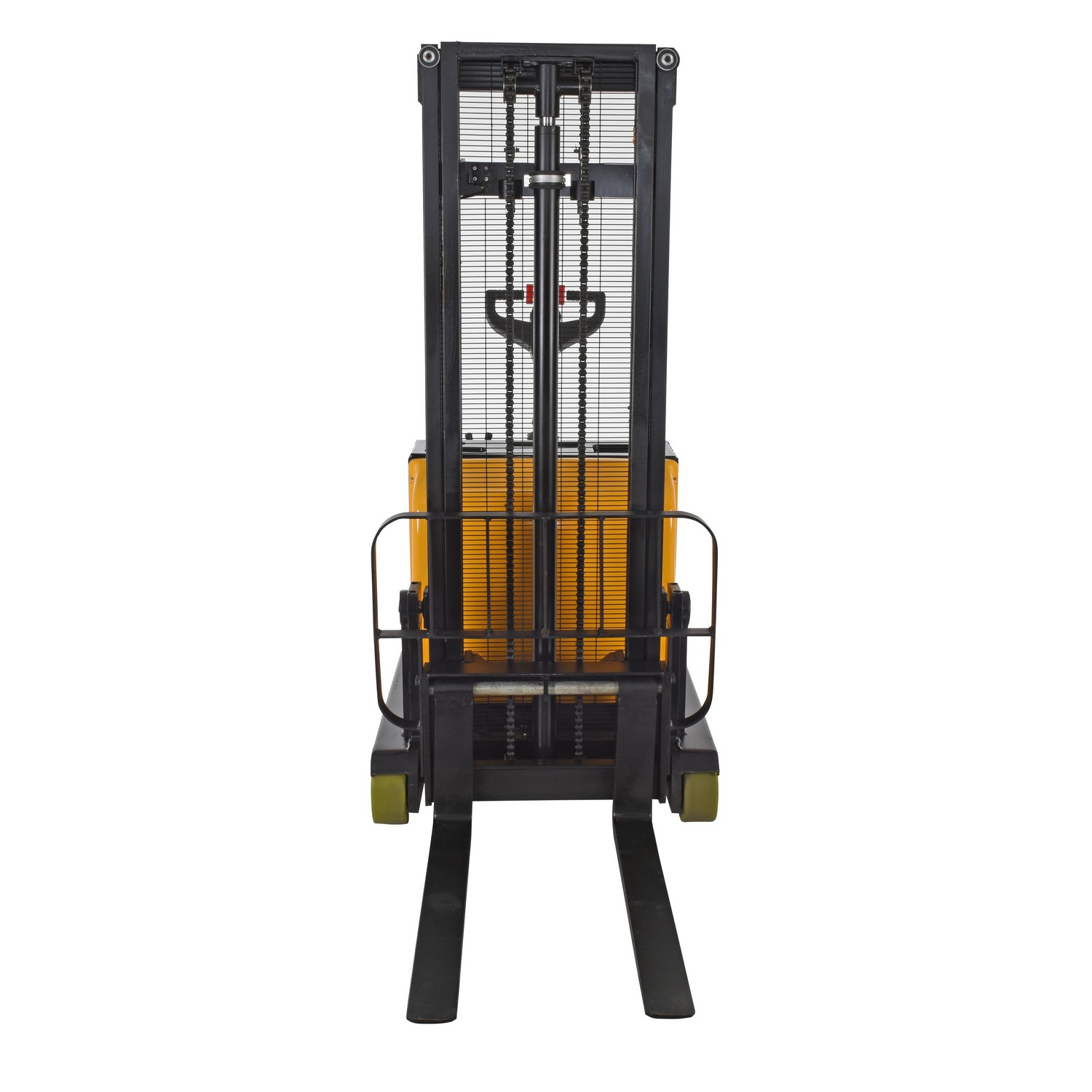

The Vestil S-2CB-118 is a powered, counter-balanced lift designed to assist with die loading, machine feeding, and loading or unloading trucks. It features a high-torque drive and lift motor, plus an ergonomic handle that offers easy throttle control with infinite forward/reverse speed adjustment, lift/lower operations, an emergency reverse function, and a horn for situational awareness. An electromagnetic disc brake with automatic dead-man engagement enhances safety, activating when the handle is released. The unit includes four 6V batteries wired to a 24V system, a built-in battery charger, and a battery level indicator, enabling operation at full charge for several hours. Stacking wheels facilitate smooth movement, while adjustable forks accommodate different pallet widths and configurations. Maintenance-friendly access to the battery compartment supports straightforward servicing, extending equipment life and uptime in busy loading environments.
In practice, this lift is well-suited for facilities needing reliable assistance with repetitive lift tasks at varying heights. With a 2,000 lb capacity from 0 to 62 inches and 1,000 lb capacity from 62 to 118 inches, it accommodates a range of palletized loads. The telescopic mast and 36-1/4 inch fork length help adapt to diverse workspace layouts, and a 19-inch load center supports stable, controlled handling of heavy items. A raised height of up to 118 inches expands reach for high-level tasks, while a 1-1/2 inch ground clearance keeps the platform above floor obstacles during movement.
As a walk-behind, battery-powered solution, it offers practical advantages for daily use in industrial settings where frequent repositioning is expected. Battery and charger placement, along with the straightforward control layout, support serviceability and quick turnaround between jobs. This model comes ready for immediate operation with its integrated battery system, and its adjustable forks enable compatibility with a range of pallet widths without needing separate adapters.
Features:
- Simple controls for quick movement
- Walk-behind style for ergonomic posture
- Ability to raise to high levels of workspace
- Easily traverse rough terrain
- Telescopic mast for versatile height adjustments
- 4-battery system (4x 6V) with 24V drive and lift motors
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity at 0" to 62" Raised Height (lb.):
- 2,000
- Uniform Capacity at 62" to 118" Raised Height (lb.):
- 1,000
- Fork Length (in.):
- 36-1/4
- Fork Width Minimum/Maximum (in.):
- 8-3/8 to 23-1/4
- Individual Fork Width (in.):
- 4
- Lowered Height (in.):
- 2
- Raised Height (in.):
- 118
- Drive Motor:
- 24V
- Lift Motor:
- 24V
- Battery Quantity/Volts:
- (4) 6V
- Battery Charger:
- 120V Input, 24V/12 amp
- Operation at Full Charge (hrs.):
- 3-4
- Operation at Full Charge when Used Intermittently (hrs.):
- 8
- Platform Ground Clearance (in.):
- 1-1/2
- Load Center (in.):
- 19
- Mast Style:
- Telescopic
- Lift Speed (Inches Per Seconds):
- 4.2/sec
- Package Size:
- Each
