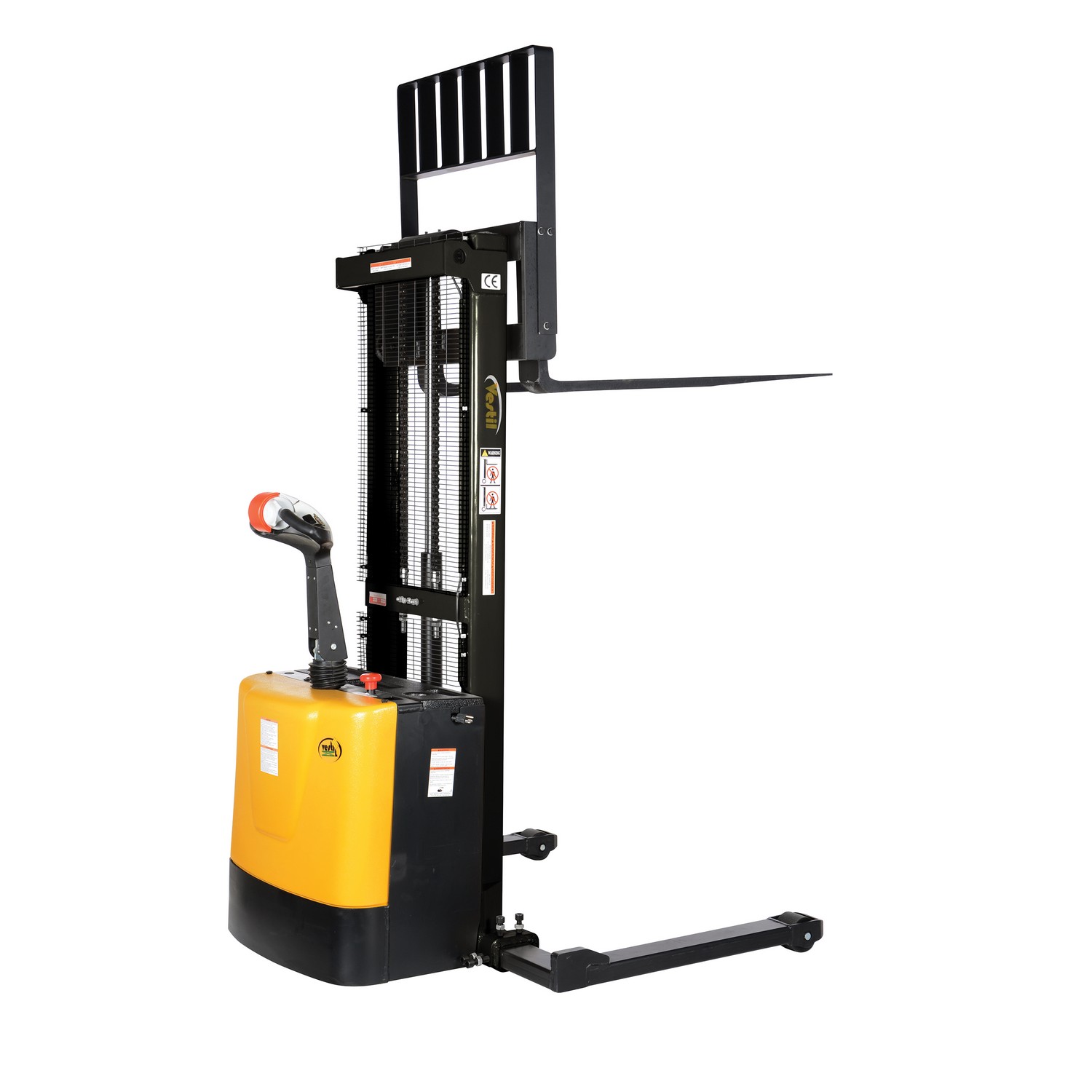

The Vestil S-62-AA is an electric-powered pallet stacker designed to move loads quickly and with reduced manual effort in warehouse settings. It combines powered lift and powered drive to transport pallets to the desired height and location, supporting tasks that require lifting to up to 62 inches and traveling across facilities on a ready-to-operate stacker platform. The unit uses a high torque drive and lift motor along with an electromagnetic disc brake featuring an automatic dead-man function, providing controlled operation and a safety mechanism that stops movement when the handle is released. A unique safety feature is the emergency reverse function on the operator belly switch, which reverses direction away from the operator for up to five seconds unless reset, helping protect workers during abnormal circumstances. The stacker relies on a lead-acid deep-cycle battery with an integral charger and a battery level gauge to monitor power status during shifts.
Built for practical, real-world use, the S-62-AA runs on poly-on-steel wheels that offer smoother movement of loads and a stable ride across warehouse floors. The control interface includes fingertip raise and lower buttons and an intuitive throttle for forward and reverse travel, enabling precise positioning without frequent hand-switching or reaching. The machine is configured to handle standard pallet dimensions with a fork length of 42 inches and adjustable fork widths from 4 inches to 4 inches plus spacing, accommodating typical pallet footprints. With a raised height capability of 62 inches and a lowered height of 2-1/4 inches, it supports stacking toward ceiling-level or tight dock areas while preserving stability at lower heights. The S-62-AA is supplied as a ready-to-use stacker, with a specification profile that includes two drive wheels, two steering/load wheels, and stabilizer wheels to balance loads and improve handling during loading and unloading operations. This model is best suited for facilities needing frequent, medium-heavy pallet handling where powered lift and drive reduce operator effort and increase throughput while preserving control and safety during operation.
Features:
- Fully-powered pallet truck for quick pallet movement
- Fingertip raise and lower controls
- Safety belly reverse button for improved safety
- Easy throttle for forward and reverse operation
- Raised height to 62" with 2000 lb capacity
- Adjustable fork width and standard 42" fork length
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity at 0" to 62" Raised Height (lb.):
- 2000
- Fork Width Min./Max. (in.):
- 8 - 26-3/4
- Leg Width Min./Max. (in.):
- 48 - 58
- Fork Length (in.):
- 42
- Lowered Height (in.):
- 2-1/4
- Raised Height (in.):
- 62
- Battery:
- (2) 12V
- Drive Motor:
- DC 24V
- Lift Motor:
- DC 24V
- Operation at Full Charge (hrs.):
- 3-4
- Operation at Full Charge when Used Intermittently (hrs.):
- 8
- Individual Fork Width (in.):
- 4
- Drive Wheel Quantity/Diameter/Width (in.):
- (1) 10x3-3/8
- Front Wheel Quantity/Diameter/Width (in.):
- (2) 4x2.9
- Stabilizer Wheel Quantity/Diameter/Width (in.):
- (2) 3x1.4
- Wheel Material:
- Poly-on-Steel
- Load Center (in.):
- 21
- Package Size:
- Each
