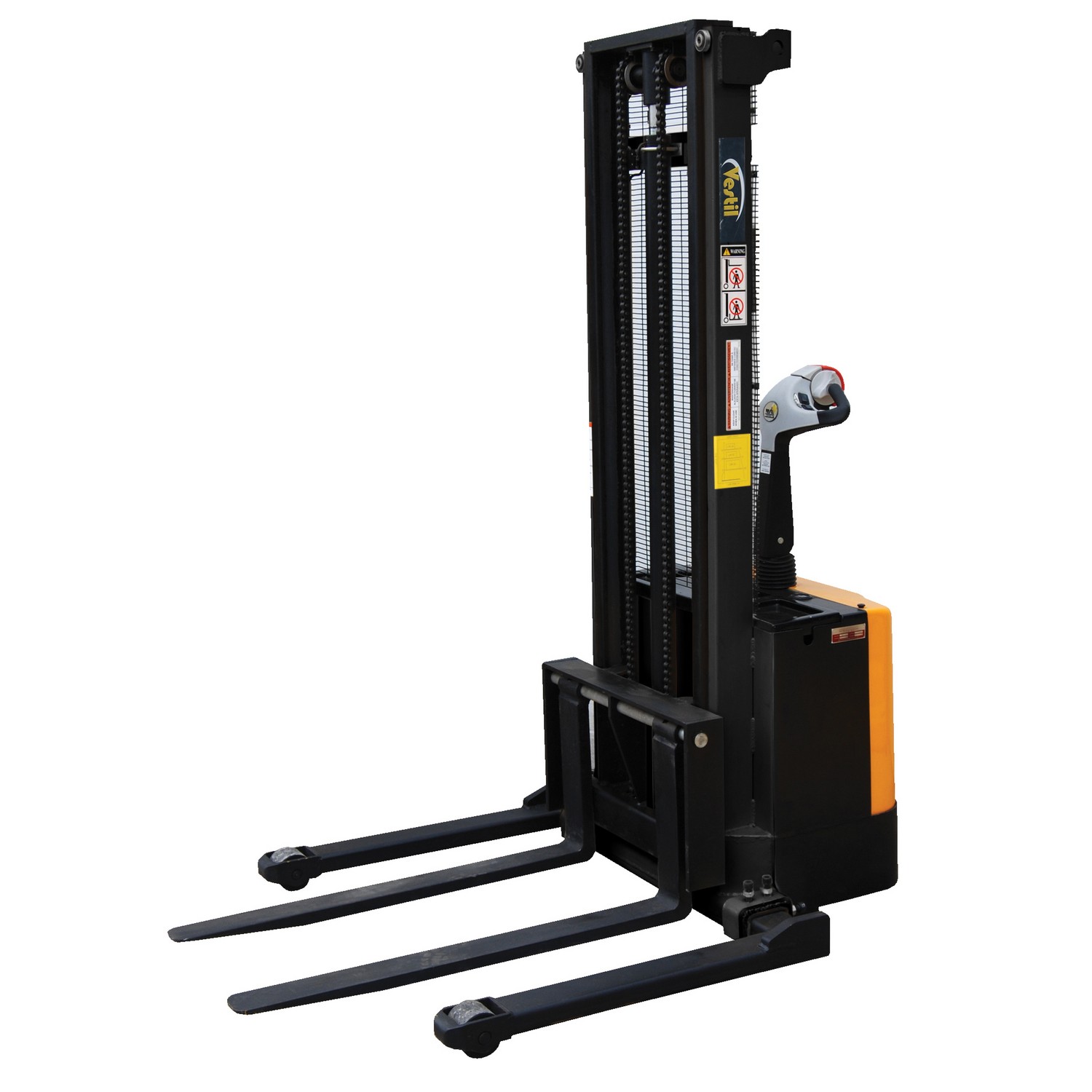

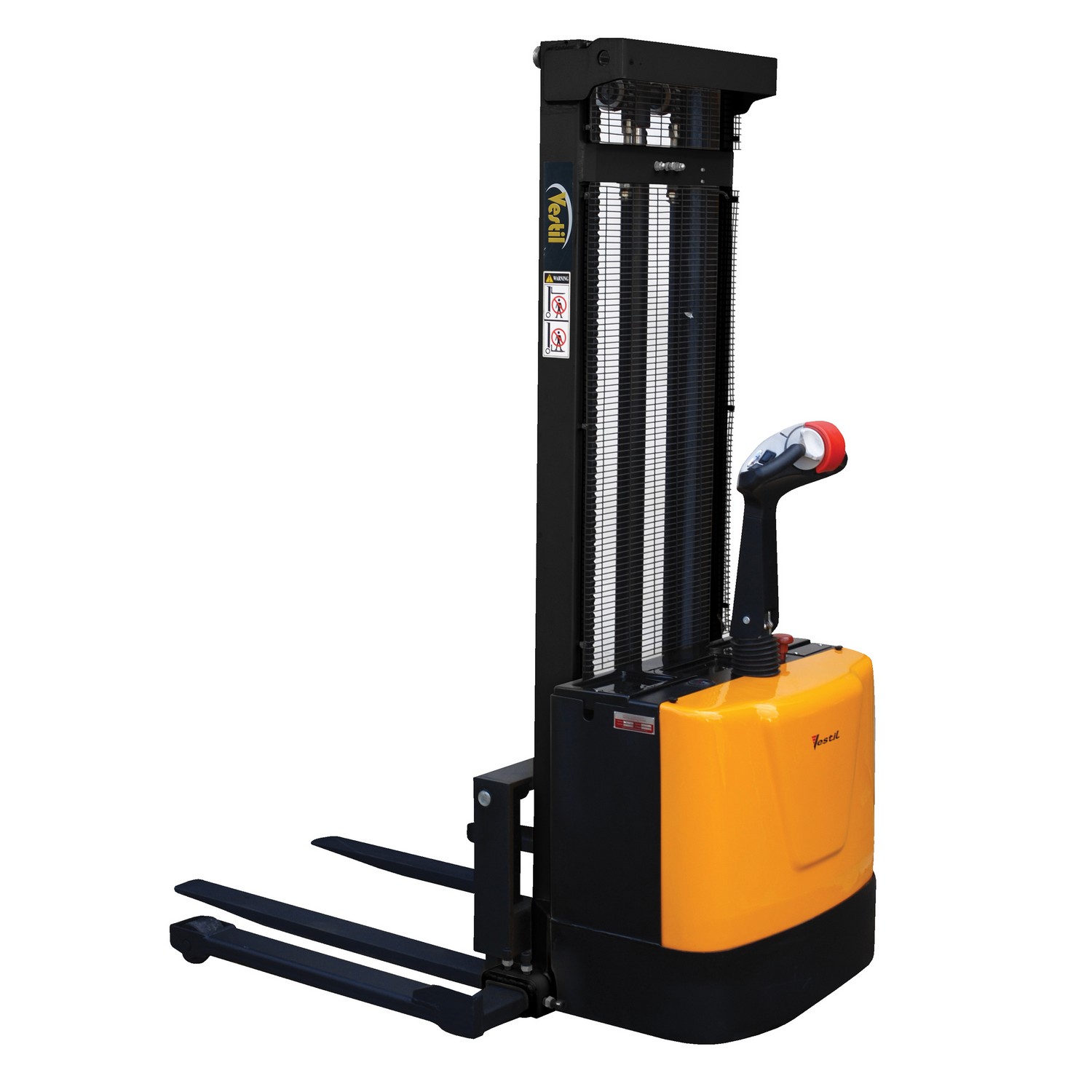

The Vestil S-118-AA Adjust Powered Lift Stacker is a fully powered electric stacking solution designed to move loads quickly and with reduced operator effort in warehouse environments. It combines a high-torque drive motor with a lift motor to provide both transportation and vertical loading capability, enabling handling of heavy loads up to 2000 lb when raised from 0" to 62" and 1500 lb from 62" to 118". The unit features an ergonomic handle with a throttle and lift/lower controls, plus a proprietary safety-enhancing emergency reverse function. When activated, the emergency reverse belly switch reverses direction to move the unit away from the operator, with automatic safety circuitry that requires a reset after prolonged operation, helping to prevent unintended movement.
Construction emphasizes durability and operator protection. The stacker runs on poly-on-steel drive and load wheels and is built from steel with a two-battery system (two 12V batteries) to support continuous operation. An electromagnetic disc brake with an automatic dead-man feature provides stopping power and reduces the risk of uncontrolled motion when the control handle is released. A built-in integral battery charger and a battery level gauge simplify maintenance and planning of charging cycles for daily material-handling tasks.
This model is suited for applications requiring internal material transport and vertical load handling in warehouses, manufacturing floors, or distribution centers. It supports load widths from 8 to 26-3/4 inches and leg widths from 48 to 58 inches, with fork dimensions of 42 inches in length and 4 inches individual fork width. The unit raises up to 118 inches and has a 21-inch load center, making it compatible with a variety of palletized and non-palletized loads. Depending on intermittent use, expect shorter runtime on a full charge and longer runtimes with lighter or shorter duty cycles. Proper maintenance includes attention to battery health, wiring connections, and brake function to ensure safe operation over time.
Features:
- High-torque drive and lift motor for heavy-duty lifting
- Ergonomic handle with easy-to-operate throttle
- Emergency reverse belly switch for quick halting and direction change
- Robust operator protection and durable steel construction
- Dual 12V battery system with DC drive and lift motors
- 118 in raised height with 2000 lb capacity (0–62 in); 1500 lb (62–118 in)
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity at 0" to 62" Raised Height (lb.):
- 2000
- Uniform Capacity at 62" to 118" Raised Height (lb.):
- 1500
- Fork Width Min./Max. (in.):
- 8 - 26-3/4
- Leg Width Min./Max. (in.):
- 48 - 58
- Fork Length (in.):
- 42
- Lowered Height (in.):
- 2-1/8
- Raised Height (in.):
- 118
- Battery:
- (2) 12V
- Drive Motor:
- DC 24V
- Lift Motor:
- DC 24V
- Charger:
- DC 24V
- Operation at Full Charge (hrs.):
- 3-4
- Operation at Full Charge when Used Intermittently (hrs.):
- 8
- Individual Fork Width (in.):
- 4
- Drive Wheel Quantity/Diameter/Width (in.):
- (1) 10x3
- Front Wheel Quantity/Diameter/Width (in.):
- (2) 4x2.9
- Stabilizer Wheel Quantity/Diameter/Width (in.):
- (2) 3x1-13/32
- Wheel Material:
- Poly-on-Steel
- Load Center (in.):
- 21
- Package Size:
- Each
