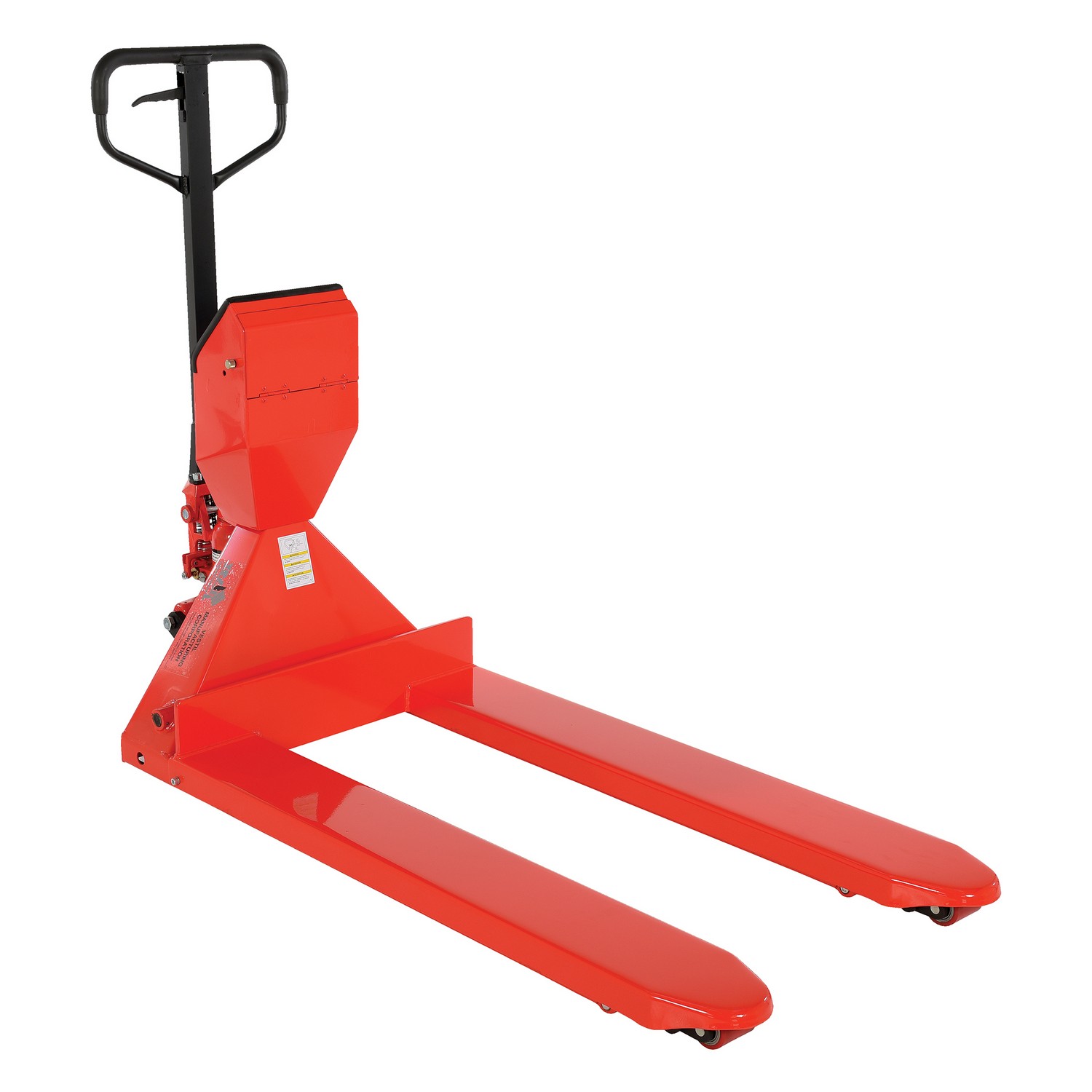

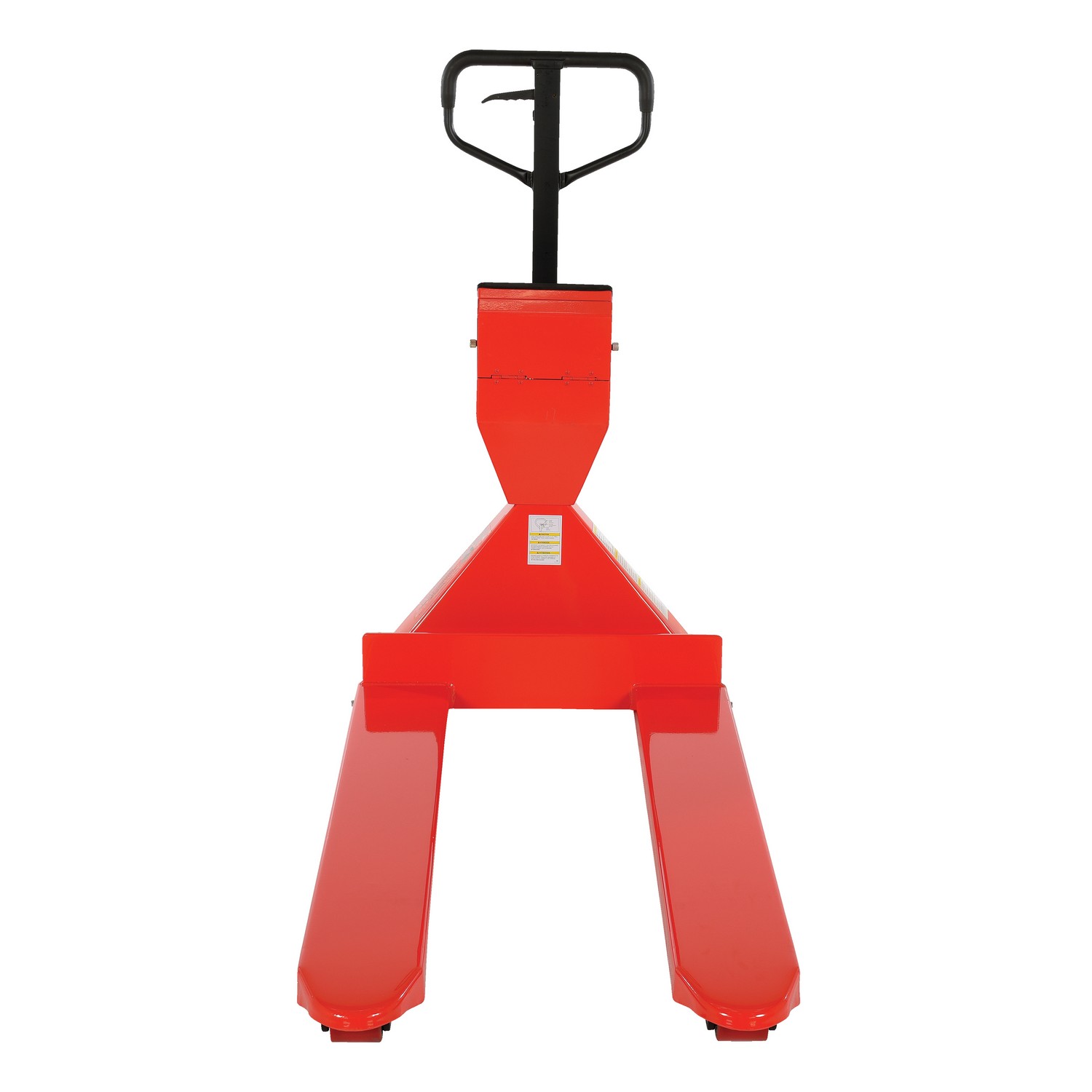

The Vestil PM-2748-SCL-LP is a pallet truck equipped with a built-in digital scale, designed to weigh loads on the spot during handling for more efficient material flow. Its heavy-duty steel frame provides the core strength needed for frequent lifting and transport of pallets, while the scale supports on-the-fly weight checks in common warehouse settings. The scale offers selectable increment resolution to match varying load sizes, and digital filtering helps dampen the effects of vibration and motion so readings stay stable as you move through aisles or batches. A battery-powered operation with an AC adapter option enables flexible use across different facilities, reducing downtime for charging or power access.
Key construction features include a 27-1/2 inch overall fork width and a 48 inch fork length, with fork thickness of 2 inches and a lowered height of 3 inches, rising to 7-1/2 inches when elevated. Steering is handled by a poly-on-steel caster with a 7-1/4 inch diameter and a 2 inch width, complemented by polyurethane load rollers sized 2-5/8 inches in width. These specifications support stable handling of loaded pallets and predictable travel across warehouse floors, including turn maneuverability with a turning radius of 180 degrees. The unit is finished in red, a common color cue for readily identifying scale-equipped handling equipment in busy facilities.
This pallet truck with integrated scale is suitable for operations requiring immediate weight verification without switching equipment or stopping to reweigh at a separate station. Consider battery life and the included AC adapter when planning shifts and charging cycles, and note the weight capacity of up to 5,000 lb for standard pallet loads. When selecting a model for your facility, verify that the overall fork dimensions and wheel configurations align with your pallets and flooring to ensure smooth, accurate weighing during routine material-handling tasks.
Features:
- Pallet truck with digital scale for on-the-spot weighing
- Heavy-duty steel construction for strength and durability
- Selectable scale increments to fit load size
- Digital filtering reduces effects of vibration and motion for accurate readings
- 5,000 lb uniform capacity
- Fork dimensions: 27-1/2 in wide, 48 in long; fork thickness 2 in
- Low profile raised height and standard steer/load rollers for smooth operation
- Color:
- Red
- Material:
- Steel
- Uniform Capacity (lb.):
- 5000
- Overall Fork Width (in.):
- 27-1/2
- Overall Fork Length (in.):
- 48
- Fork Thickness (in.):
- 2
- Lowered Height (in.):
- 3
- Raised Height (in.):
- 7-1/2
- Individual Fork Width (in.):
- 7
- Steer Caster Material:
- Poly-On-Steel
- Steer Caster Diameter (in.):
- 7-1/4
- Steer Caster Width (in.):
- 2
- Load Roller Material:
- Polyurethane
- Load Roller Diameter (in.):
- 2-1/2
- Load Roller Width (in.):
- 2-5/8
- Turning Radius (degrees):
- 180
- Battery Quantity/Type:
- (6) AA Alkaline
- Package Size:
- Each
