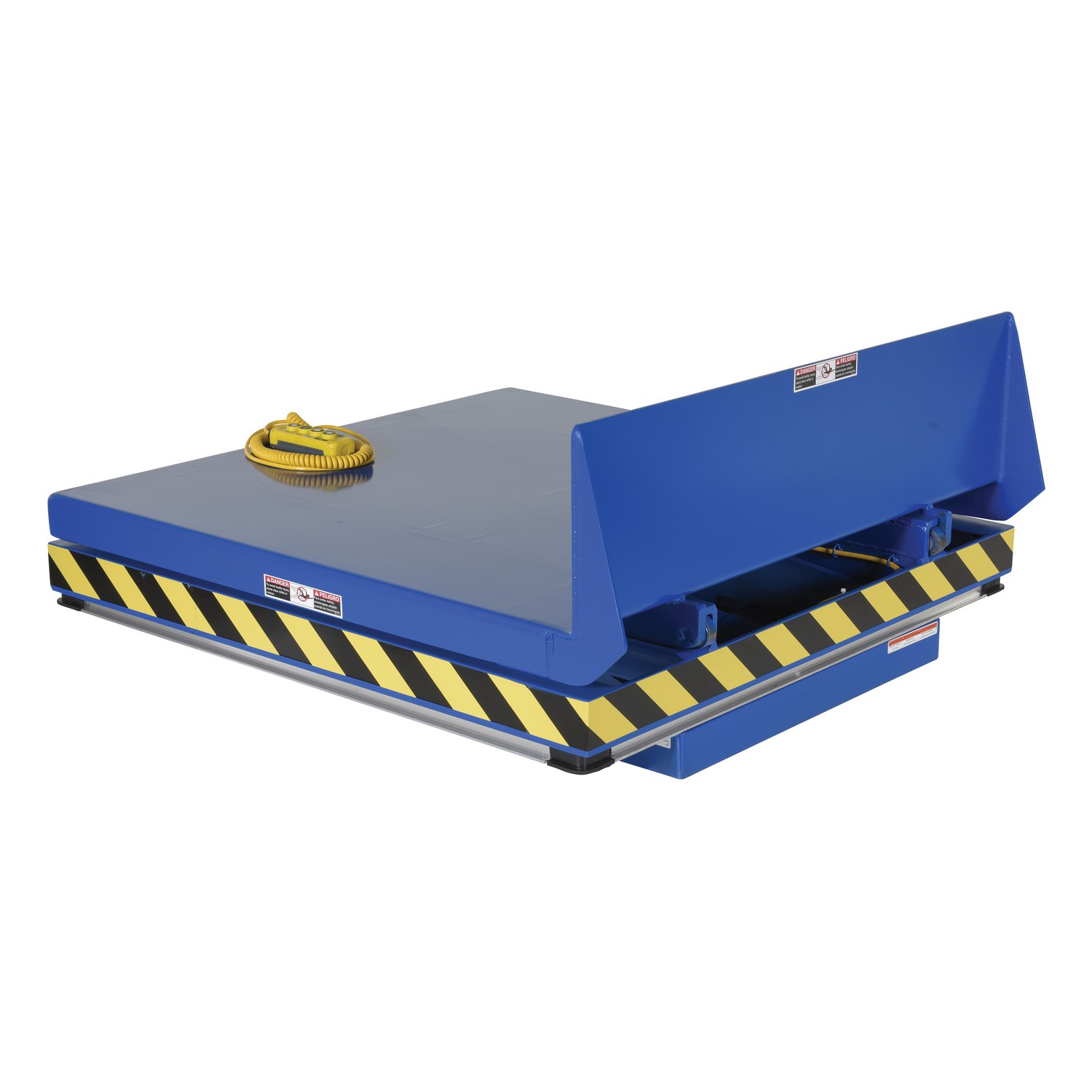

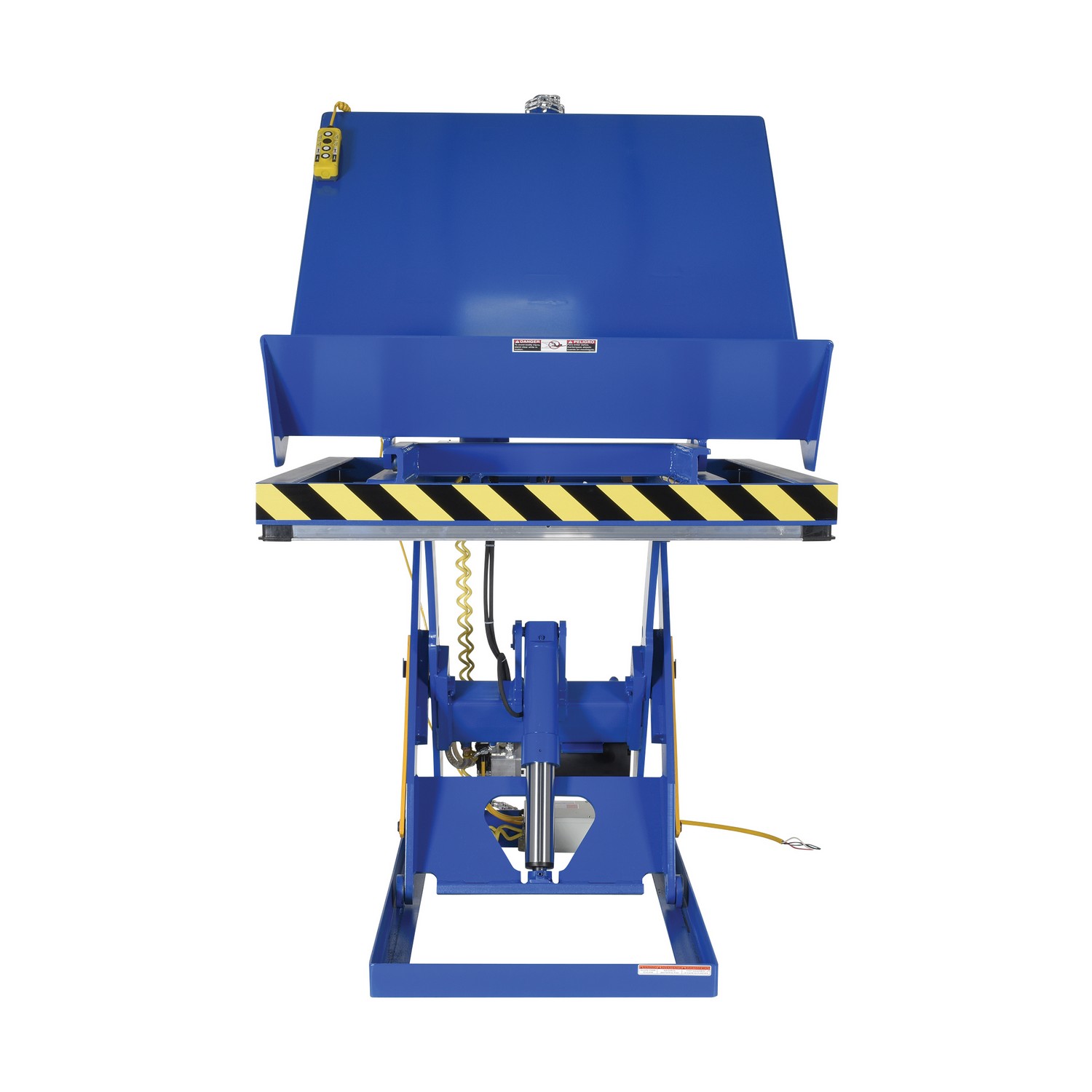

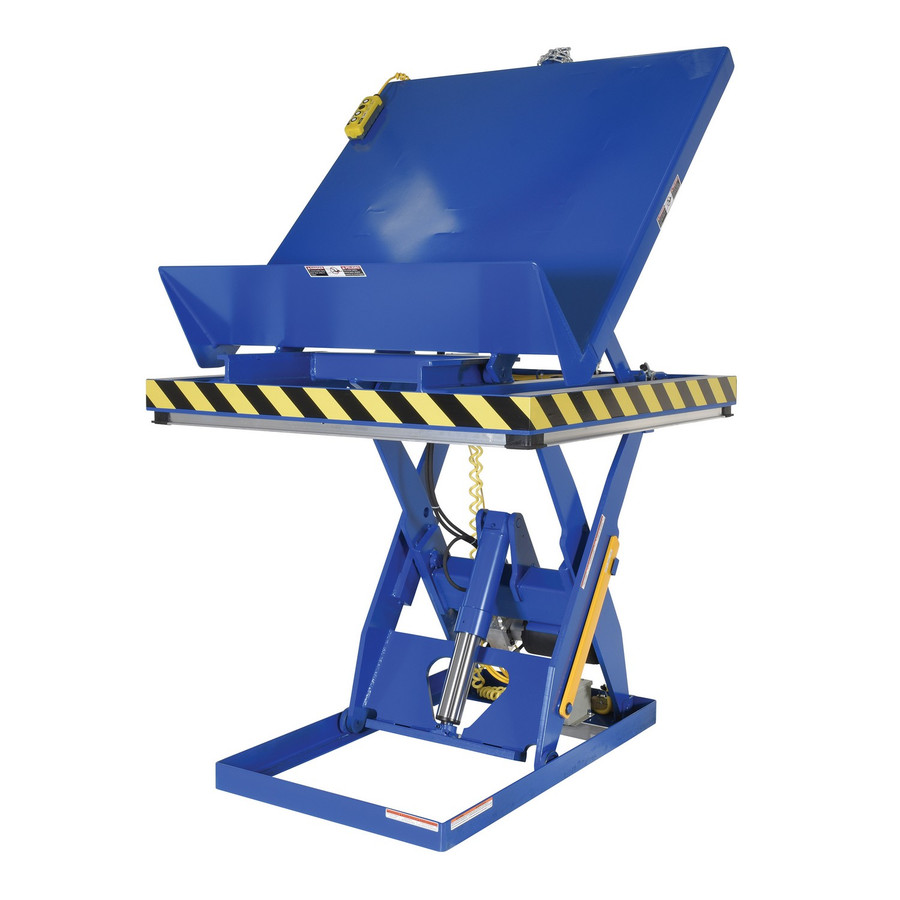

The Vestil EHLTT-4848-1-47 Lift & Tilt Scissor Table is a heavy-duty material handling solution designed to lift loads to a controlled height and tilt for easy positioning. This model supports a uniform 1,000 lb capacity and features a 48 by 48 inch platform, with a 12 inch deck lip to help retain loads during tilting. The end-tilt configuration is standard, with a side-tilt option, providing flexibility for varying workflows. A restraining chain and lip work together to keep the load in place during tilt operations, while an electric toe guard protects workers from pinch points during lowering. The system includes velocity fuses to maintain platform height in the event of hose or fitting failure, enhancing process reliability.
Construction and notable features include four push-button hand pendant controls for precise operator input, an upper limit switch to stop travel at maximum height and reduce motor wear, and a maintenance prop for stability during service. The lifting and tilting sequence times (raised/lowered 12/13 seconds for lift, 27/15 seconds for tilt) reflect designed performance, and the table operates from a 460V 3-phase power source. A 96-inch coil cord provides flexibility in installation and operator reach. Optional accordion skirting is available to enclosure considerations for both lifting and tilting operations, should your safety standards require it.
This lift-and-tilt platform is suited for facilities needing reliable vertical positioning with tilt functionality to simplify load orientation. When sizing and planning, confirm that the platform dimensions (48×48 inches), weight capacity (1,000 lb), and tilt angle (up to 45 degrees) align with your loads and workspace. Consider aisle access, electrical service availability, and the need for skirting or guarding options in your configuration. Maintain awareness of the unit’s raised height of 47 inches and lowered height of 11 inches to ensure adequate clearance in lifting cycles, and verify that installation, maintenance programming, and safety considerations follow your site procedures and electrical codes.
Features:
- Restraining chain and lip keep loads secure during tilting
- Entry-side electric toe guard protects pinch points
- Includes velocity fuse to maintain platform height
- End tilt standard; side tilt available
- 1,000 lb uniform capacity with 48 x 48 in. platform
- Blue steel construction with 12 in. deck lip
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 1000
- Lowered Height (in.):
- 11
- Raised Height (in.):
- 47
- Platform Width (in.):
- 48
- Platform Length (in.):
- 48
- Deck Lip Height (in.):
- 12
- Coil Cord Length (in.):
- 96
- End Tilt (degrees):
- 45
- Standard Voltage/Phase:
- 460/3
- Lift Raised/Lowered (Seconds):
- 12/13
- Tilt Raised/Lowered (Seconds):
- 27/15
- Package Size:
- Each
